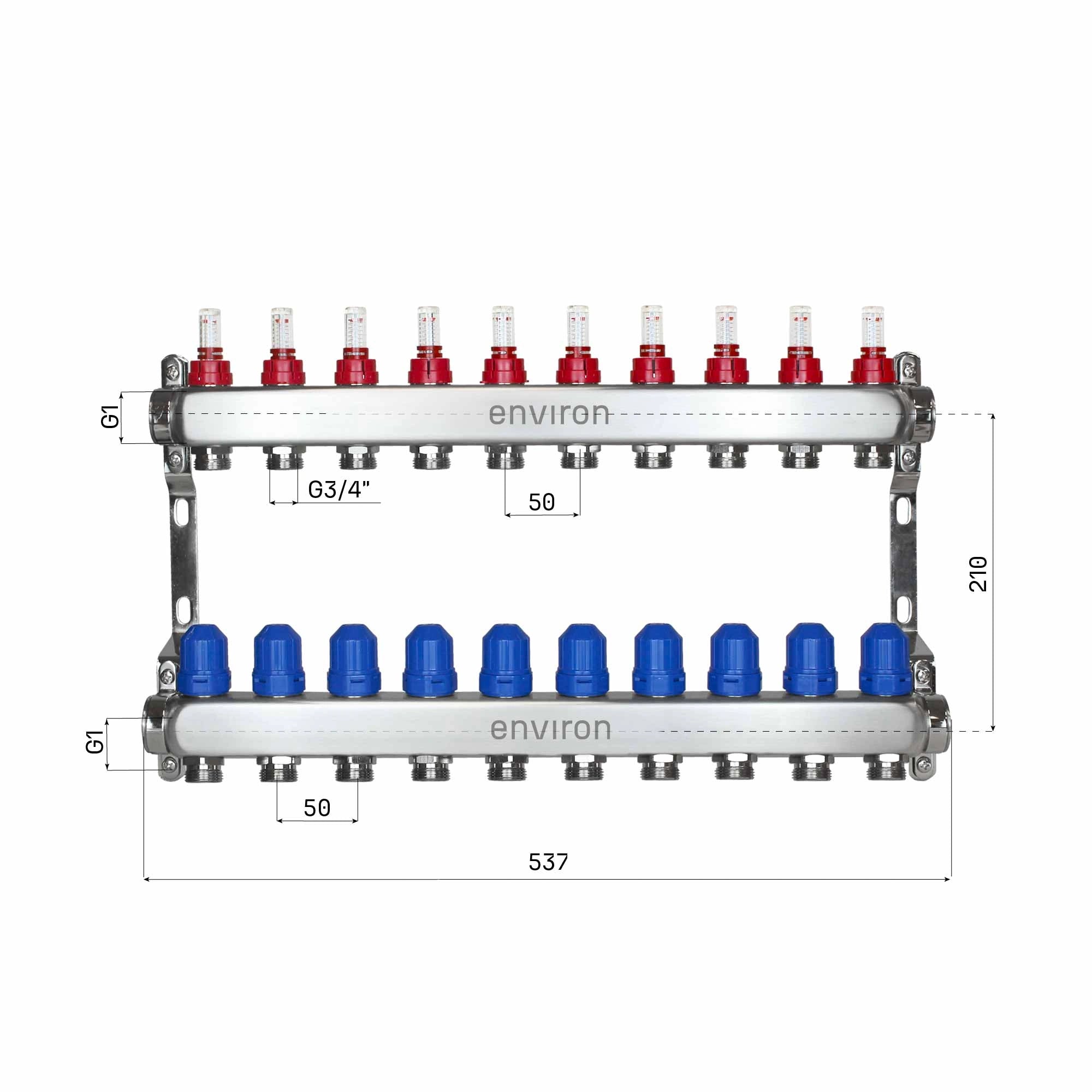

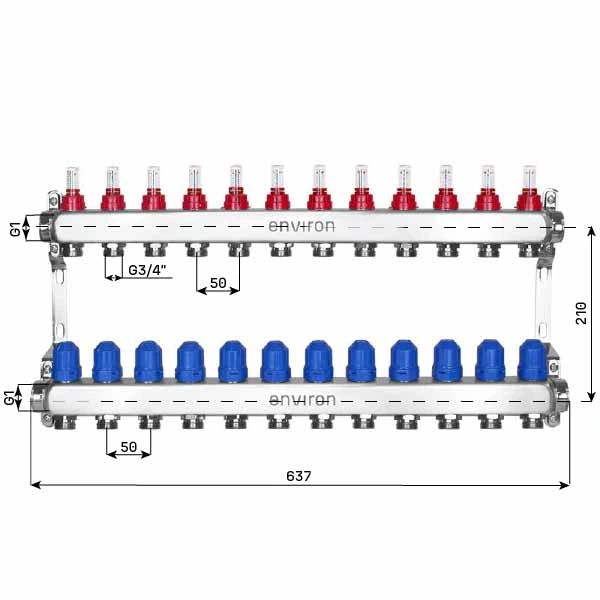

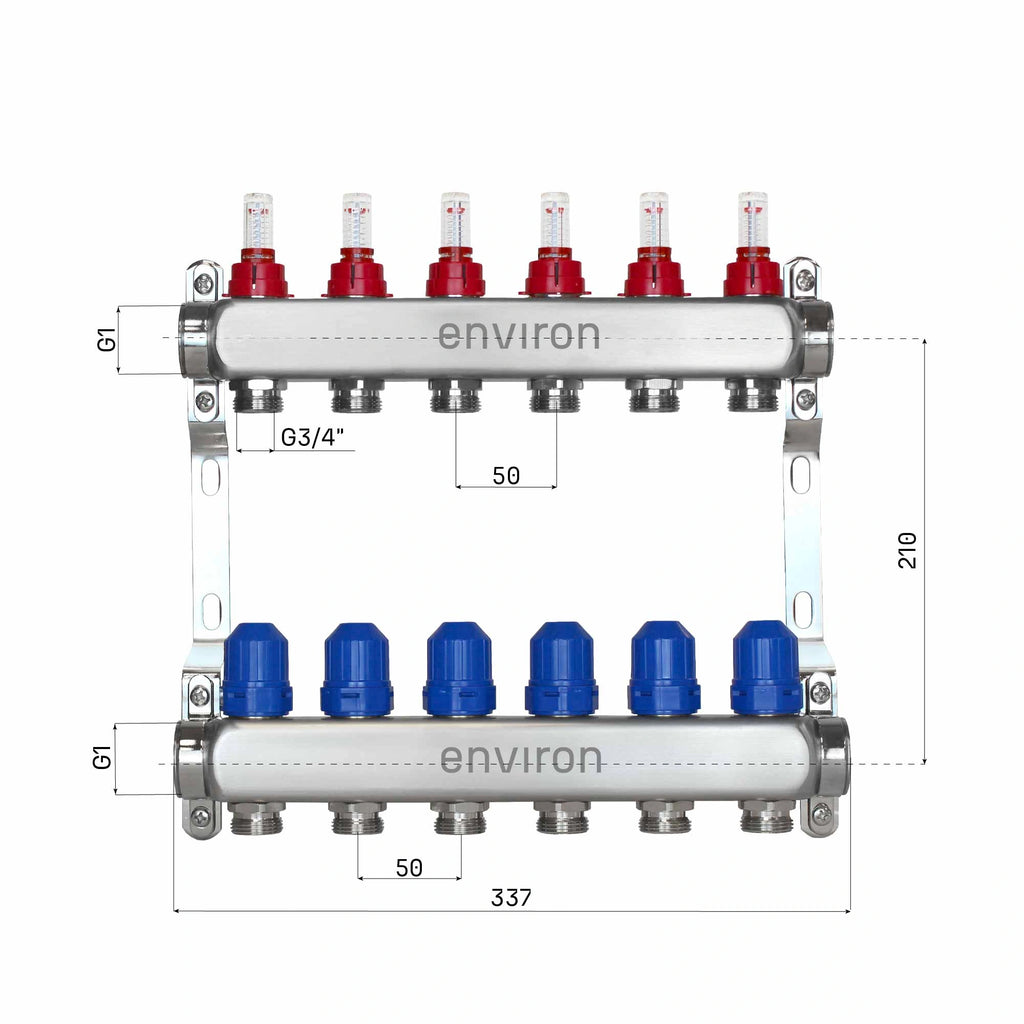

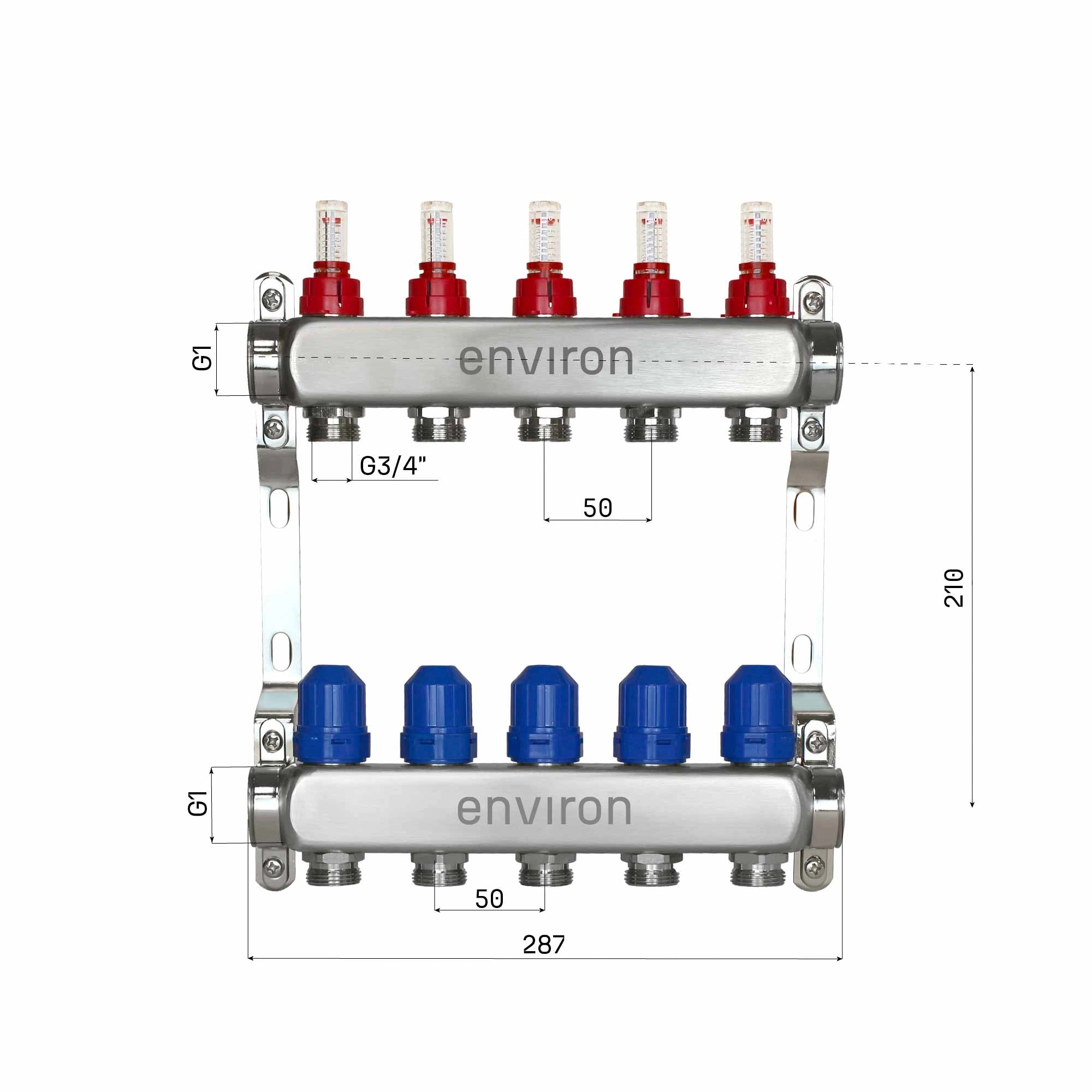

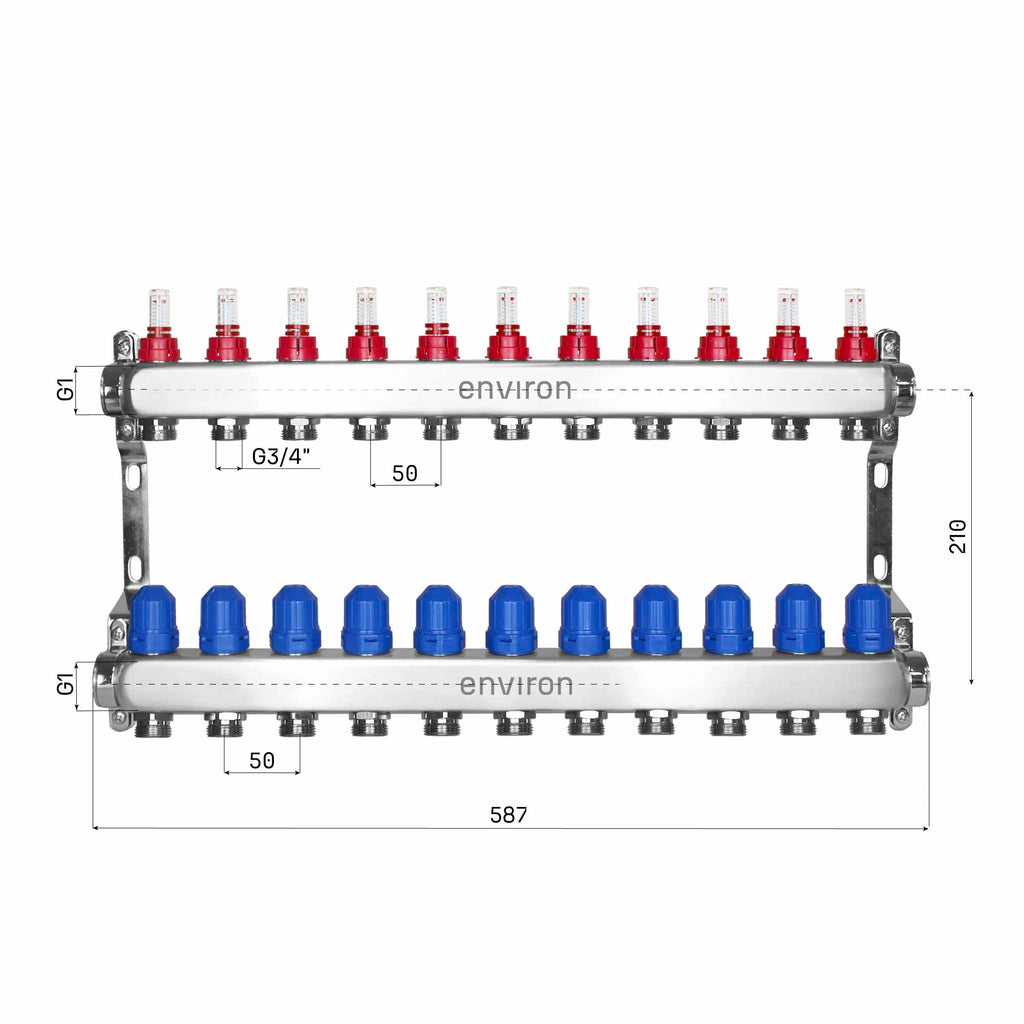

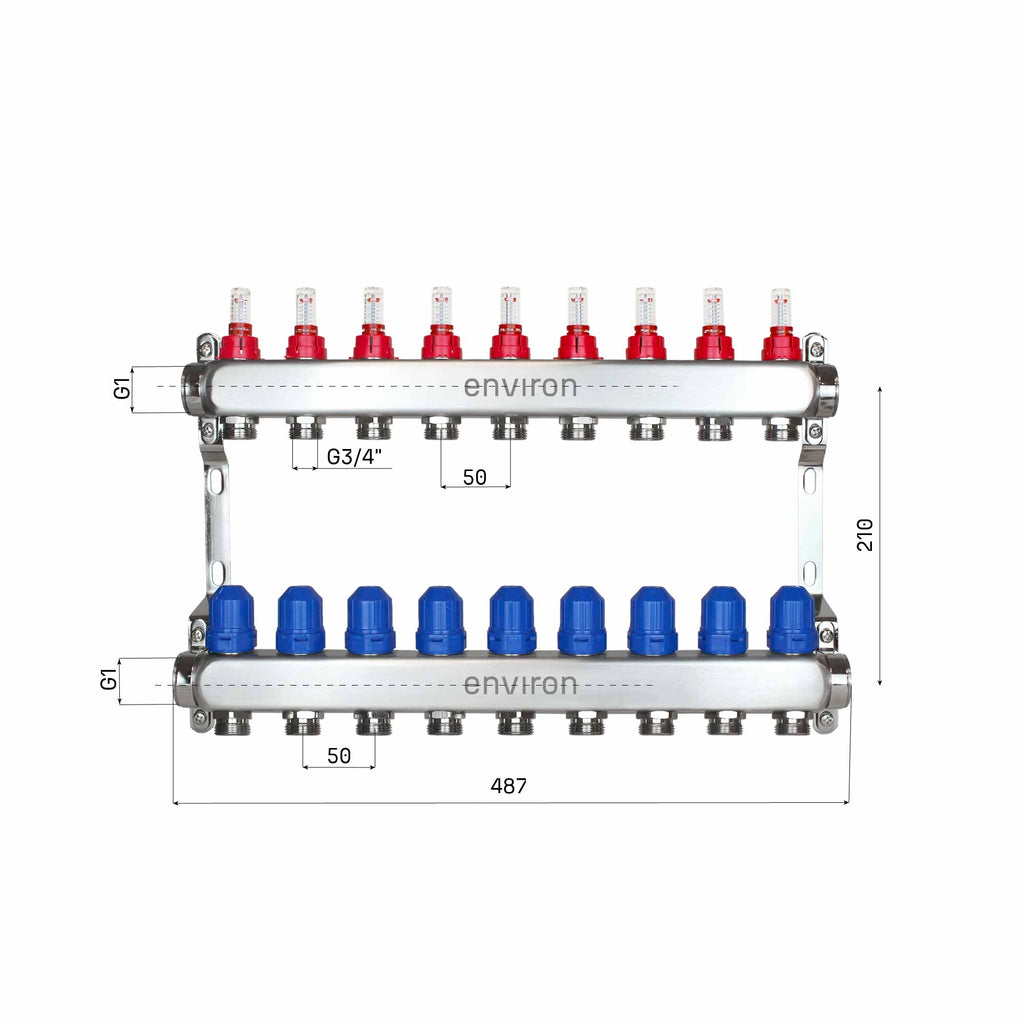

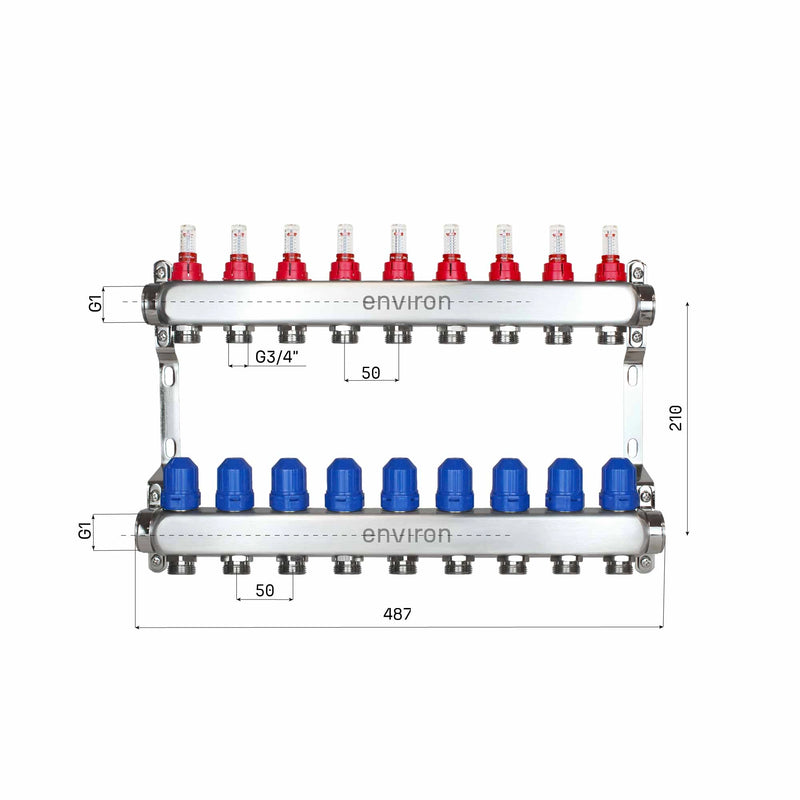

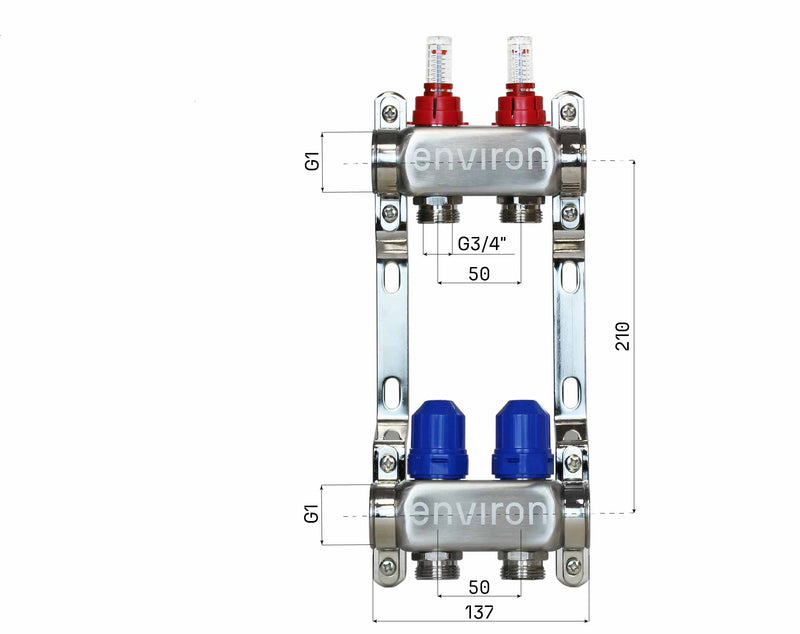

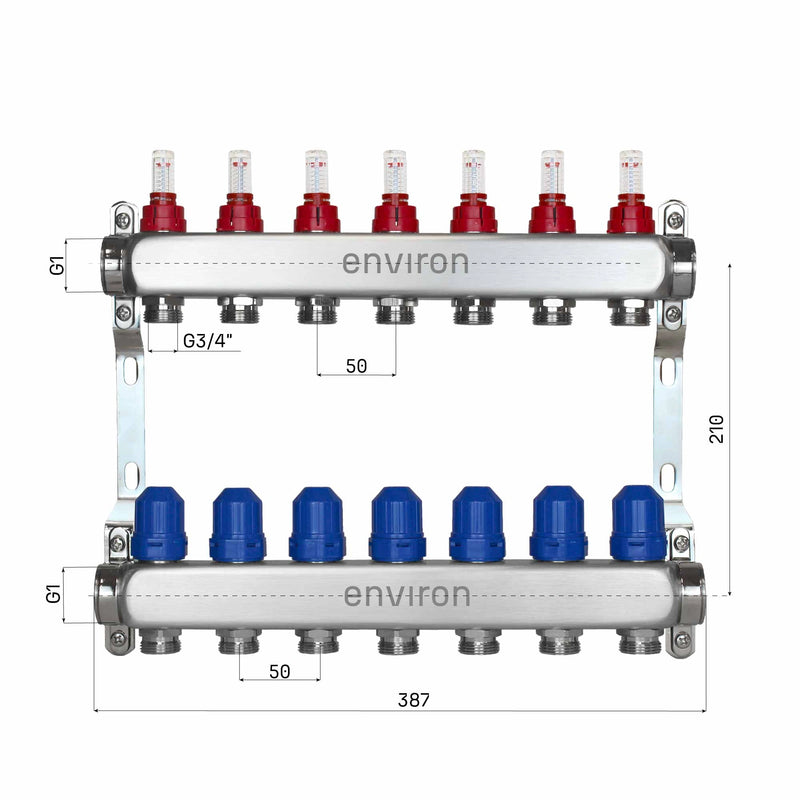

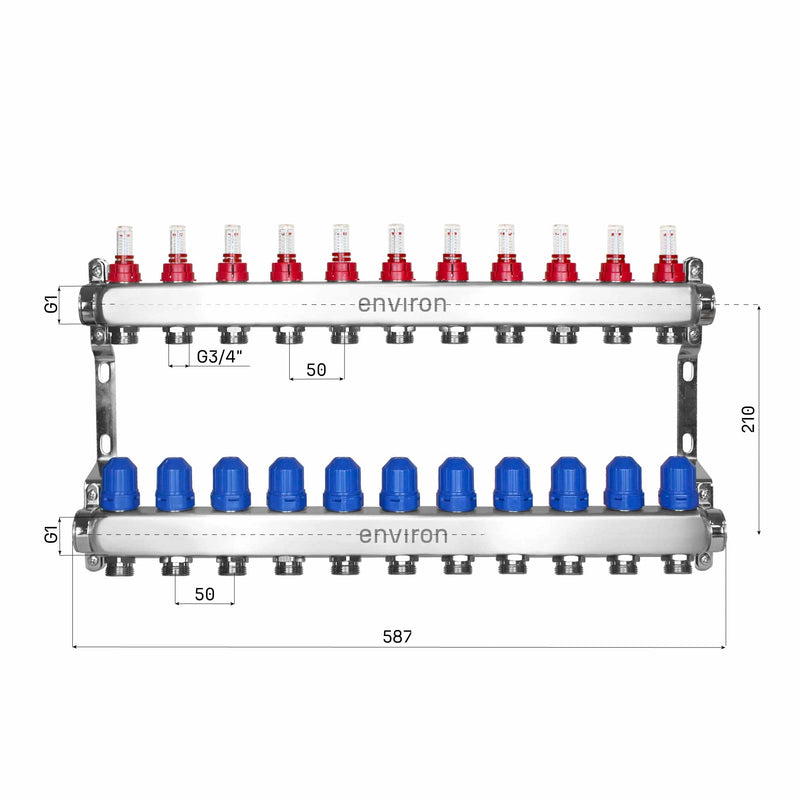

Dimensions (L x H x D in mm):

Dimensions (L x H x D in mm):

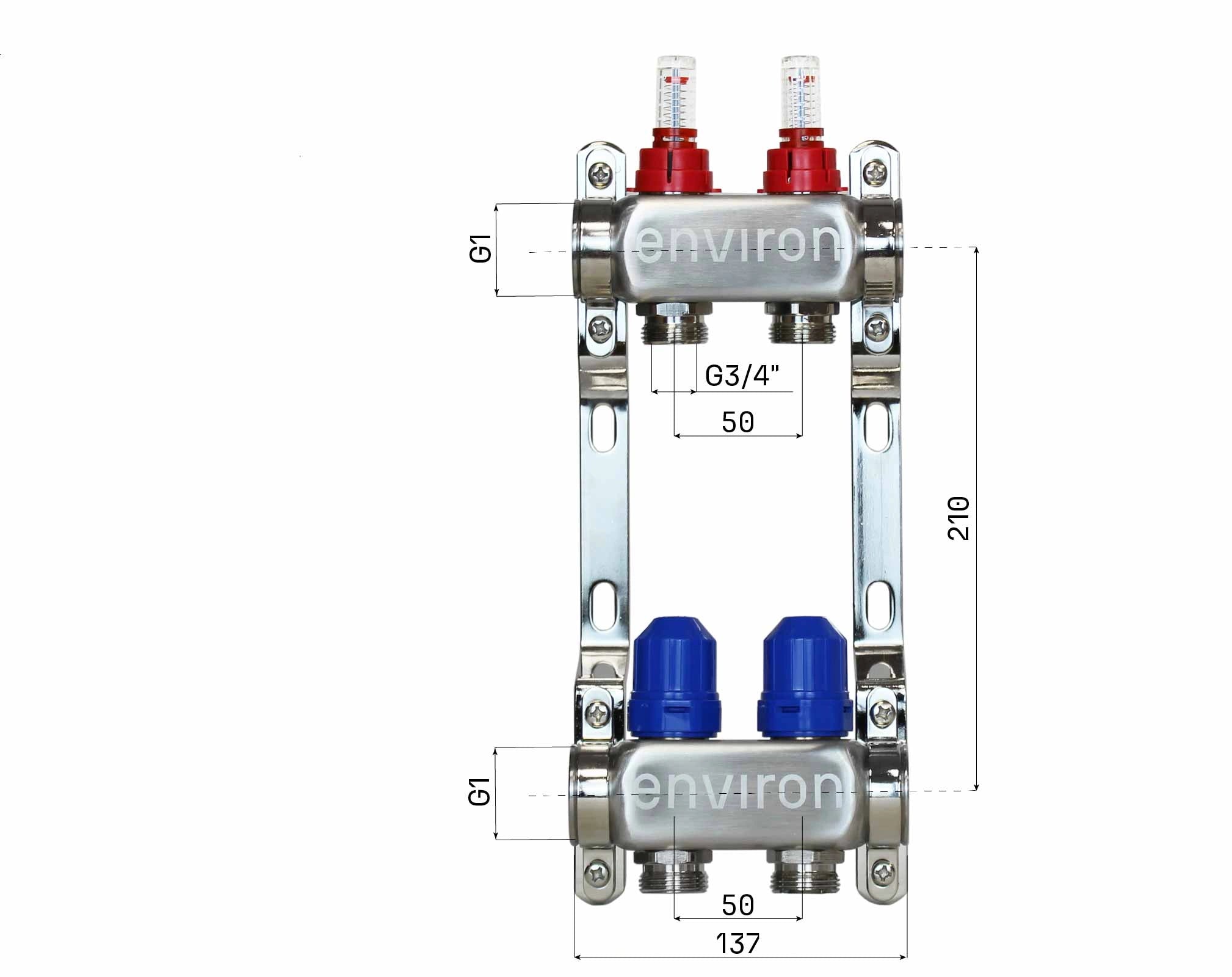

• 2 heating circuits: 125 x 326 x 92.65 mm

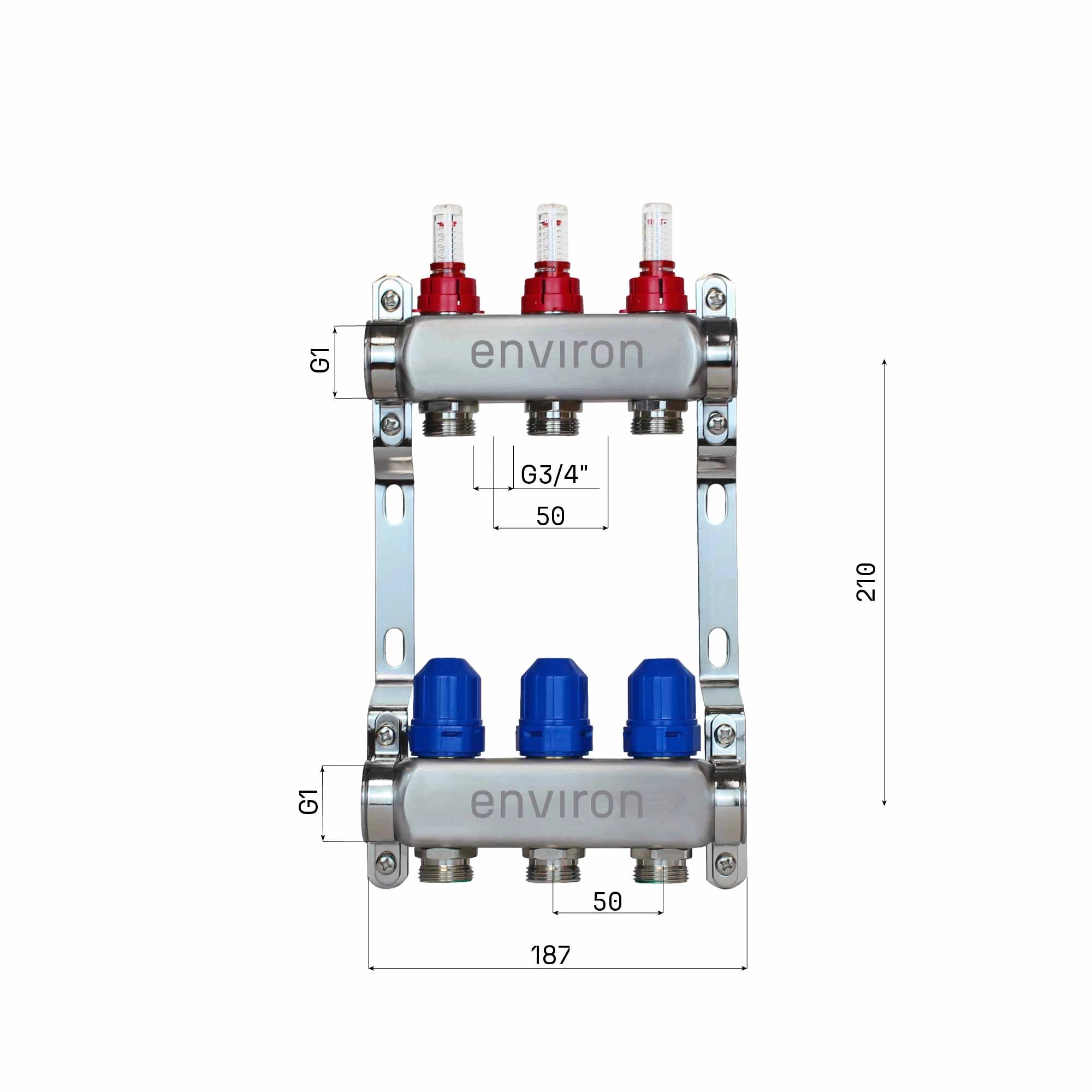

• 3 heating circuits: 176 x 326 x 92.65 mm

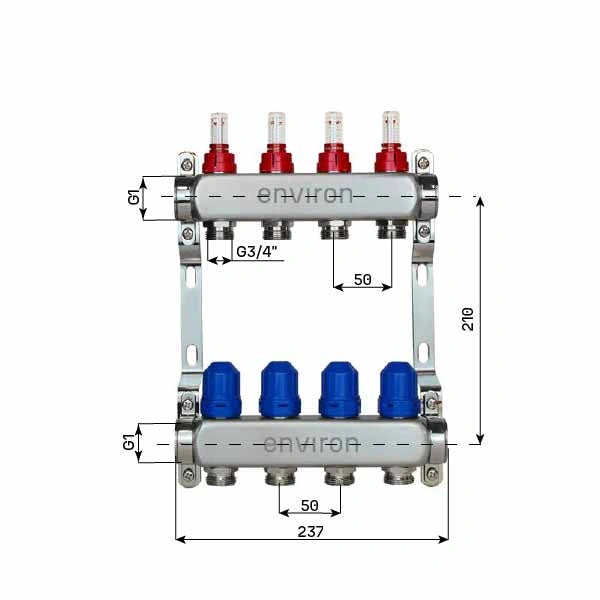

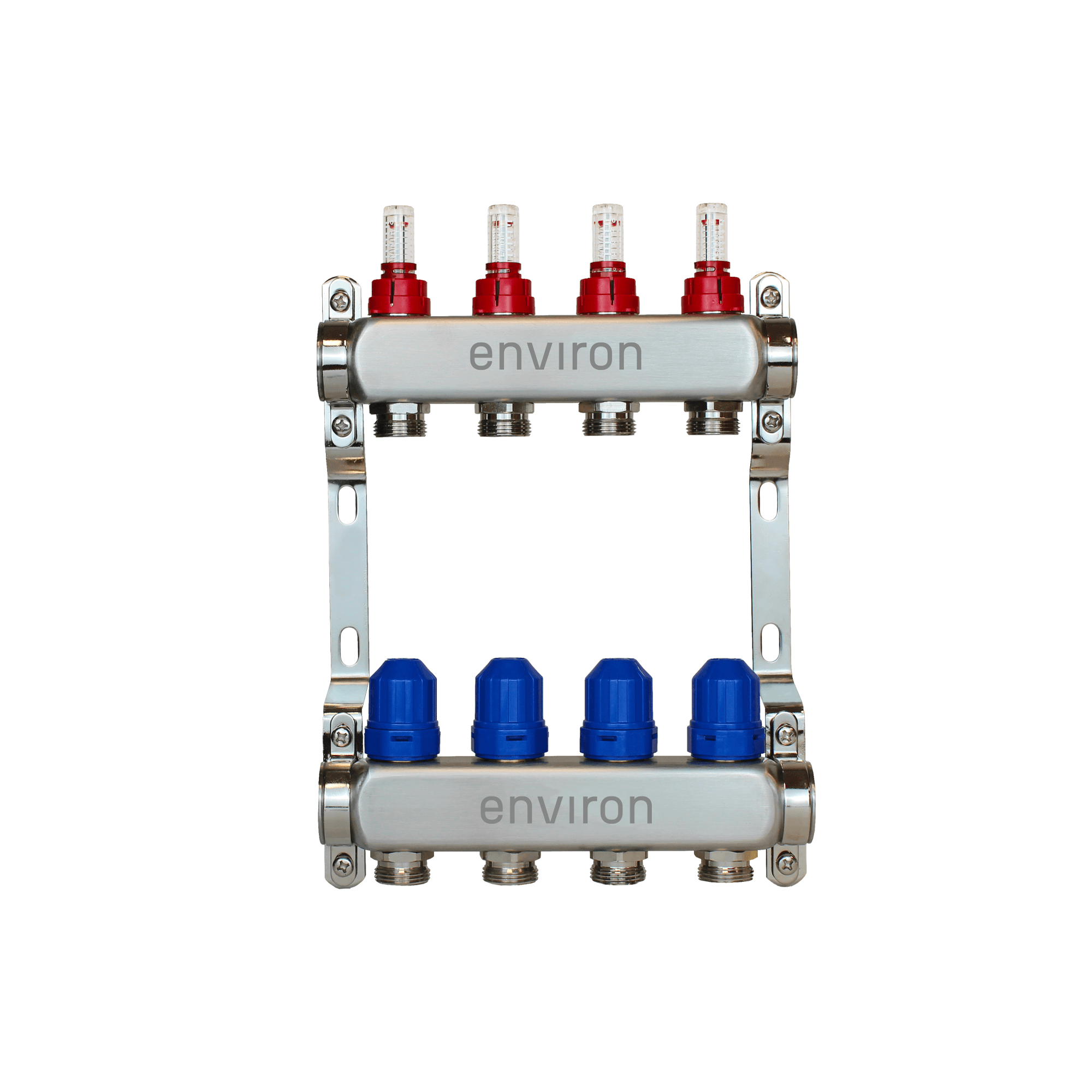

• 4 heating circuits: 226 x 326 x 92.65 mm
• 5 heating circuits: 276 x 326 x 92.65 mm

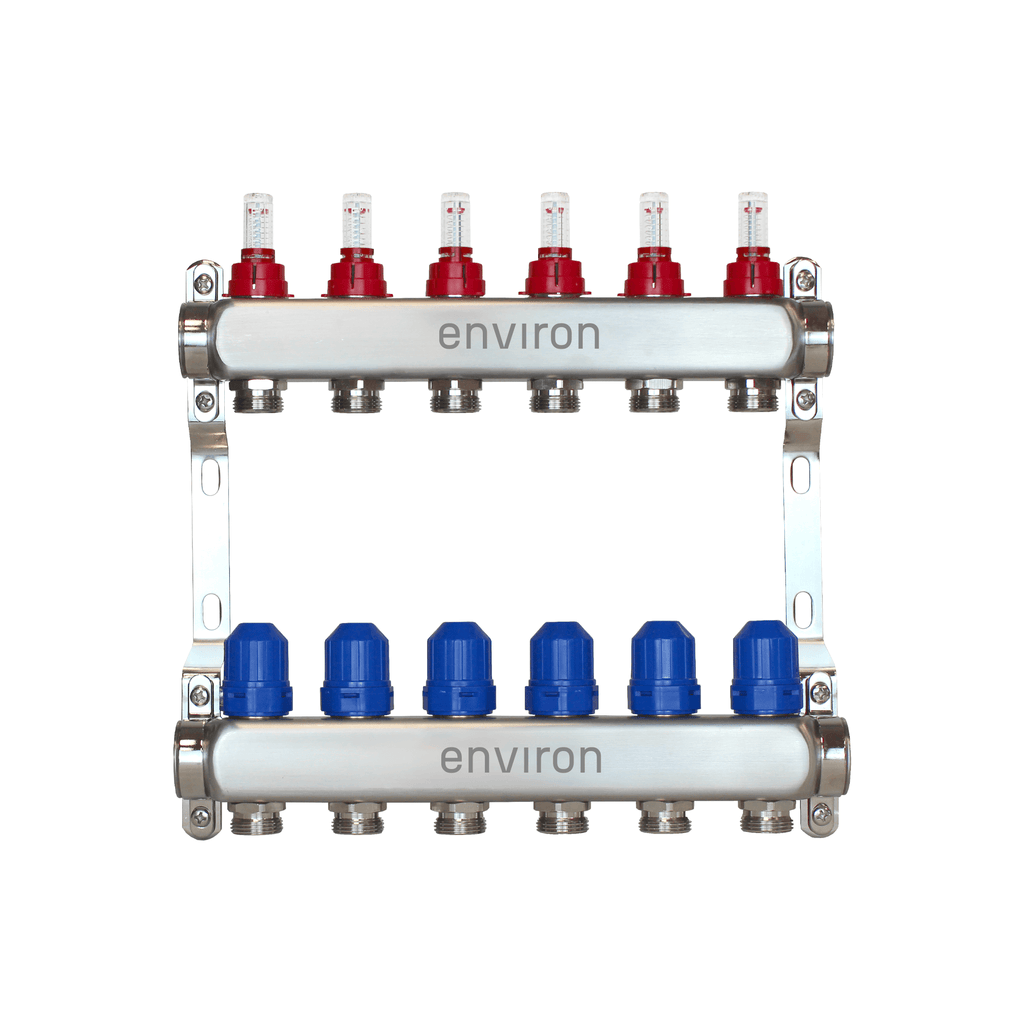

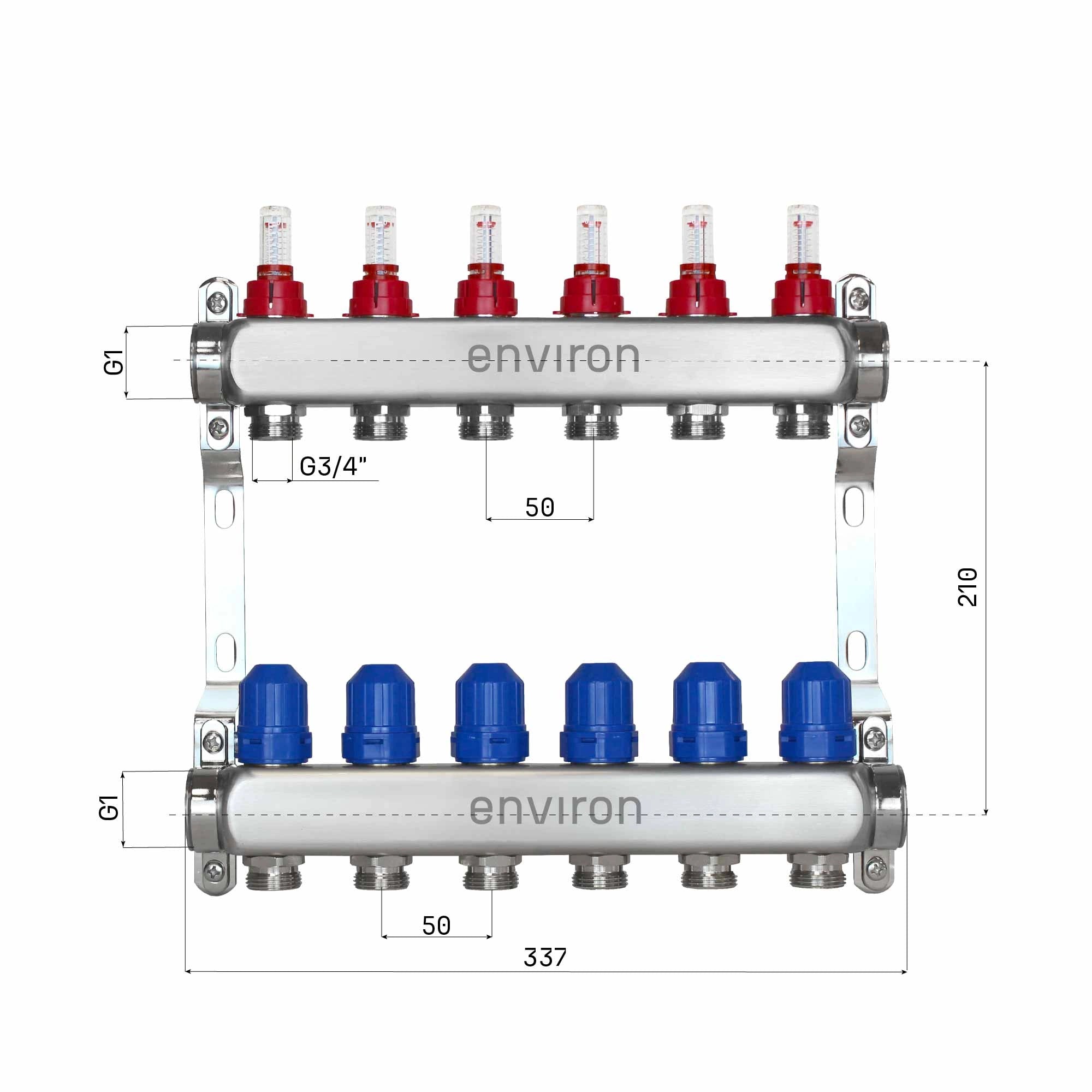

• 6 heating circuits: 326 x 326 x 92.65 mm

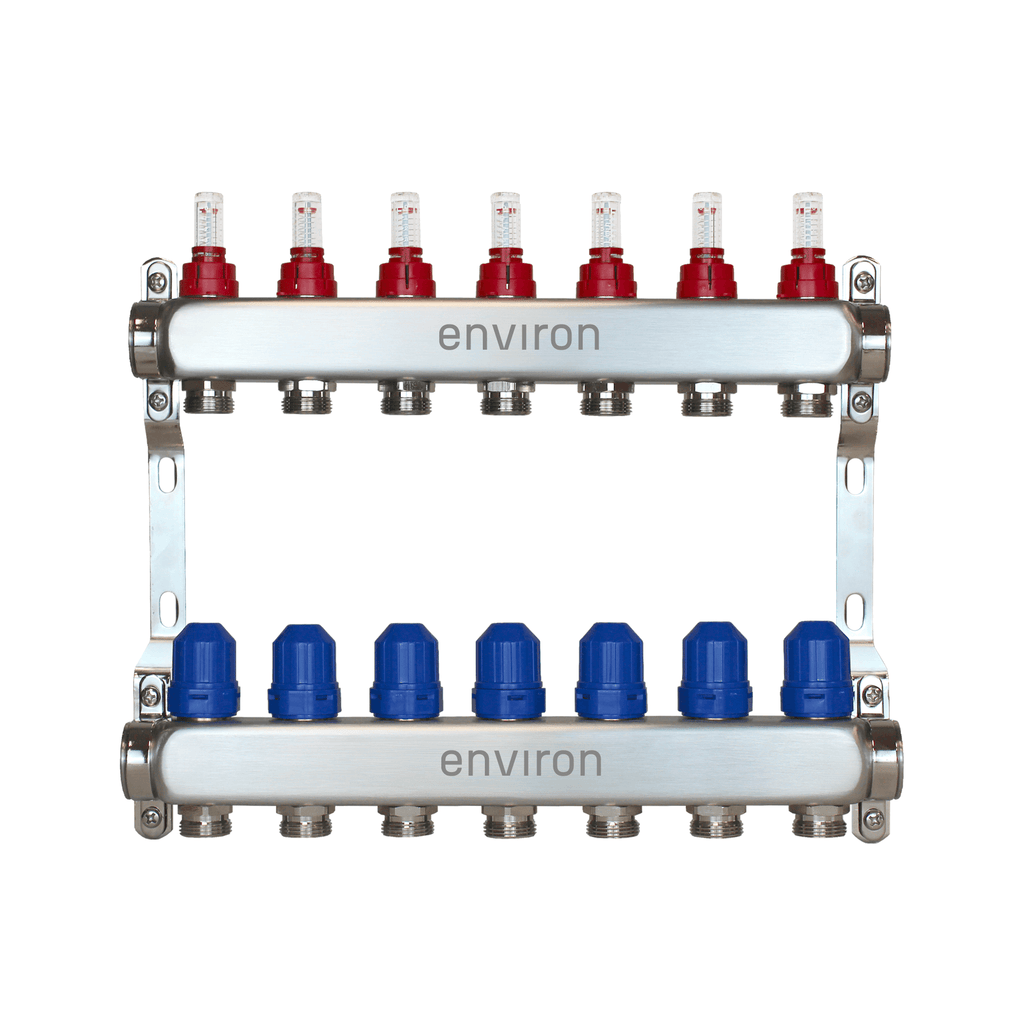

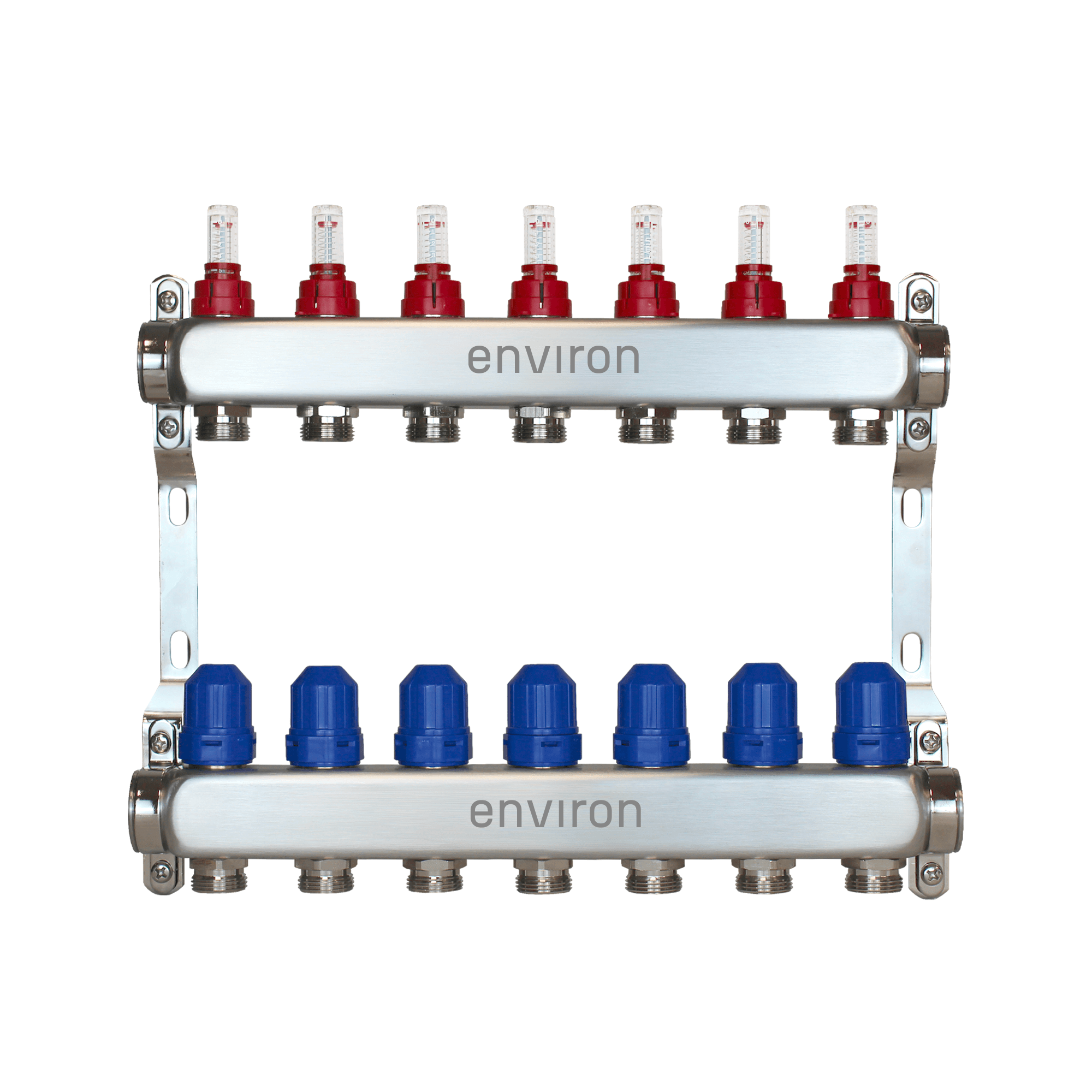

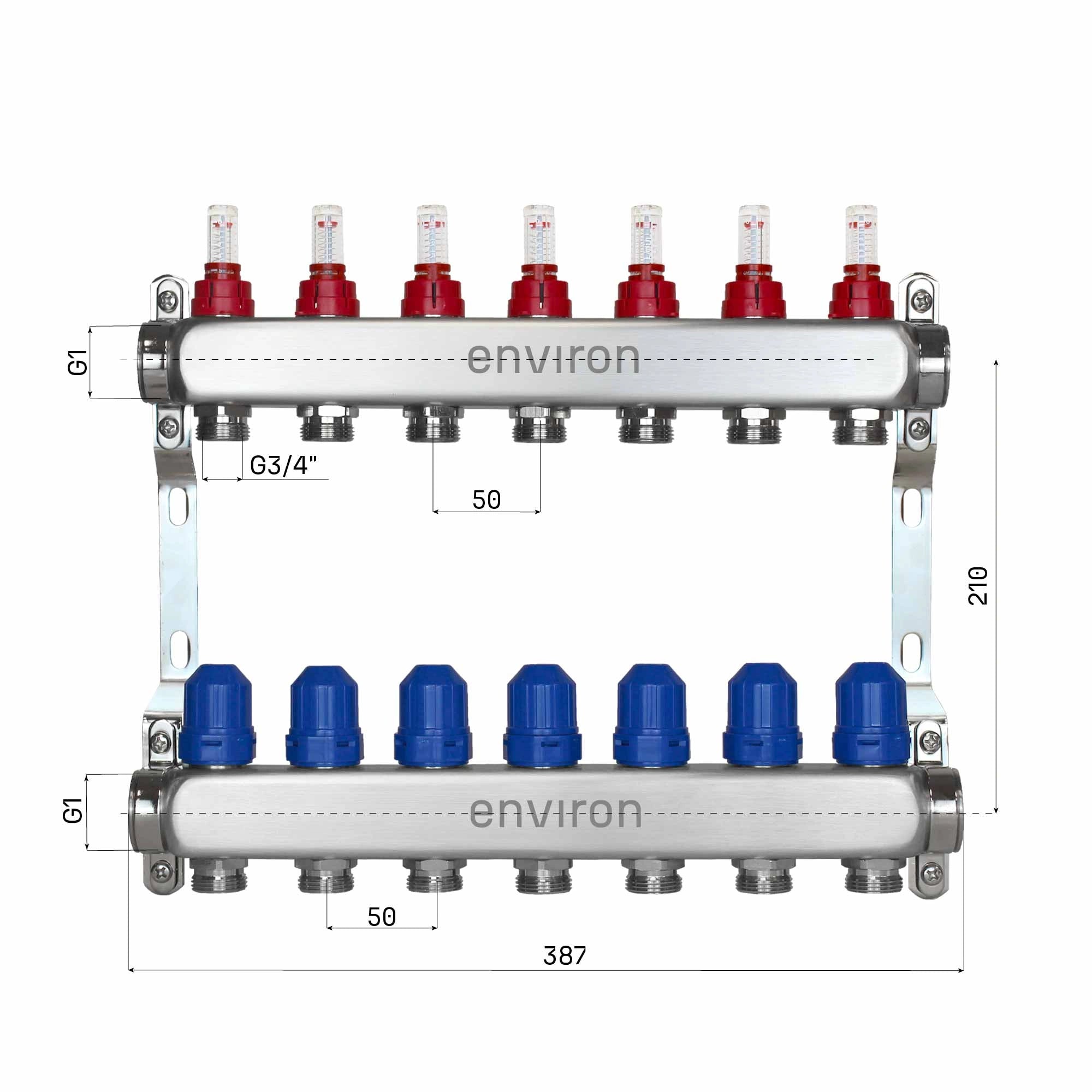

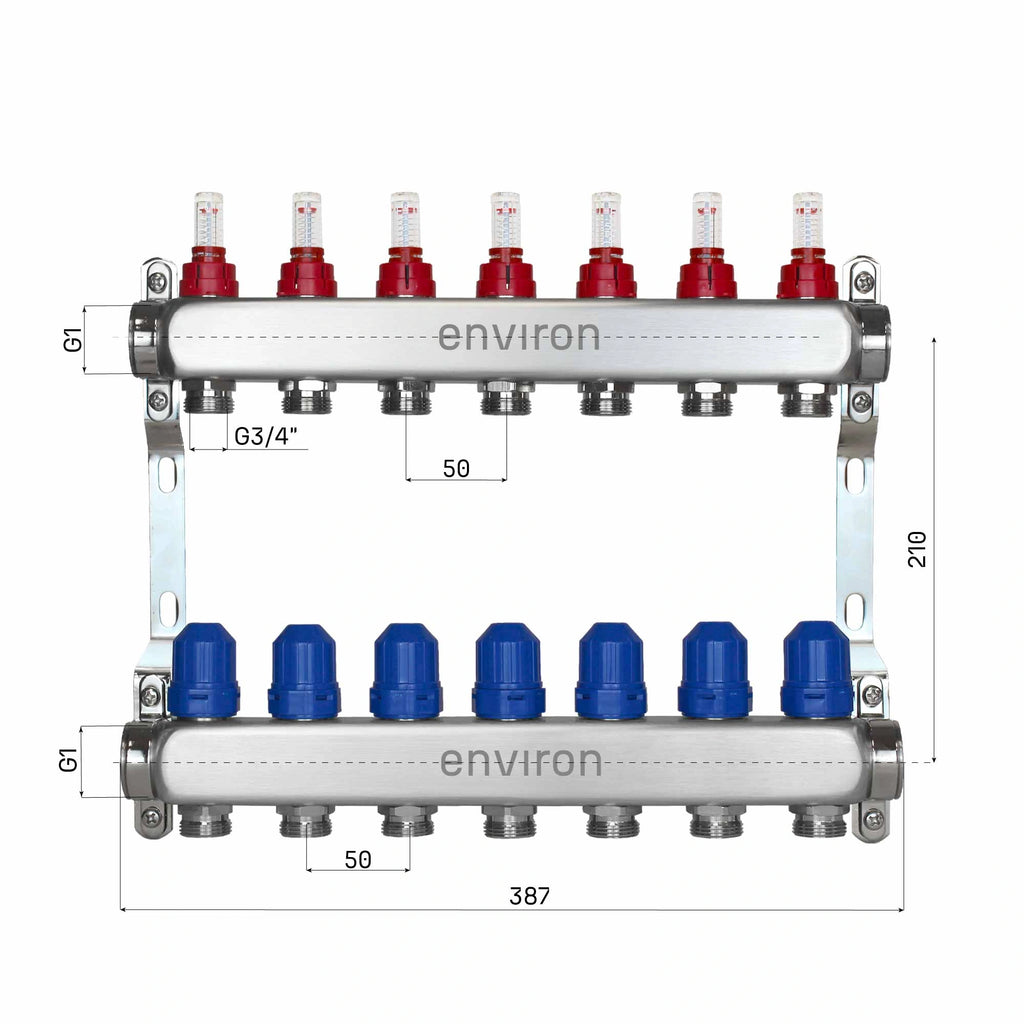

• 7 heating circuits: 376 x 326 x 92.65 mm

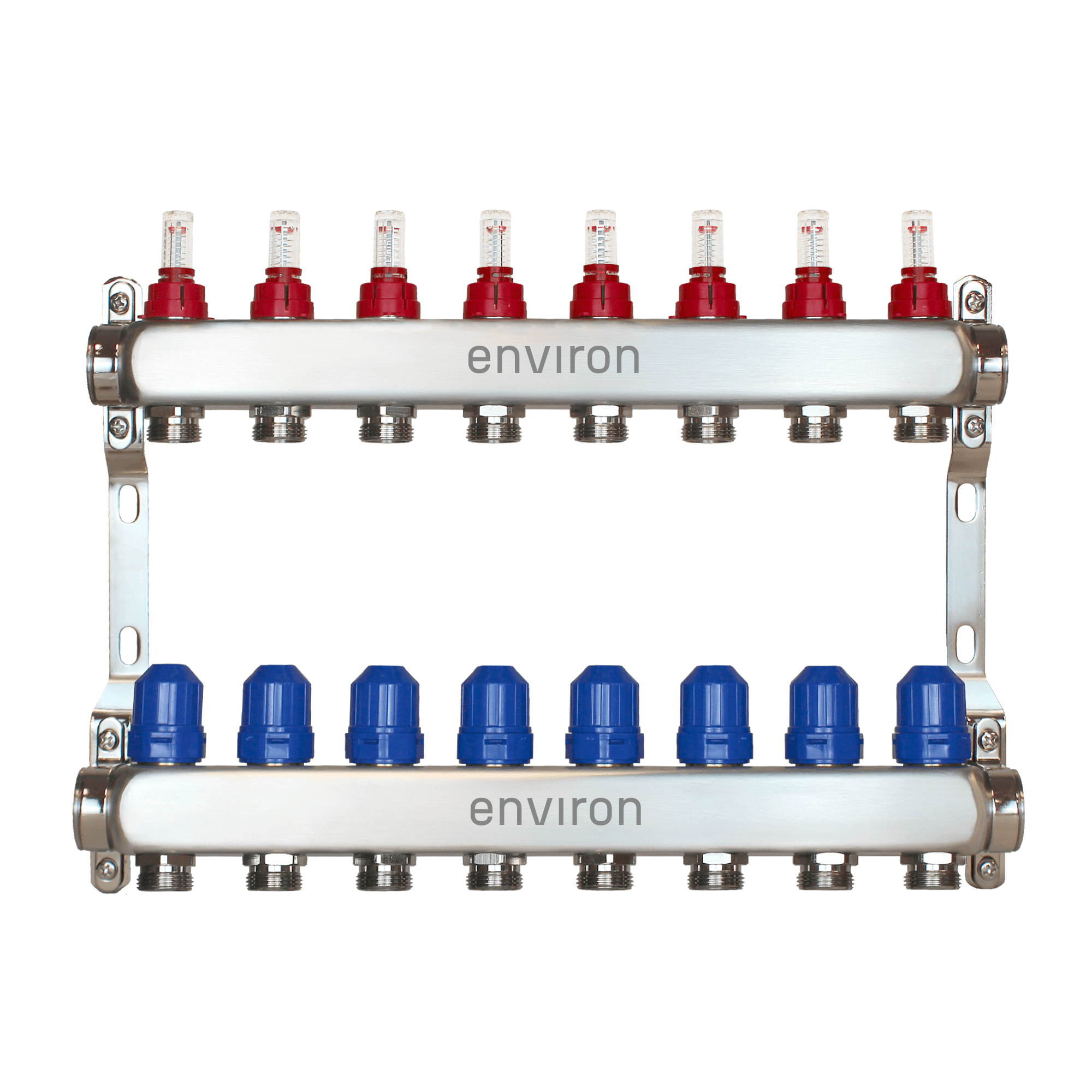

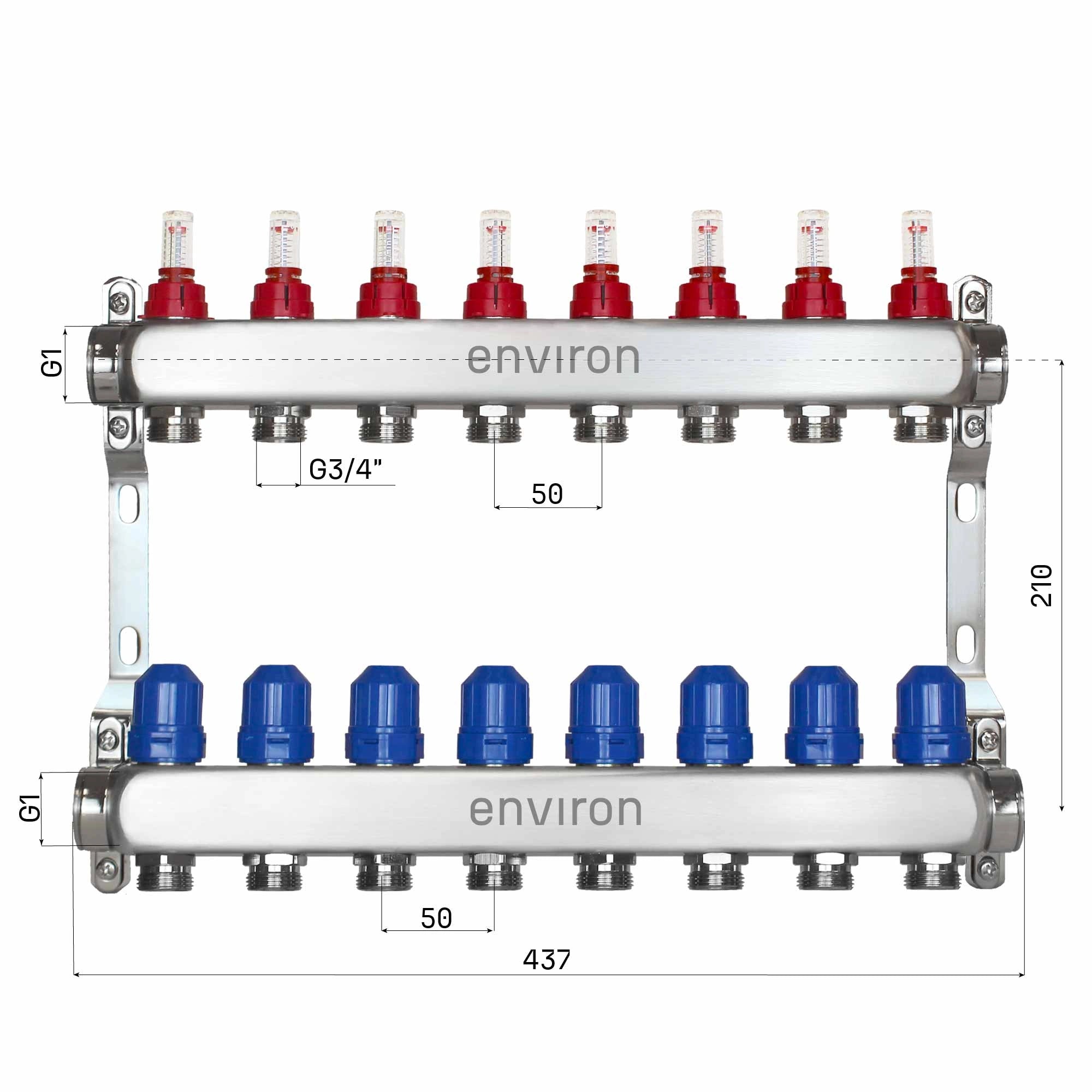

• 8 heating circuits: 426 x 326 x 92.65 mm

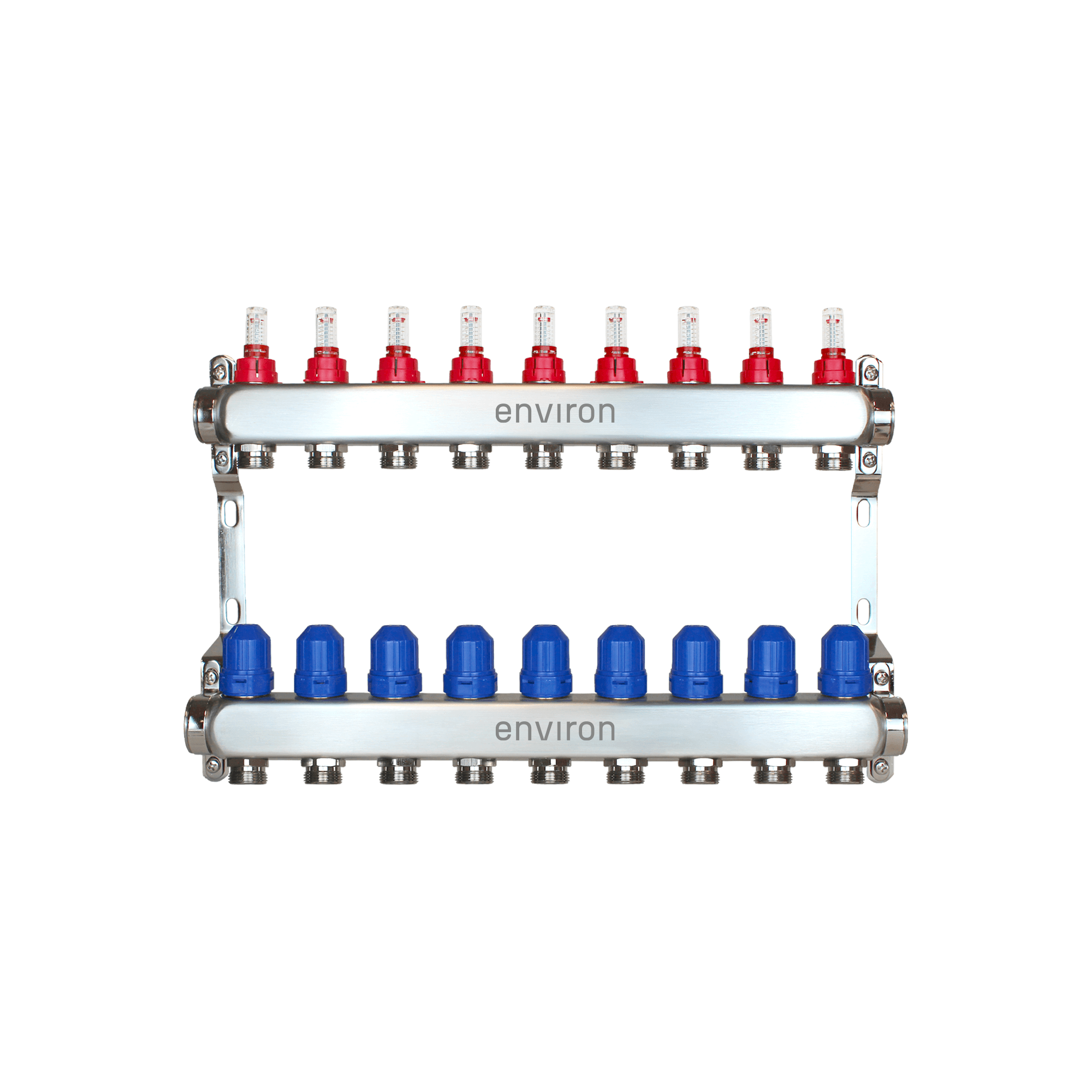

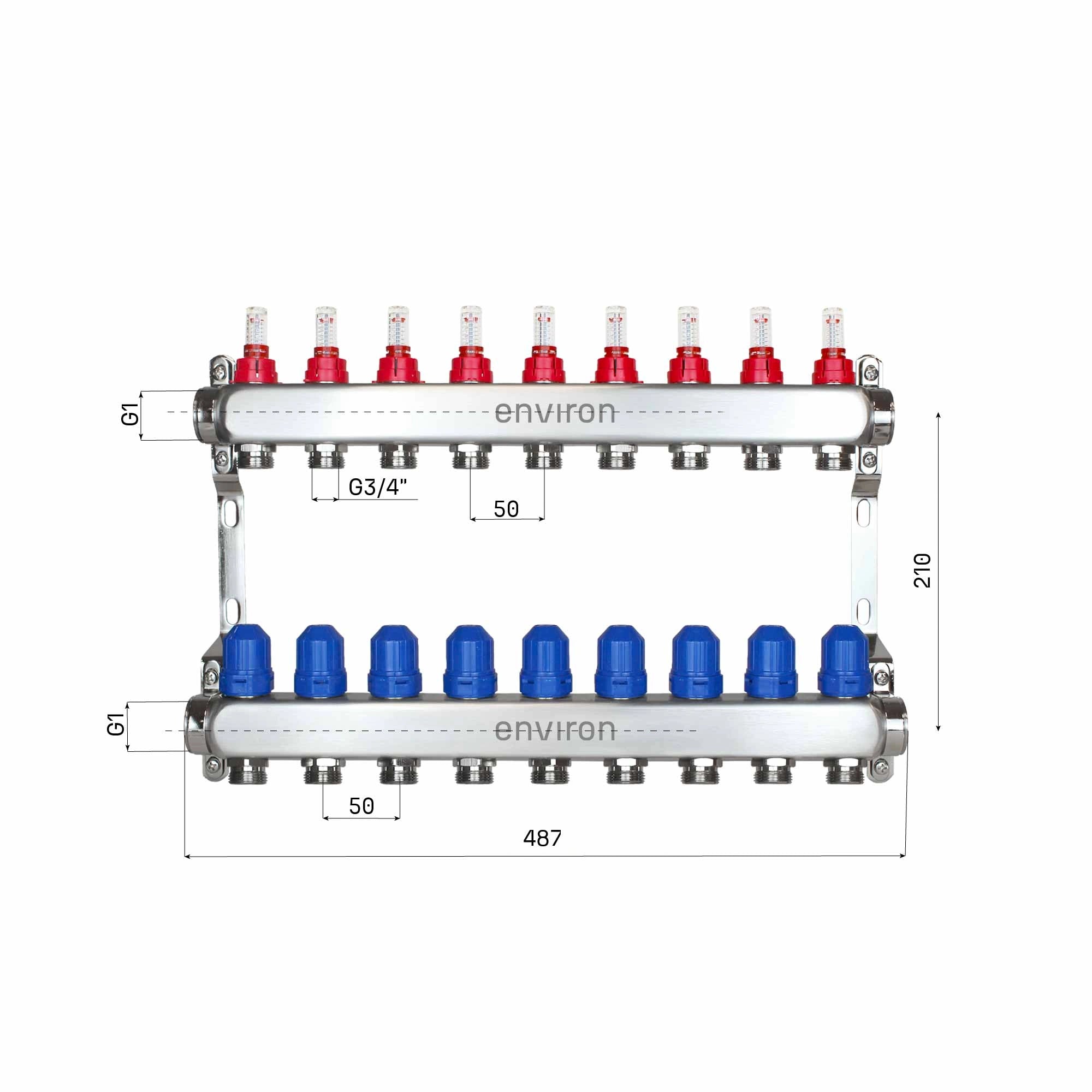

• 9 heating circuits: 476 x 326 x 92.65 mm
• 10 heating circuits: 526 x 326 x 92.65 mm

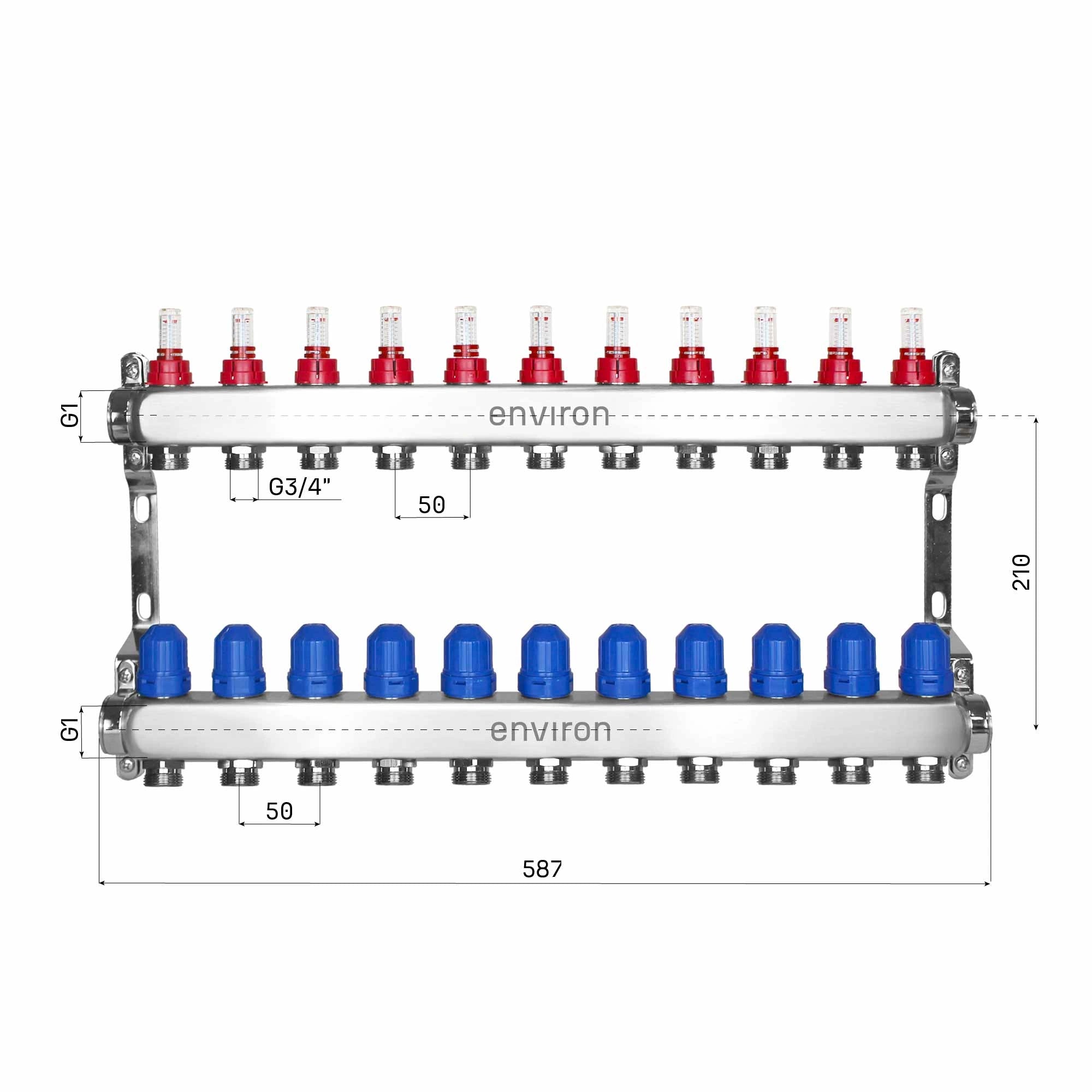

• 11 heating circuits: 576 x 326 x 92.65 mm
• 12 heating circuits: 626 x 326 x 92.65 mm

Accessories included:

• Soundproofed steel consoles
• 2x adapter nipples 1" external thread
• 2x distributor holder

For each heating circuit:

• 1 flow indicator
• Valve inserts 30 x 1.5 mm (compatible with Environ, Heimeier, Salus, Oventrop and more)
• Pipe connections for Eurocone 3/4"
• Max. operating pressure: 5 bar


✓ Robust profile pipe distributor made of stainless steel (not welded) according to DIN EN 1264-4
✓ Easy connection to the heat generator via 1" internal thread (transition nipple 1" external thread included in delivery)
✓ Adjustable flow meter (2.5 l/min) in the supply line with shut-off valve
✓ Return bar with integrated valves and manual adjustment cap

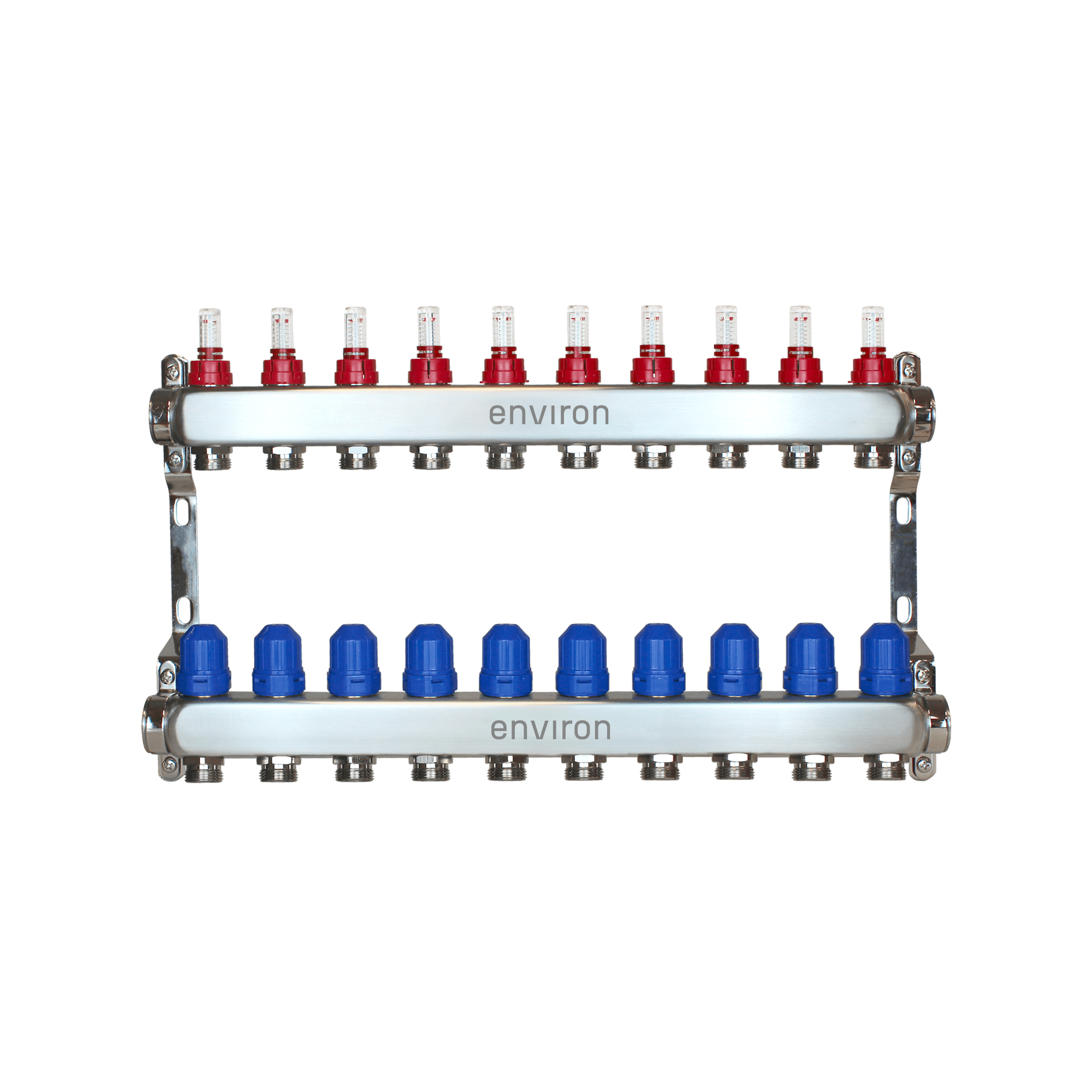

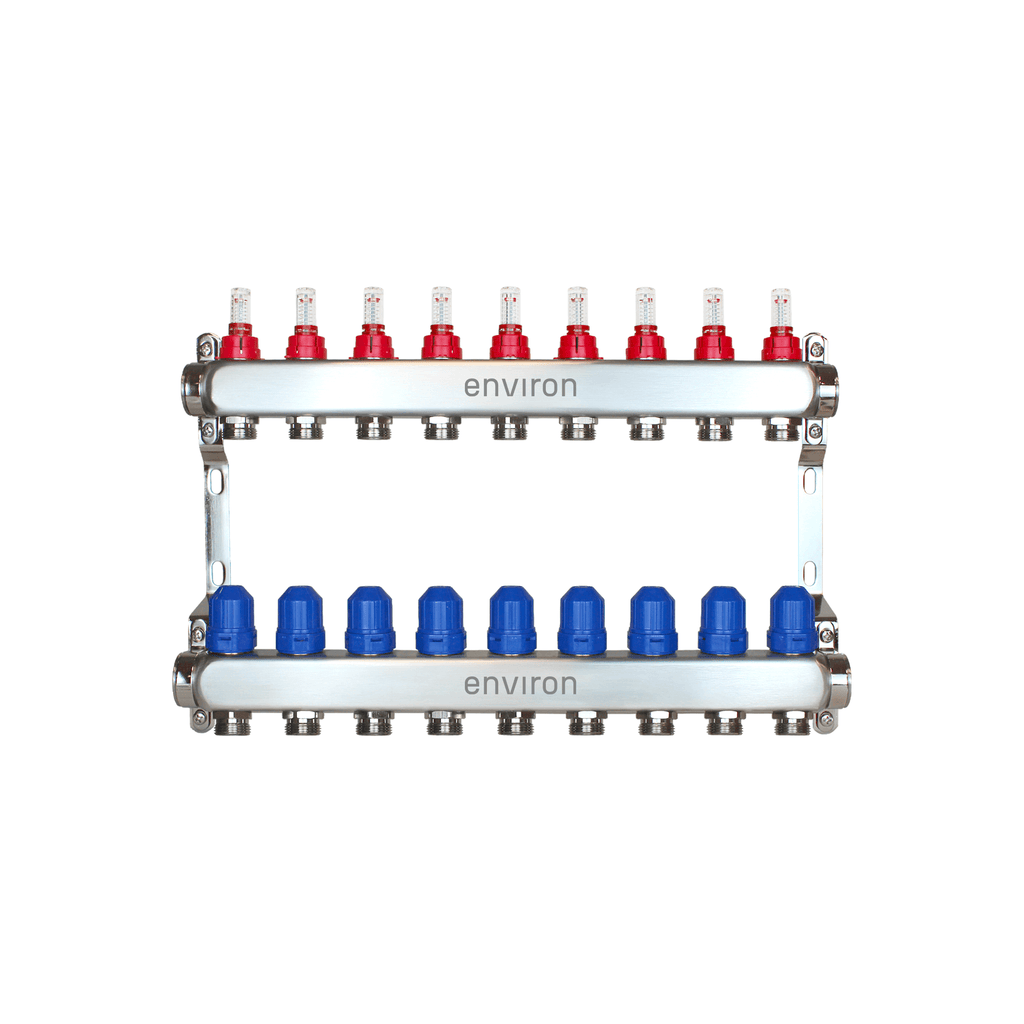

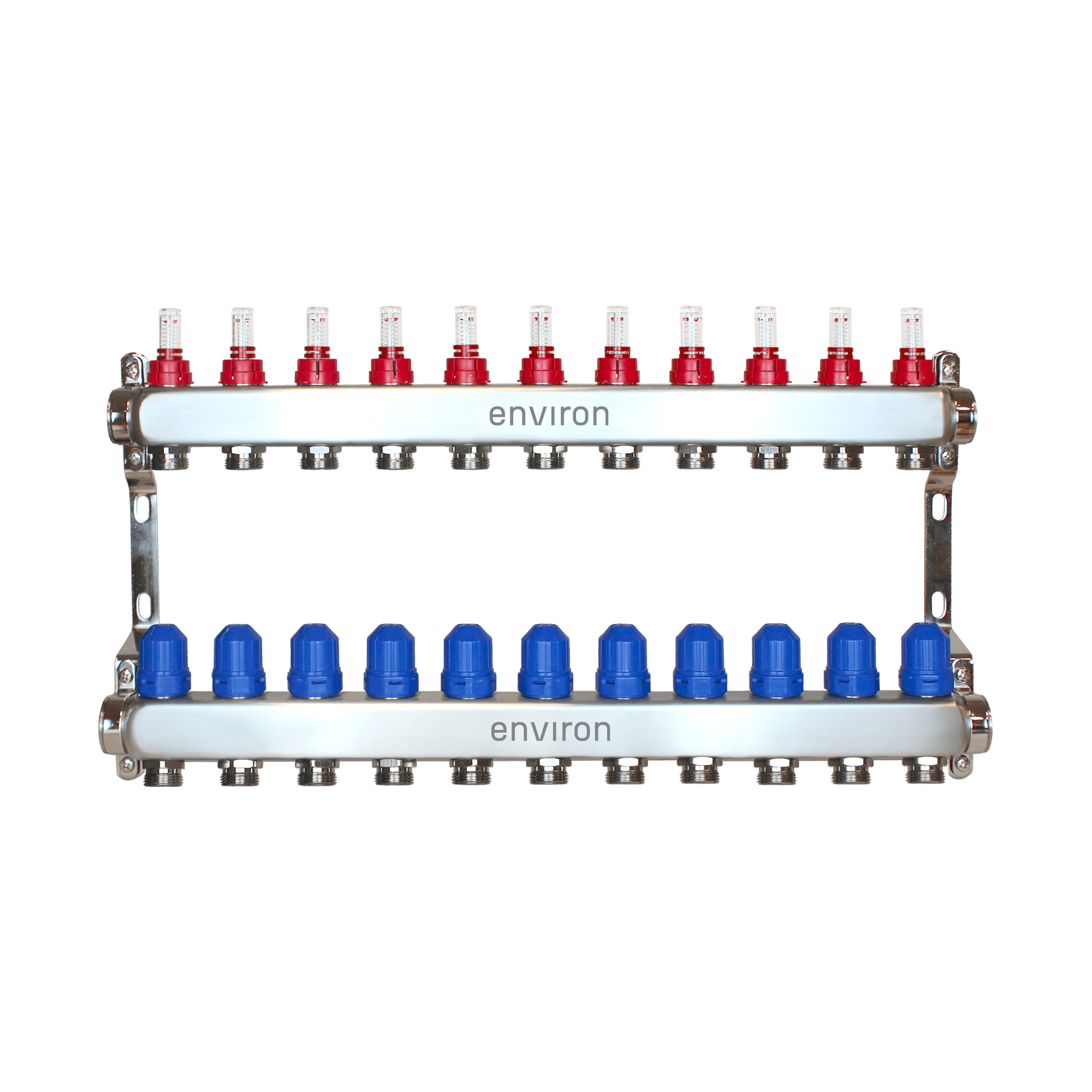

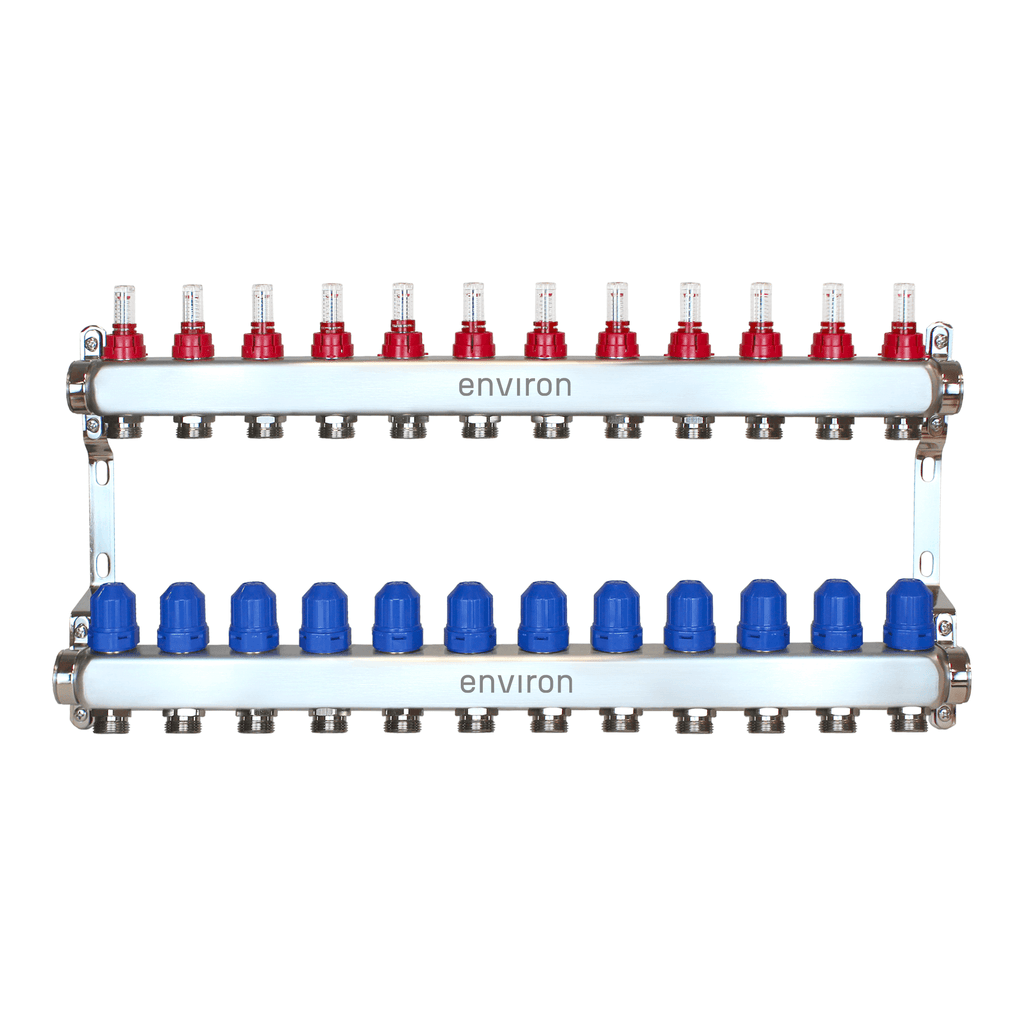

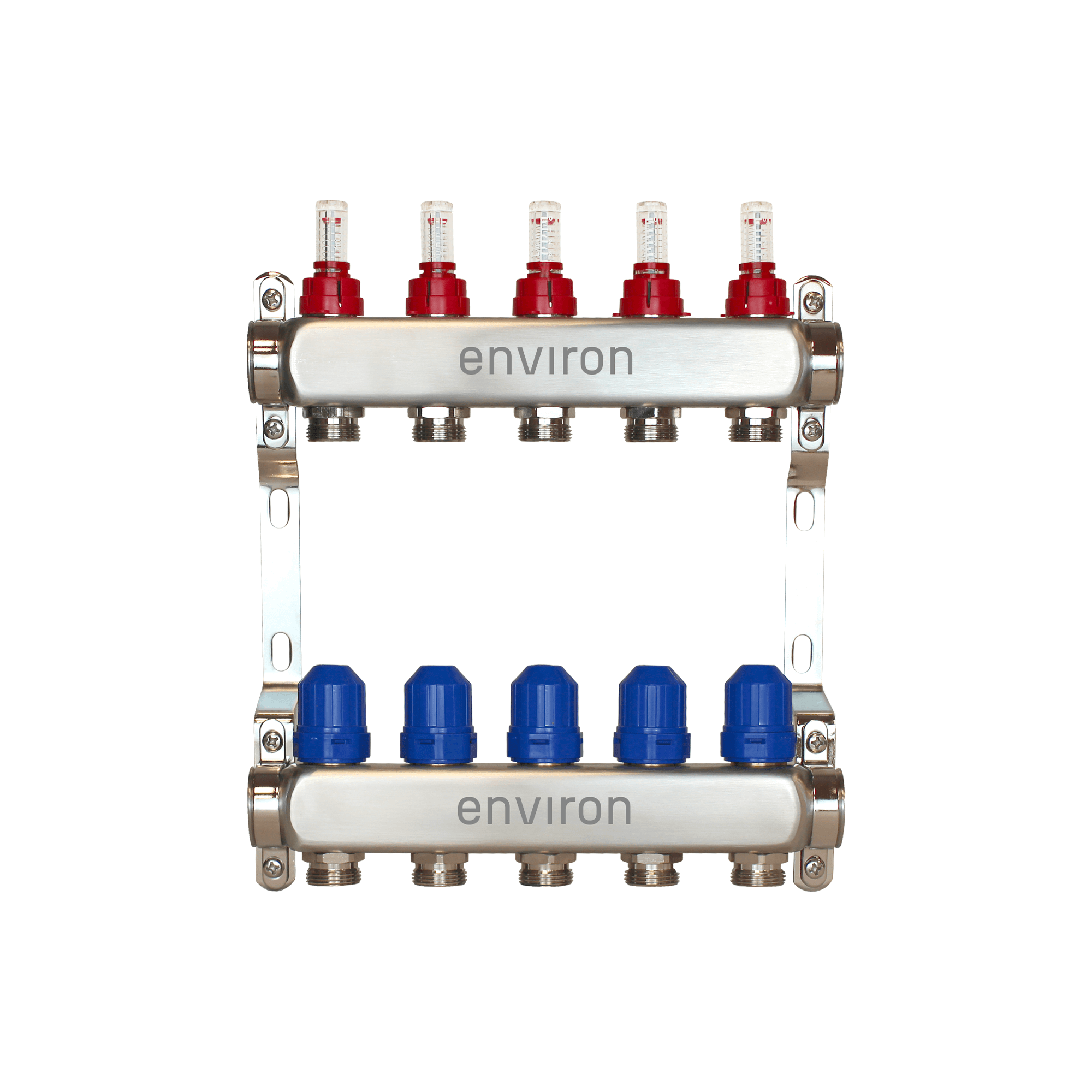

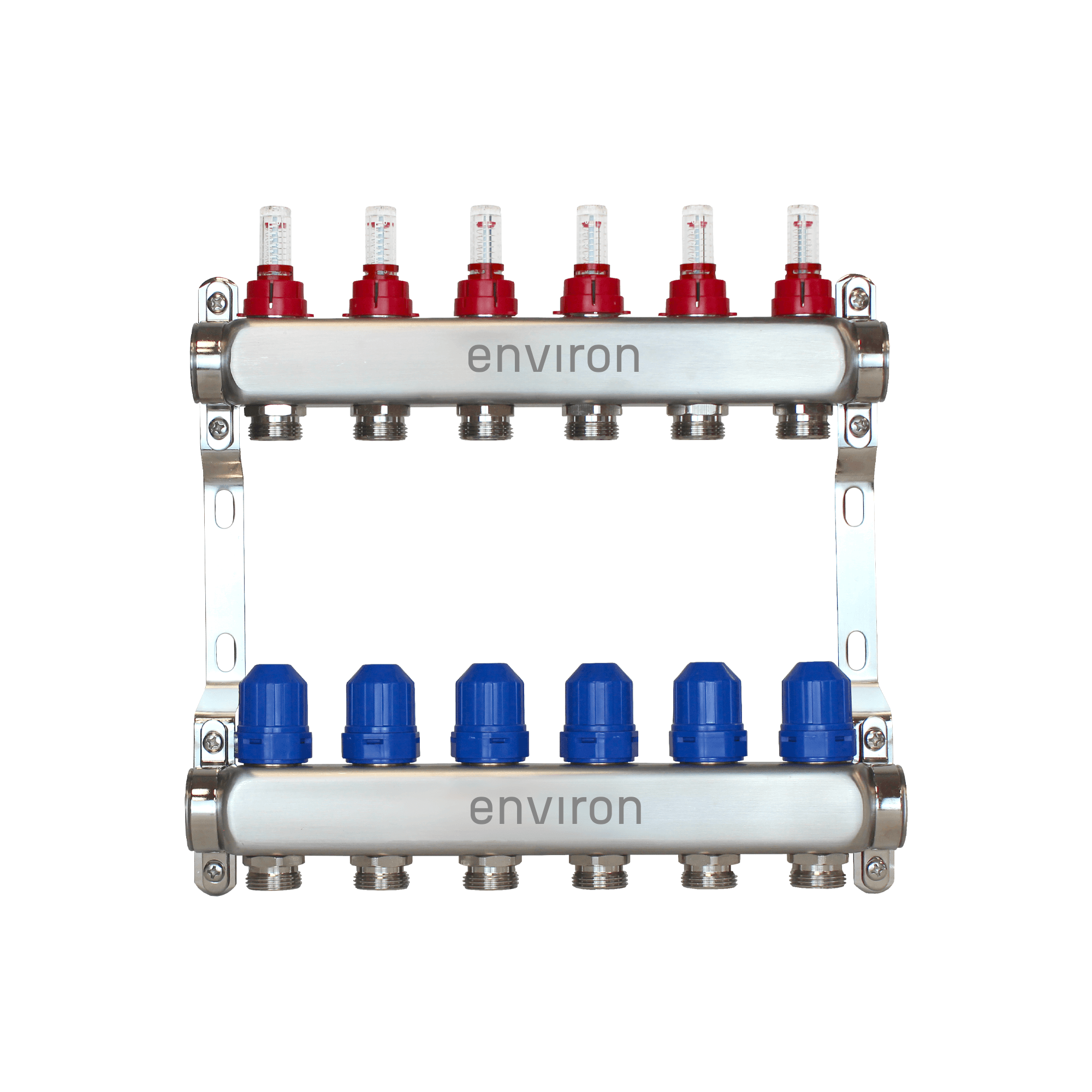

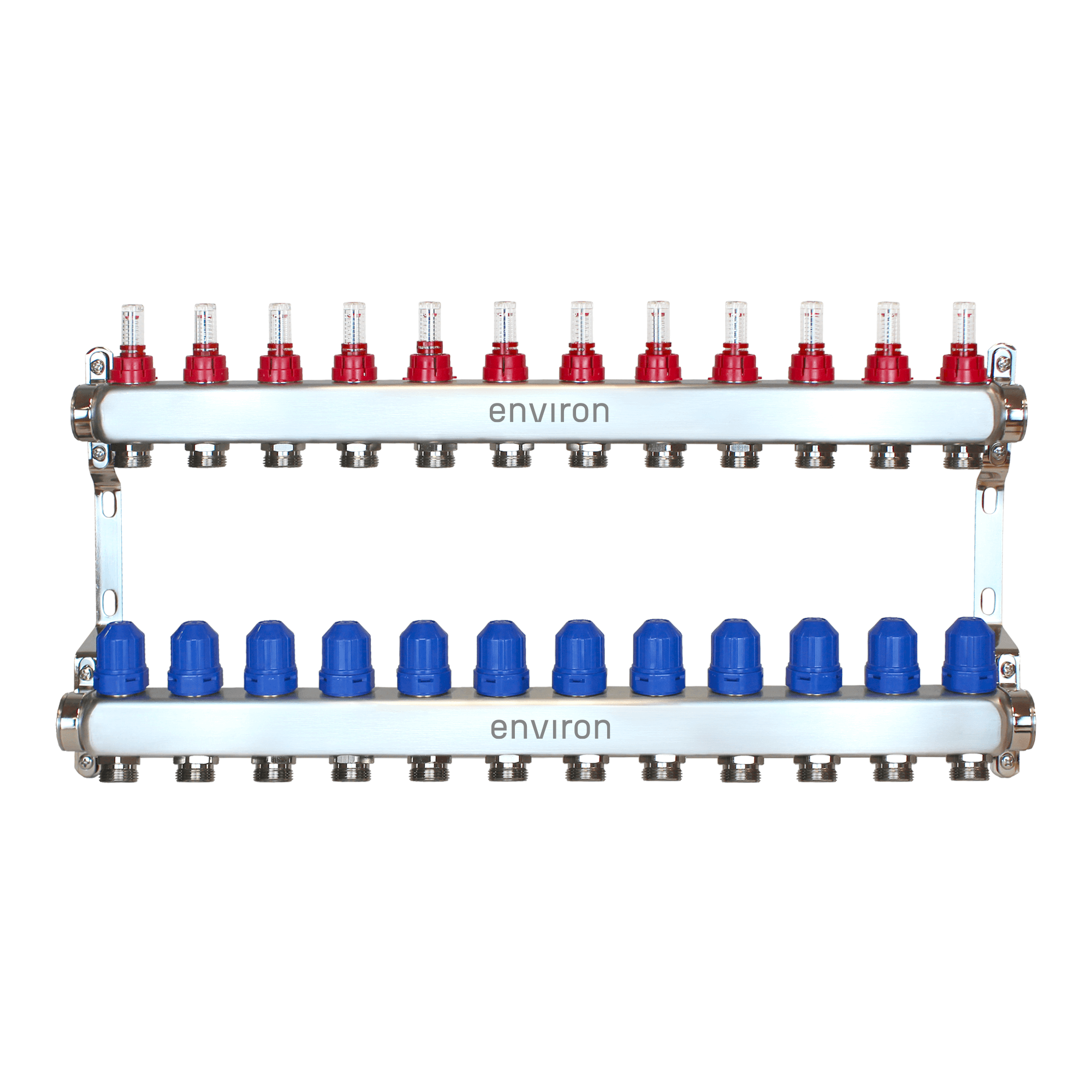

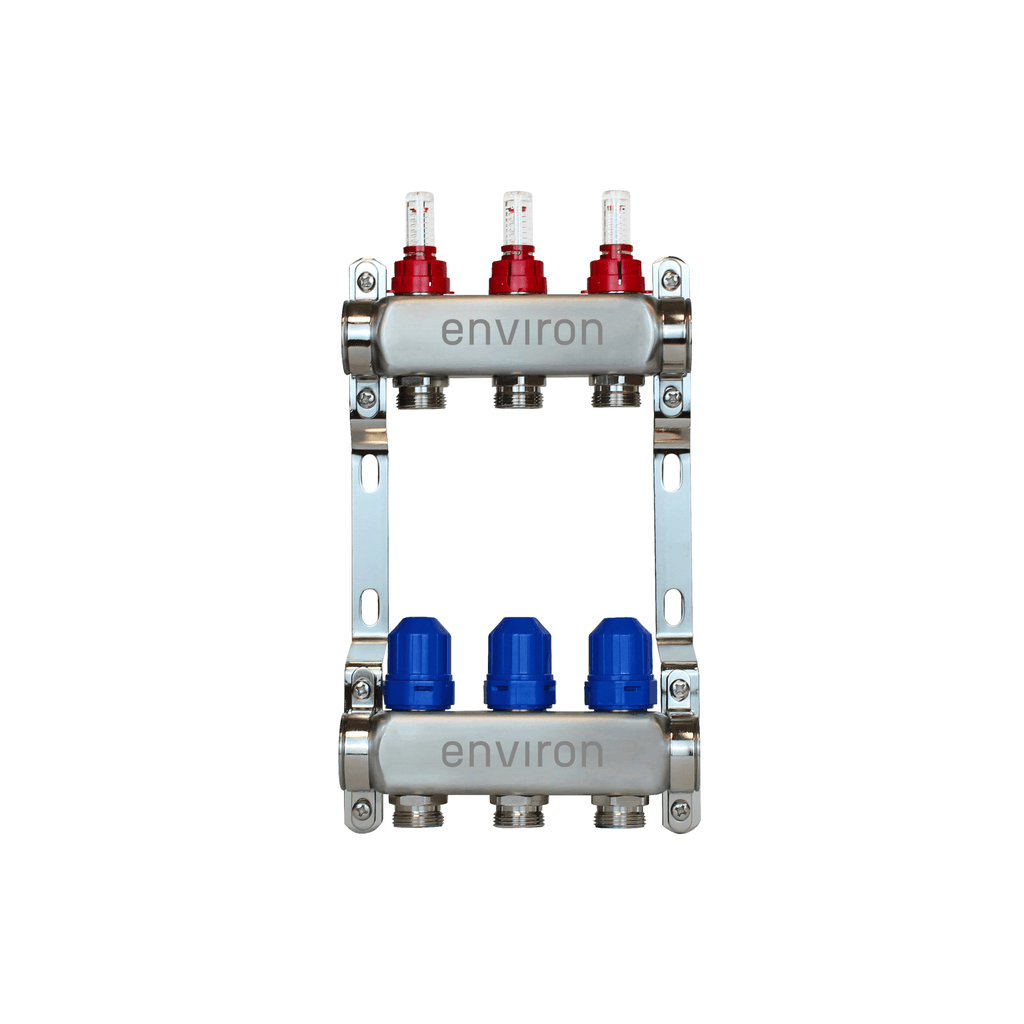

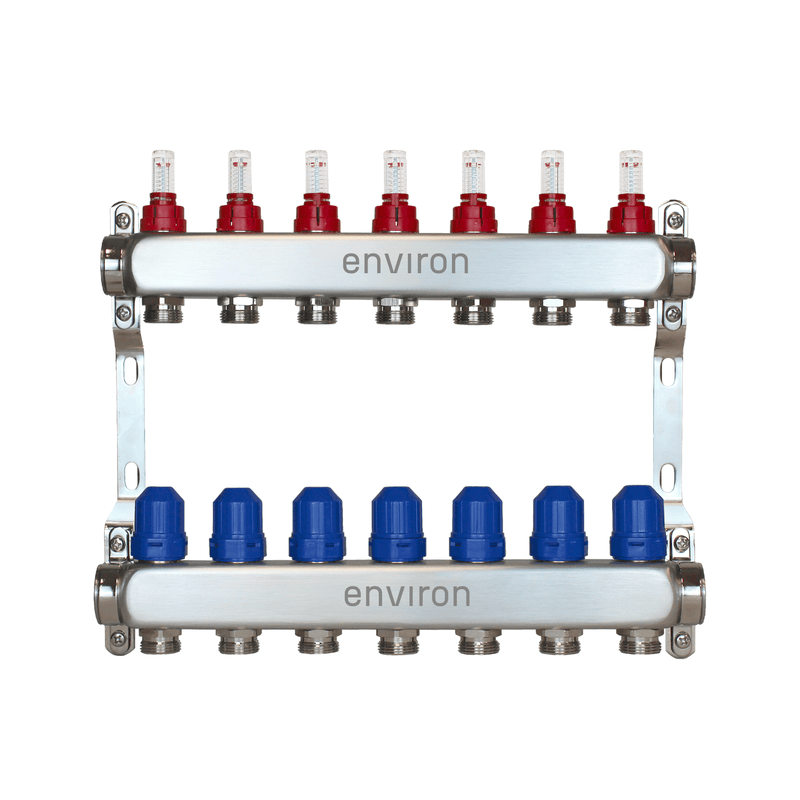

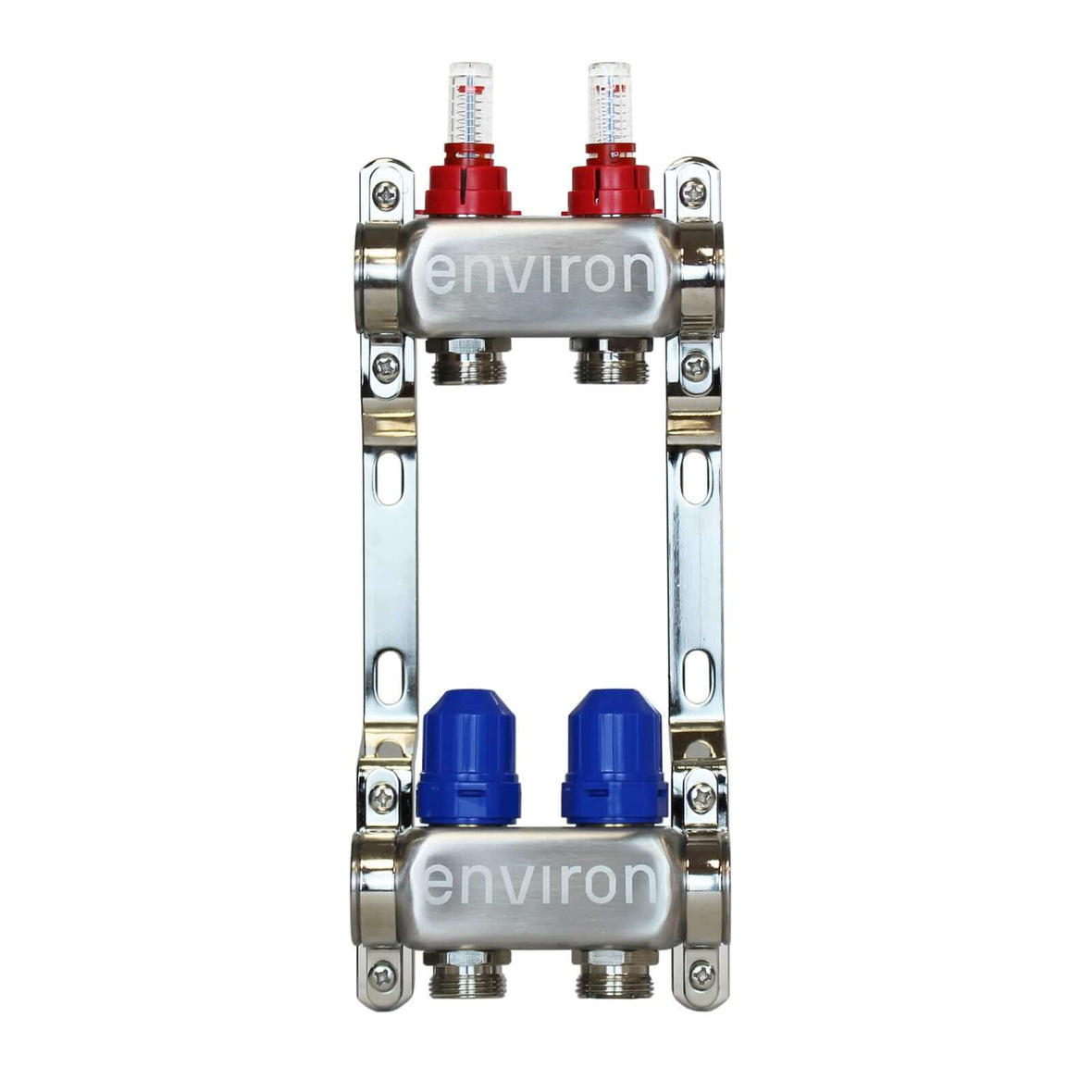

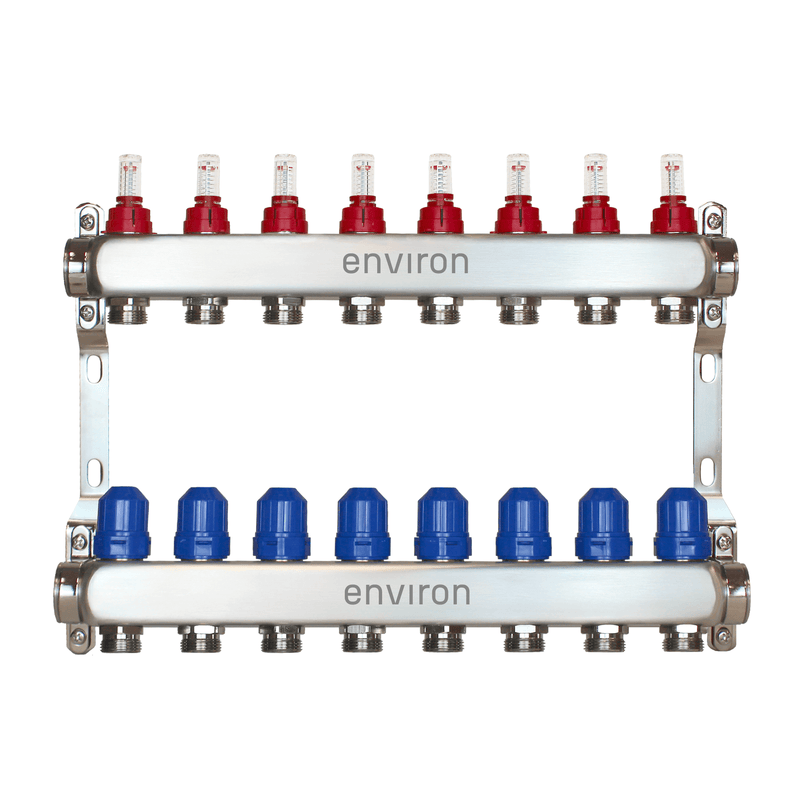

ENVIRON heating circuit distributor for underfloor heating [2-12 heating circuits] – High-quality stainless steel with flow meter for precise heating control
Experience the future of underfloor heating technology with the ENVIRON manifold, the ultimate upgrade for your home heating system. Designed for the most demanding applications, this manifold offers unparalleled precision and reliability to provide you and your family with maximum comfort.

✓ No more cold feet: your perfect indoor climate with Environ
✓ Individual size: Choose between 2 and 12 heating circuits to optimally adapt your heating system to the needs of your home.
✓ High-quality material: Made of robust stainless steel, this heating circuit distributor guarantees durability and corrosion resistance
✓ New standards in heating technology: The ENVIRON heating circuit distributor sets new standards in terms of precision and efficiency. Experience unprecedented control over your room temperature, optimized for your living comfort
✓ Innovative flow meter: Each heating circuit is equipped with a precise flow meter that enables precise regulation of the heat supply and thus ensures even and efficient heat distribution
✓ Easy installation: The main lines with 1" internal thread on both sides enable quick and easy installation, can be integrated into existing or new underfloor heating systems

Buy now and enjoy the highest level of living comfort!
Whether you are upgrading an existing underfloor heating system or planning a new installation, the ENVIRON heating manifold is the ideal choice. Order today and experience the difference that quality and precision can have on your home comfort.

Manufacturer information:

ENVIRON Energie- und Umwelttechnik GmbH & Co. KG

Robert-Bosch-Straße 9

78048 Villingen-Schwenningen

Phone: +49 7705 977 5803

E- Mail: info@environgroup.de
Website: https://environ-solutions.de/
