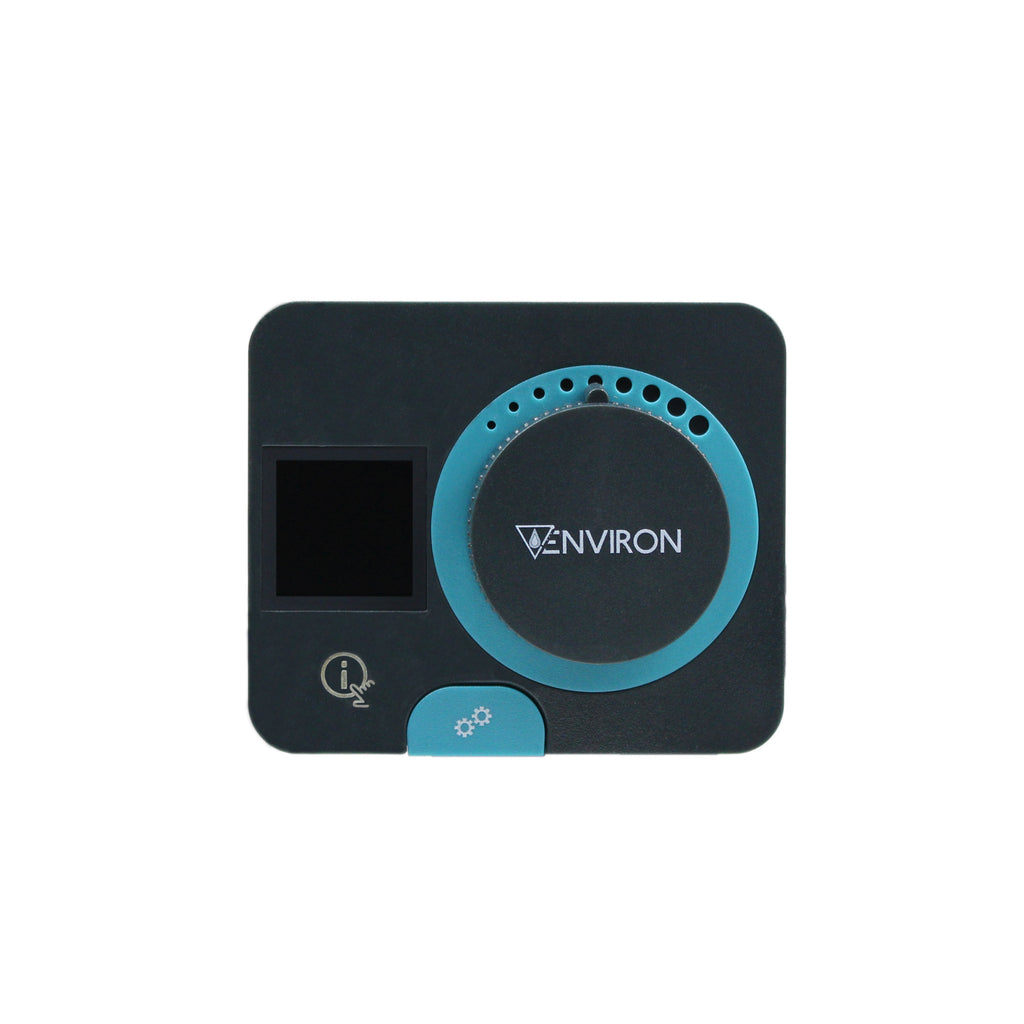

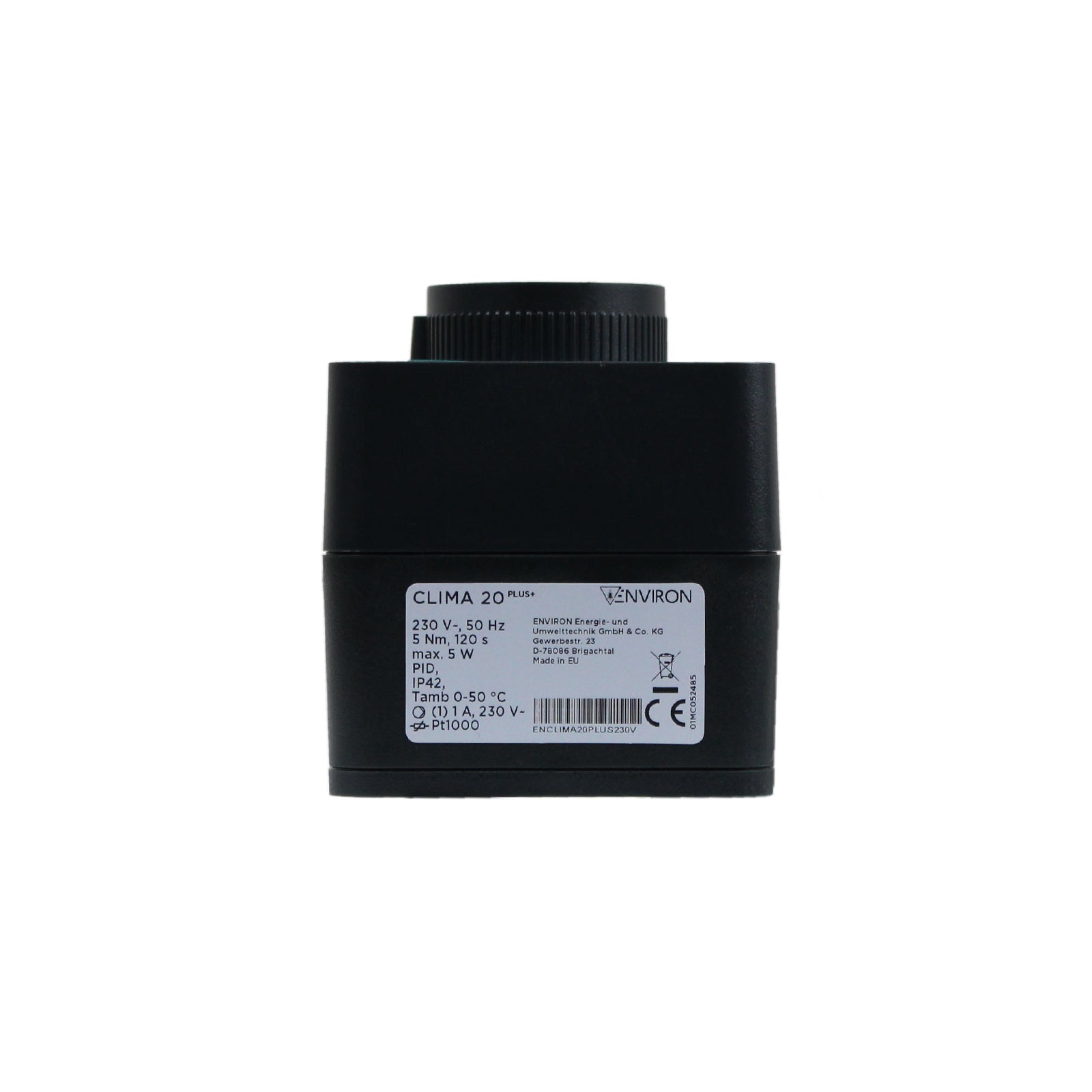

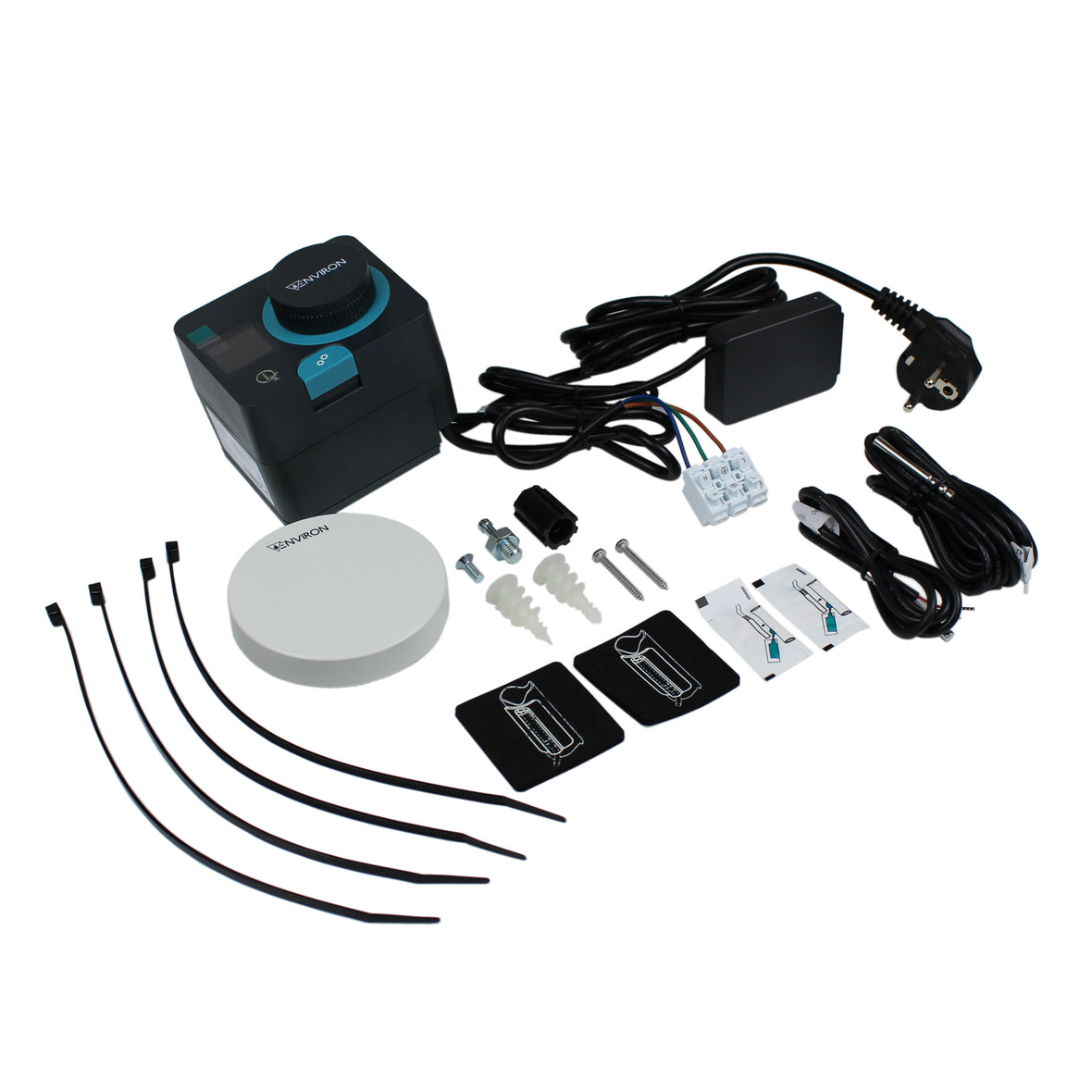

The ENVIRON actuator with weather-controlled CLIMA 20 PLUS+ is a compact actuator with integrated,
weather-controlled heating control.

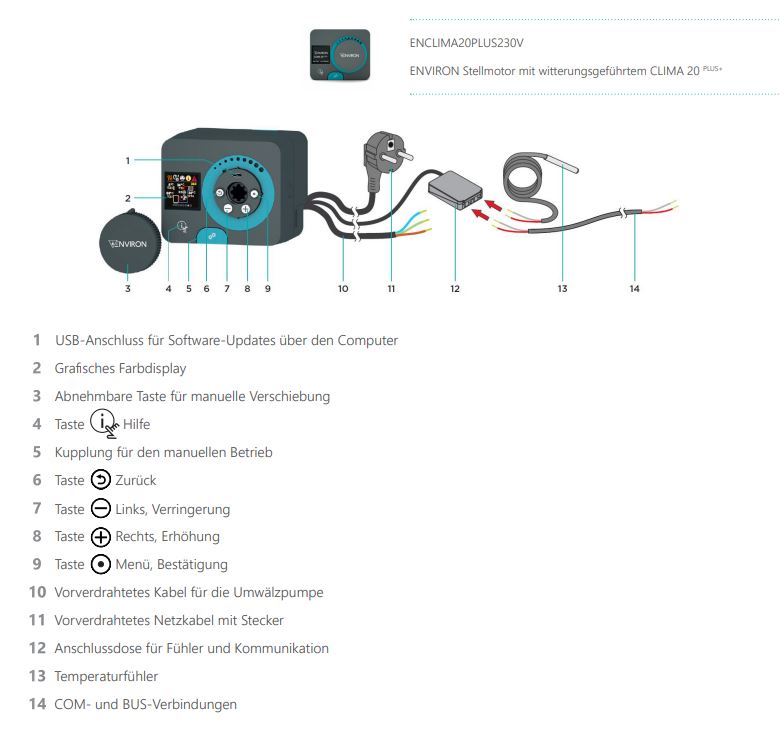

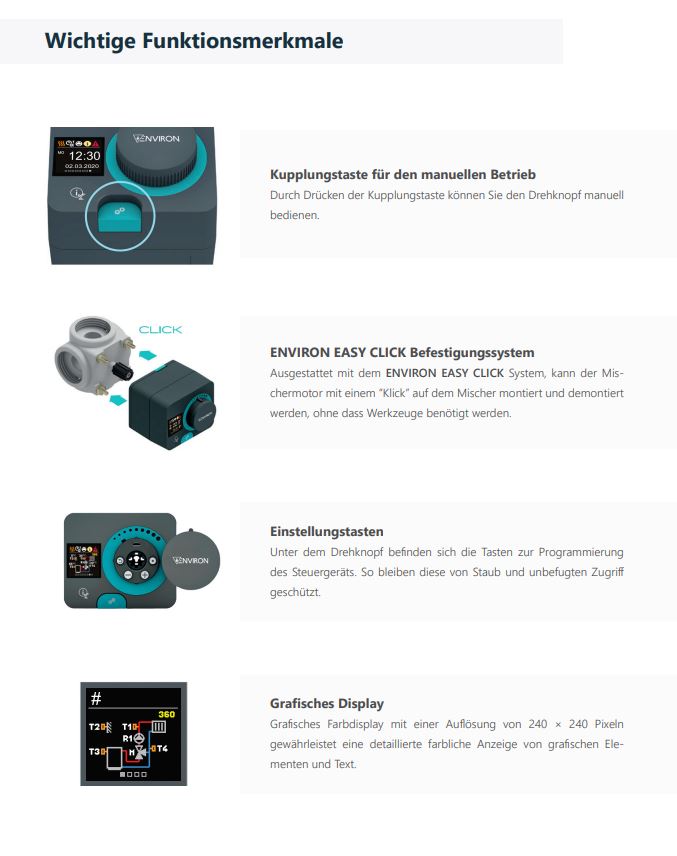

The values ​​to be set can be programmed easily and intuitively using a keypad located under the rotary knob. The color display shows you which settings you are making and guides you step by step through the necessary settings. It also shows you all the current actions and the set temperatures.

It is compatible with mixers from more than 20 different manufacturers.

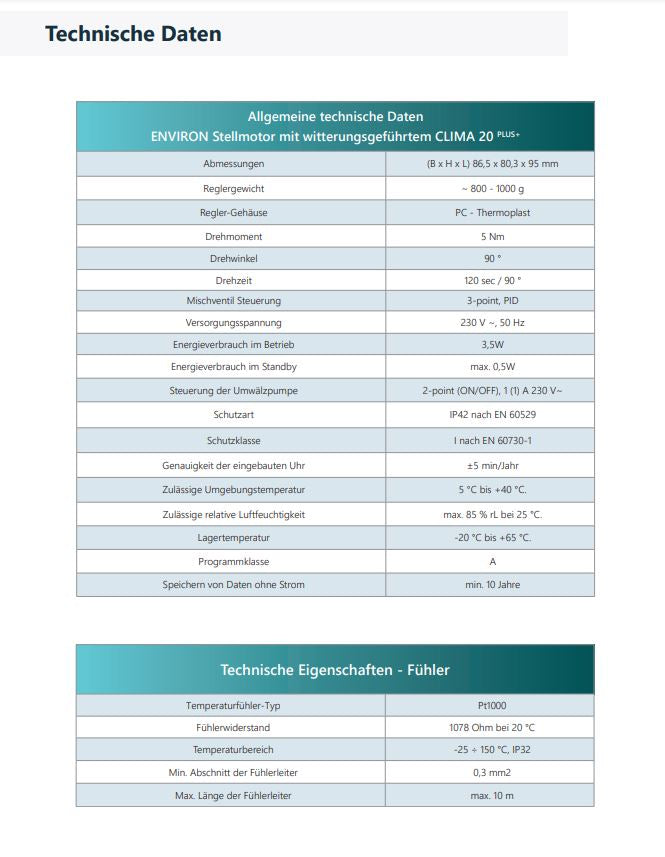

Technical data mixer motor:

▸ Dimensions: (W x H x L) 86.5 x 80.3 x 95 mm
▸ Controller housing: PC - Thermoplastic
▸ Torque: 5 Nm
▸ Angle of rotation: 90 °
▸ Rotation time: 120 sec / 90 °
▸ Mixing valve control: 3-point, PID
▸ Supply voltage: 230 V ~, 50 Hz
▸ Energy consumption during operation: 3.5W
▸ Power consumption in standby: max. 0.5W
▸Control of the circulation pump: 2-point (ON/OFF), 1 (1) A 230 V~
▸ Protection class: IP42 according to EN 60529
▸ Protection class: I according to EN 60730-1
▸ Permissible ambient temperature: 5 °C to +40 °C
▸ Program class: A
▸ Data storage without power: min. 10 years
