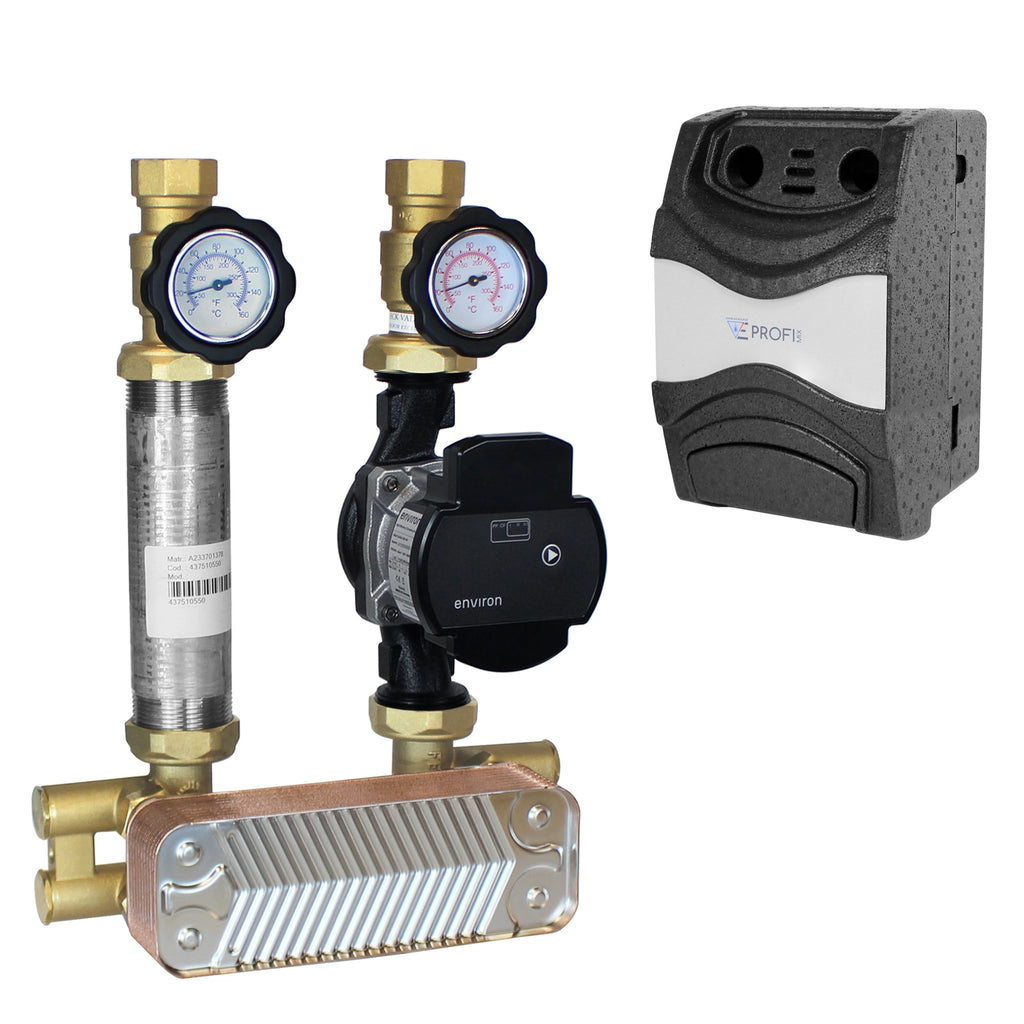

The Environ ProfiMix separation system is suitable for the following applications:

▸ In heating systems with solar panels where the water is heated by cast iron or wood boilers.
▸ In heating systems with old plastic pipes where oxidation could damage the heating system.
▸ When producing domestic water using a buffer storage tank.
▸ To decouple the heating circuit from the boiler circuit or the primary circuit.
▸ The unit is supplied in the standard version without a circulation pump.

Technical data:

▸ Nominal diameter: DN25
▸ Connections: 1" internal thread
▸ Power: 20 kW
▸ Nominal flow rate: 1,000 liters/hour
▸ Number of plates: 20
▸ Max. temperature: 95°C
▸ Nominal pressure: 6 bar

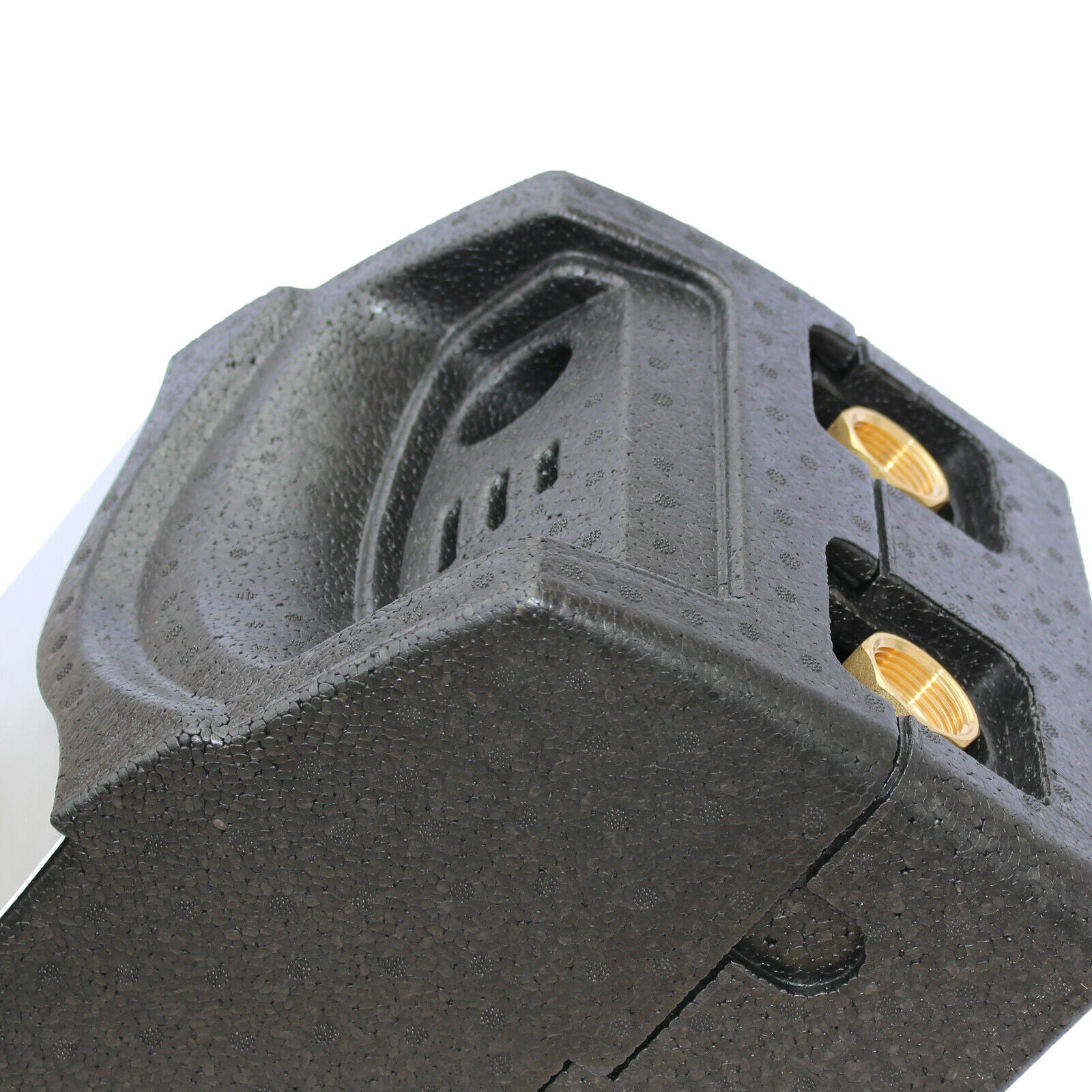

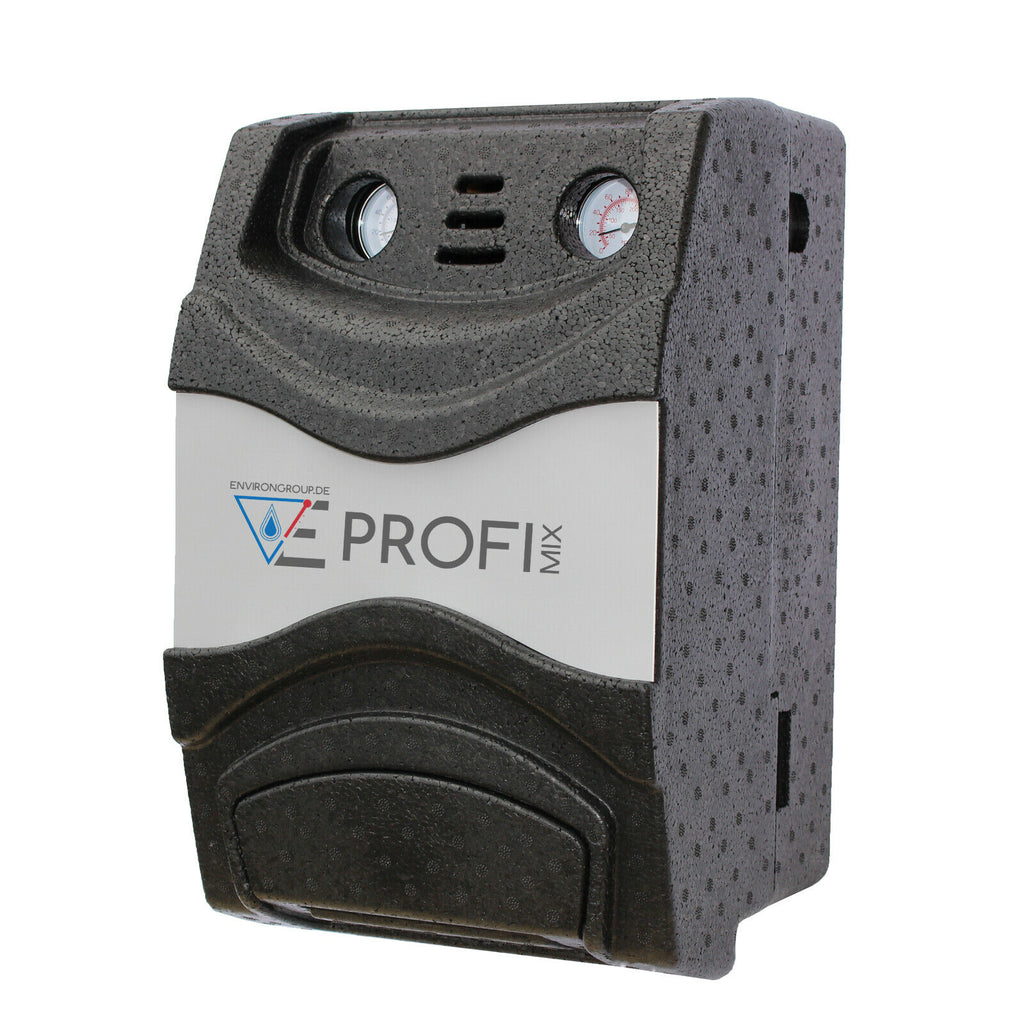

▸ Insulation material: EPP 40 g/l 0.036 W/mK sp 20 mm

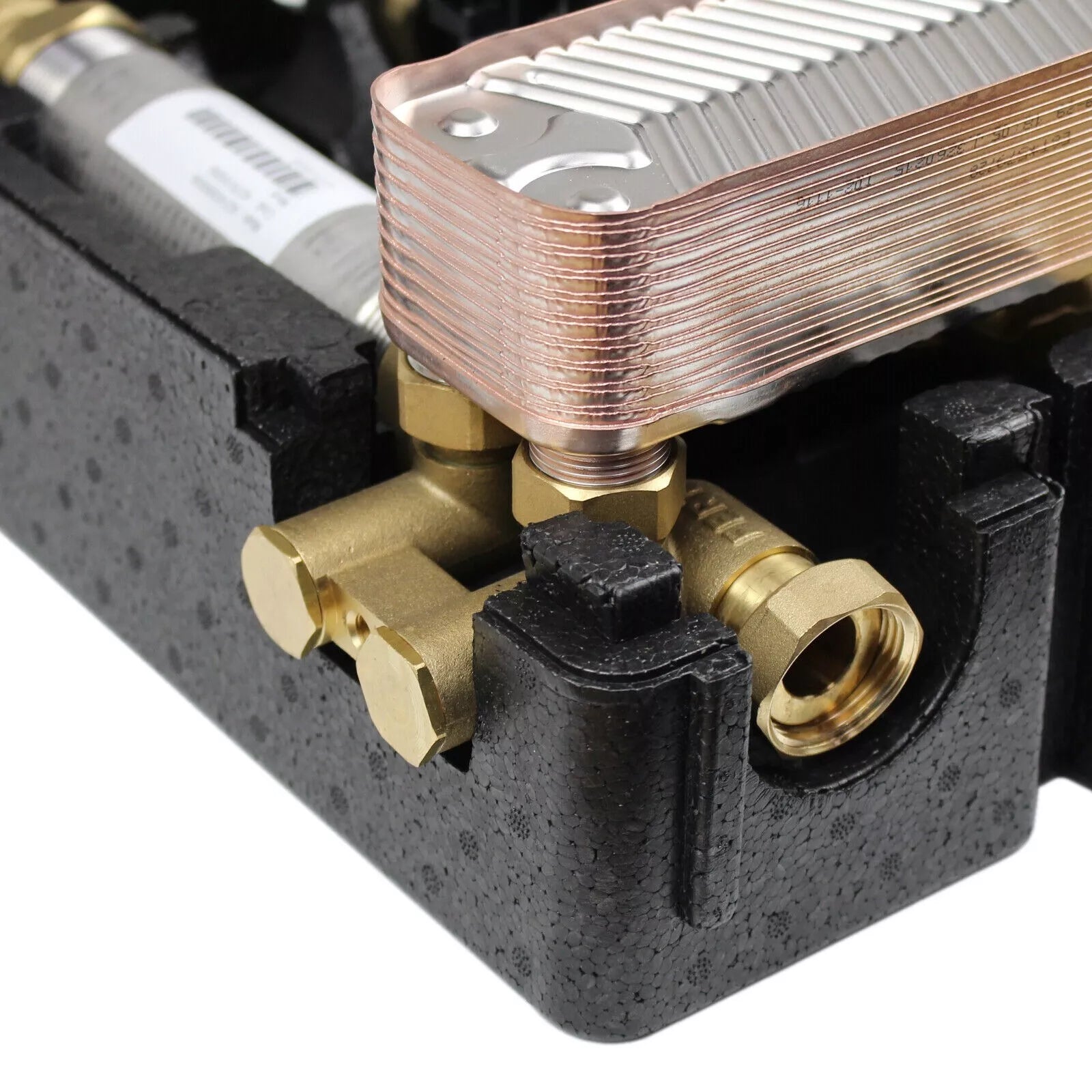

▸ Heat exchanger: stainless steel 316L
▸ Sealing set: Viton / EPDM
▸ Overall dimensions: 280x275x440

Technical data Environ EcoStar 25/6 high-efficiency pump:

▸ Max. delivery height: 6m
▸ Max flow rate: 3.6m³/h
▸ Temperature range: -20°C to +110°C
▸ Power consumption: 3W-43W
▸ Operating pressure: max. 10 bar

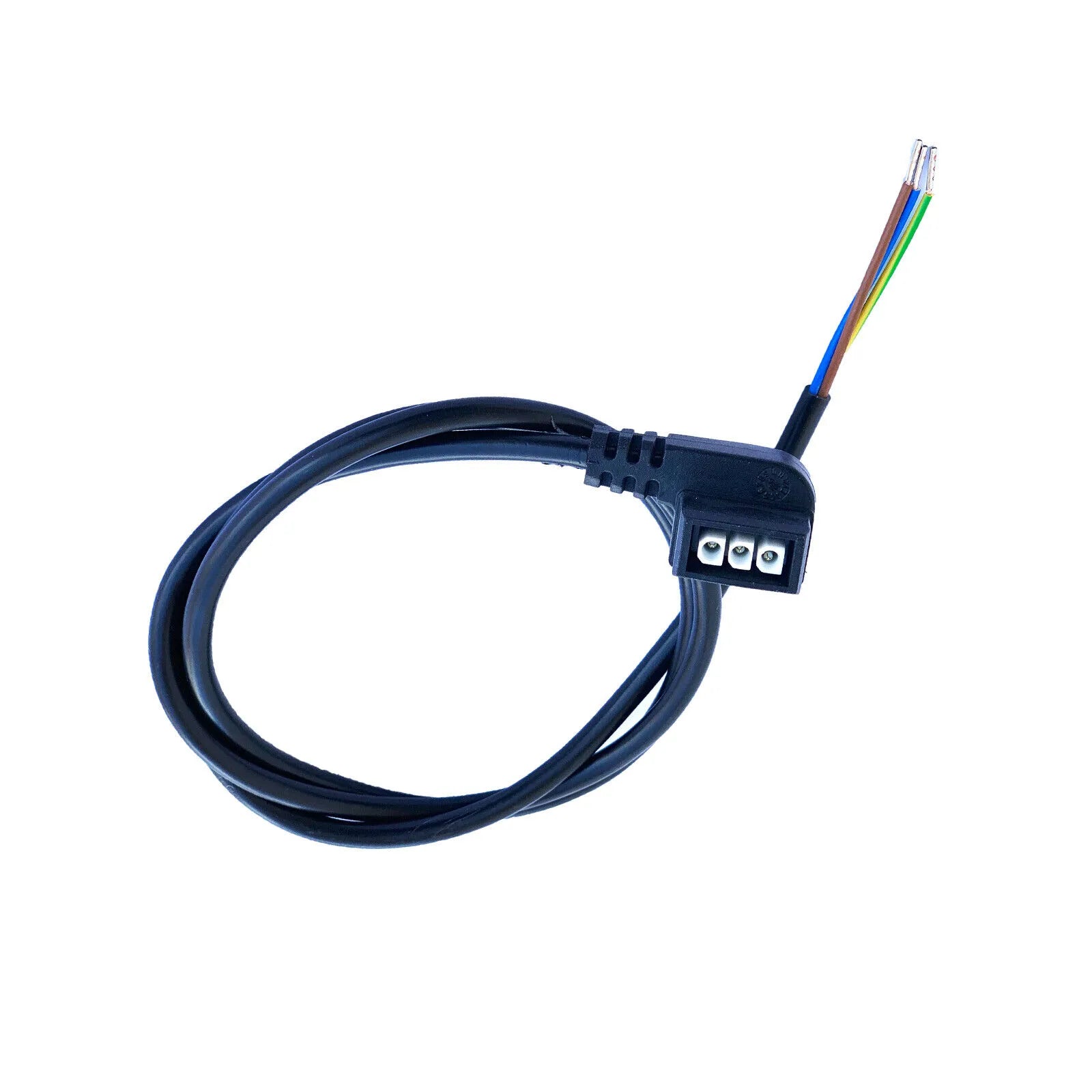

▸ Electrical connection: 230V/50HZ
▸ Supply voltage: 220~240V, 50/60Hz
▸ Protection level: IP44
▸ Insulation class: H
▸ EMC standard: EN61000-6-1 and EN61000-6-3

Manufacturer information:

ENVIRON Energie- und Umwelttechnik GmbH & Co. KG

Robert-Bosch-Straße 9

78048 Villingen-Schwenningen

Phone: +49 7705 977 5803

E- Mail: info@environgroup.de
Website: https://environ-solutions.de/
