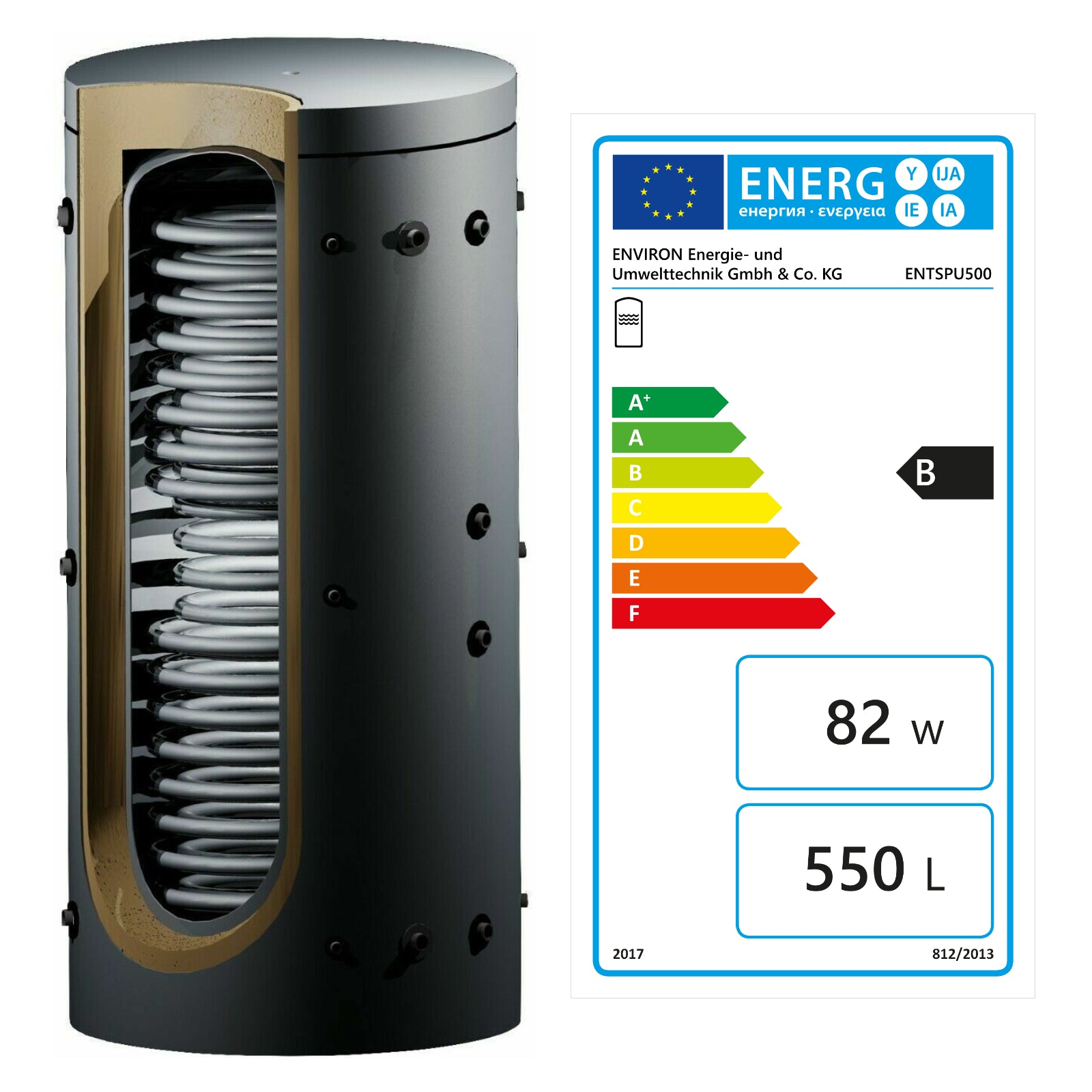

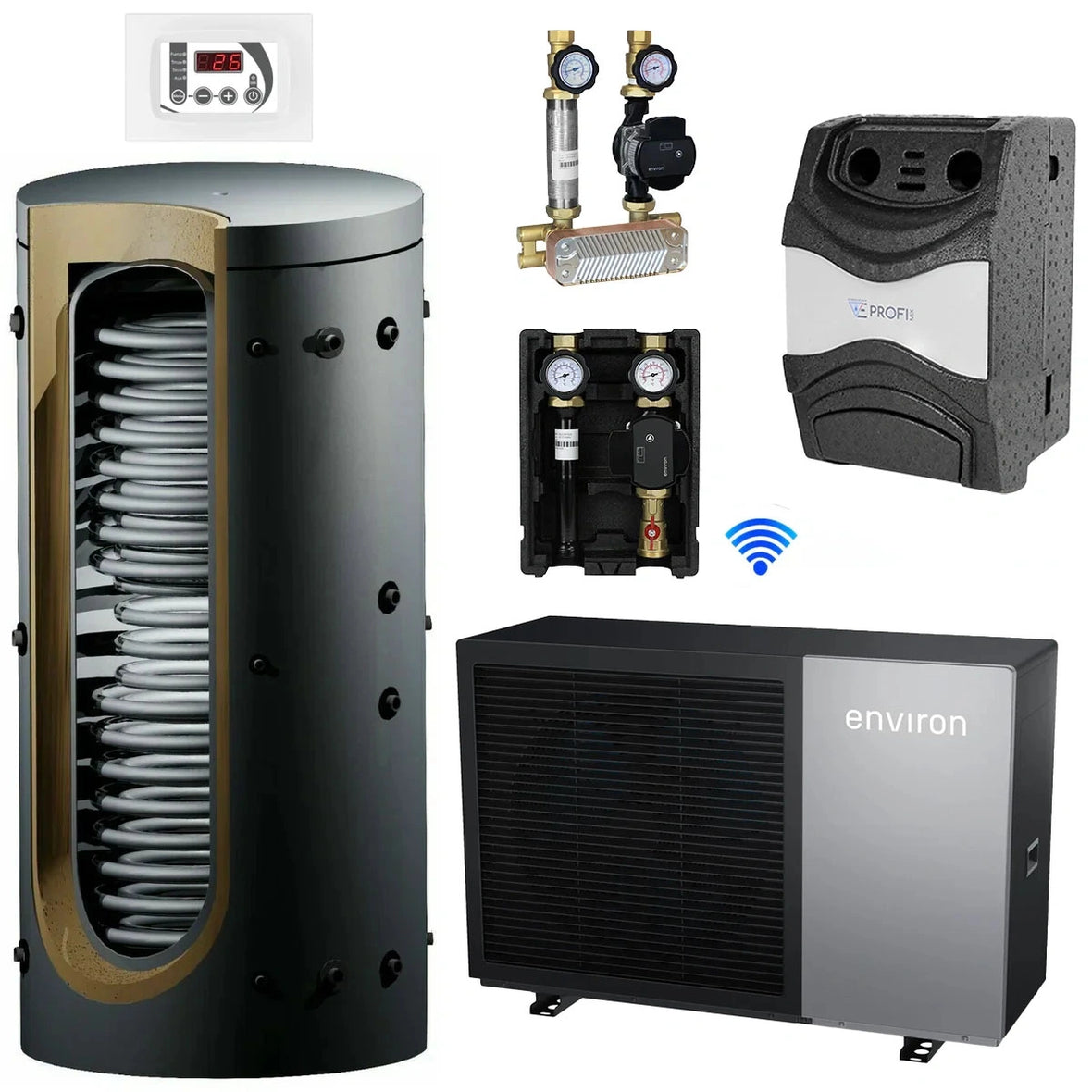

A+++ Mitsui heat pump with 550 liters of hygienic storage for domestic water and heating

1/4

Beschreibung

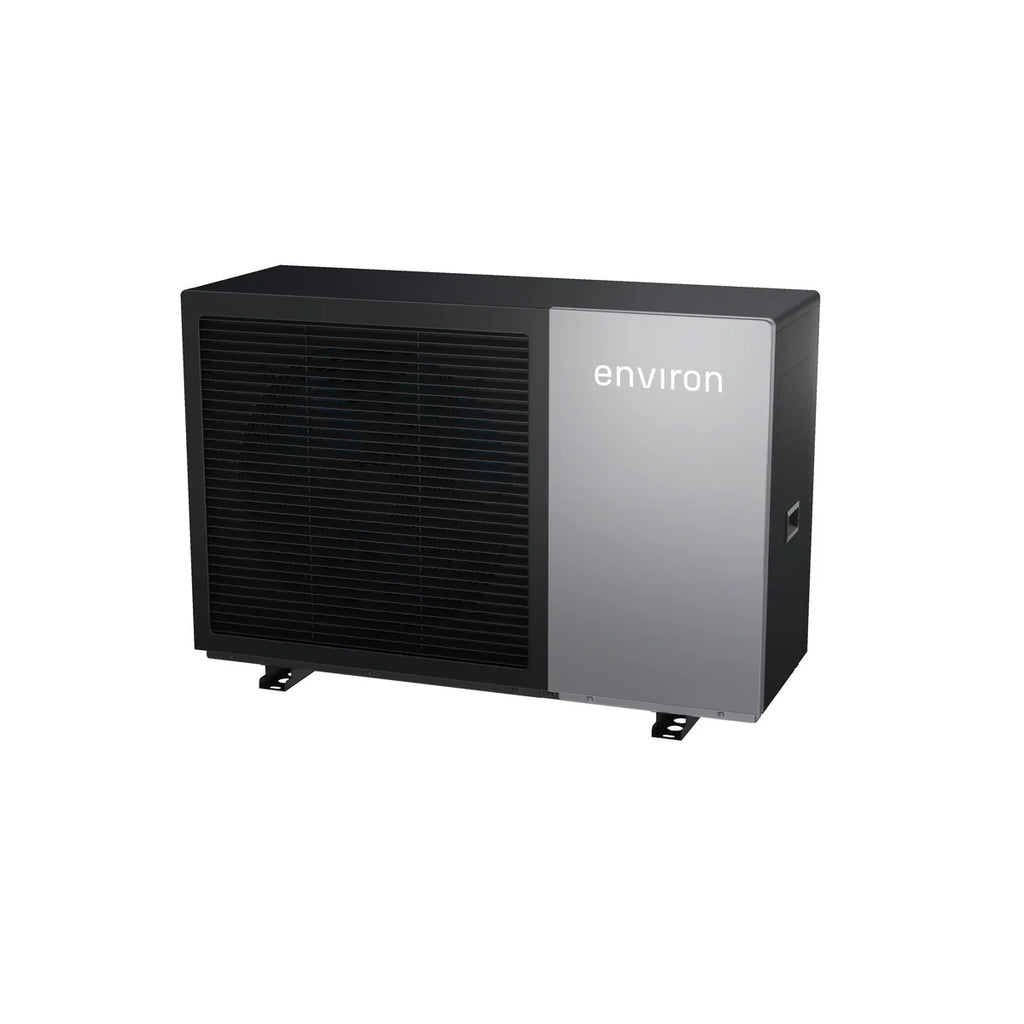

Environ - Mitsui monoblock units are characterized by integrated cooling and hydronic modules that make it possible to extract heat from the outside air and thus heat the interior and vice versa.
They are therefore a bivalent, ecological and renewable solution. They can be positioned directly on the external wall, on the ground or on the roof.

Why choose an Environ - Mitsui heat pump ?

✓ Mitsui systems are able to guarantee high levels of efficiency and adapt to any climatic condition thanks to an appropriate design of the structural components and the thermodynamic cycle. They guarantee synergy between the equipment in the system and adapt to the energy needs to achieve optimal comfort in both winter and summer.
The Mitsui heat pump range offers a wide selection of products ranging from 4 kW (single phase) to 16 kW (three phase), suitable for any type of building, whether it is a renovation or a new build

✓ Mitsui offers two product lines of heat pumps, one for heating and one for domestic hot water: the monoblock line and the split line. Both lines are in class A++ (see European legislation on energy efficiency) and contribute significantly to reducing environmental impact, achieving significant energy savings and reducing operating costs.
In order to fully complete its range of heat pumps, Mitsui has decided to expand its offer to include air-water heat pumps for the production of domestic hot water only. The line of monoblock water heaters is equipped with three different tanks for storing domestic hot water: 100 litres, 180 litres and 280 litres. For the last two sizes, the tanks can be completed with a coil for solar thermal energy or another additional heat source of 1.1 m2 for the second size and 1.3 m2 for the third. This product line guarantees Class A+ according to the ErP directive and helps to limit running costs and environmental impact.

Technical data 5 kW heat pump
▸ Power supply: V/Ph/Hz: 220-240/1/50

▸ Heating² :
▸ Capacity: 4.65 kW
▸ Nominal input power: 0.93 kW
▸ COP: 5.00

▸ Heating³:
▸ Capacity: 4.65 kW
▸ Nominal input power: 1.77 kW
▸ COP: 2.63

▸ Cooling⁴
▸ Capacity: 4.60 kW
▸ Nominal input power: 0.95 kW
▸ EER: 4.82

▸ Cooling⁵
▸ Capacity: 4.85 kW
▸ Nominal input power: 1.63 kW
▸ EER: 2.98

▸ Seasonal room heating Energy efficiency class⁶: LWT at 35 °C: A+++
▸ SCOP6: LWT at 35 °C: 4.47
▸ SEER6:
▸ LWT at 7 °C: 4.71
▸ LWT at 18 °C: 7.61

▸ Sound level⁷: 61 dB(A)
▸ Outdoor fan: air flow 3050 m3/h
▸ Net dimensions (WxHxD): 1210×945×402 mm
▸ Dimensions with packaging (WxHxD): 1500×1140×450 mm
▸ Net/gross weight: 92/111 kg
▸ Water pipe connections: 1” AG BSP
▸ Safety valve response pressure: 0.3 MPa
▸ Total water volume: 2.0 L

▸ Operating temperature range:
▸ Cooling: -5 to 43°C
▸ Heating: -25 to 35°C
▸ DHW: -25 to 43°C

▸ LWT area:
▸ Cooling: 5 to 25
▸ Heating: 25 to 60
▸ DHW: 40 to 60

▸ Refrigerant
▸ Type: R32
▸ Loaded volume: 2.0 kg

▸ Throttle valve type: Electronic expansion valve
▸ Additional electric heating: Optional ✓: 3.0 kW

1. Relevant EU standards and legislation: EN14511: 2016; EN14825: 2016;
EN50564: 2011; EN12102:2017; (EU) N° 811/2013; (EU) N° 813/2013;
OJ 2014/C 207/02; OJ 2017/C 229/01.
2. Outdoor temperature 7°C DB, 85% RH; EWT 30°C, LWT 35°C.
3. Outdoor temperature 7°C DB, 85% RH; EWT 47°C, LWT 55°C.
4. Outside temperature 35°C DB; EWT 23°C, LWT 18°C.
5. Outside temperature 35°C DB; EWT 12°C, LWT 7°C.
6. Energy efficiency class of seasonal space heating, tested under
average climatic conditions
7. Sound power level tested under average climatic conditions:
- heating: outside temperature 7°C DB, 6°C WB; EWT 30°C, LWT 35°C;
- heating: outside temperature 7°C DB, 6°C WB; EWT 47°C, LWT 55°C;
- cooling: outside temperature 35°C DB, 24°C WB; EWT 12°C, LWT 7°C.

Technical data heat pump 7 kW
▸ Power supply: V/Ph/Hz: 220-240/1/50

▸ Heating² :
▸ Capacity: 6.65 kW
▸ Nominal input power: 1.35 kW
▸ COP: 4.94

▸ Heating³:
▸ Capacity: 6.80 kW
▸ Nominal input power: 2.42 kW
▸ COP: 2.81

▸ Cooling⁴
▸ Capacity: 6.45 kW
▸ Nominal input power: 1.39 kW
▸ EER: 4.65

▸ Cooling⁵
▸ Capacity: 6.30 kW
▸ Nominal input power: 2.27 kW
▸ EER: 2.77

▸ Seasonal room heating Energy efficiency class⁶: LWT at 35 °C: A+++
▸ SCOP6: LWT at 35 °C: 4.47
▸ SEER6:
▸ LWT at 7 °C: 4.99
▸ LWT at 18 °C: 8.58

▸ Sound level⁷: 64 dB(A)
▸ Outdoor fan: air flow 3050 m3/h
▸ Net dimensions (WxHxD): 1210×945×402 mm
▸ Dimensions with packaging (WxHxD): 1500×1140×450 mm
▸ Net/gross weight: 92/111 kg
▸ Water pipe connections: 1” AG BSP
▸ Safety valve response pressure: 0.3 MPa
▸ Total water volume: 2.0 L

▸ Operating temperature range:
▸ Cooling: -5 to 43°C
▸ Heating: -25 to 35°C
▸ DHW: -25 to 43°C

▸ LWT area:
▸ Cooling: 5 to 25
▸ Heating: 25 to 60
▸ DHW: 40 to 60

▸ Refrigerant
▸ Type: R32
▸ Loaded volume: 2.0 kg

▸ Throttle valve type: Electronic expansion valve
▸ Additional electric heating: Optional ✓: 3.0 kW

1. Relevant EU standards and legislation: EN14511: 2016; EN14825: 2016;
EN50564: 2011; EN12102:2017; (EU) N° 811/2013; (EU) N° 813/2013;
OJ 2014/C 207/02; OJ 2017/C 229/01.
2. Outdoor temperature 7°C DB, 85% RH; EWT 30°C, LWT 35°C.
3. Outdoor temperature 7°C DB, 85% RH; EWT 47°C, LWT 55°C.
4. Outside temperature 35°C DB; EWT 23°C, LWT 18°C.
5. Outside temperature 35°C DB; EWT 12°C, LWT 7°C.
6. Energy efficiency class of seasonal space heating, tested under
average climatic conditions
7. Sound power level tested under average climatic conditions:
- heating: outside temperature 7°C DB, 6°C WB; EWT 30°C, LWT 35°C;
- heating: outside temperature 7°C DB, 6°C WB; EWT 47°C, LWT 55°C;
- cooling: outside temperature 35°C DB, 24°C WB; EWT 12°C, LWT 7°C.

Technical data heat pump 9 kW
▸ Power supply: V/Ph/Hz: 220-240/1/50

▸ Heating² :
▸ Capacity: 8.60 kW
▸ Nominal input power: 1.87 kW
▸ COP: 4.60

▸ Heating³:
▸ Capacity: 8.60 kW
▸ Nominal input power: 3.13 kW
▸ COP: 2.75

▸ Cooling⁴
▸ Capacity: 8.00 kW
▸ Nominal input power: 1.92 kW
▸ EER: 4.16

▸ Cooling⁵
▸ Capacity: 7.95 kW
▸ Nominal input power: 3.15 kW
▸ EER: 2.53

▸ Seasonal room heating Energy efficiency class⁶: LWT at 35 °C: A+++
▸ SCOP6: LWT at 35 °C: 4.51
▸ SEER6:
▸ LWT at 7 °C: 4.92
▸ LWT at 18 °C: 7.88

▸ Sound level⁷: 67 dB(A)
▸ Outdoor fan: air flow 3050 m3/h
▸ Net dimensions (WxHxD): 1210×945×402 mm
▸ Dimensions with packaging (WxHxD): 1500×1140×450 mm
▸ Net/gross weight: 92/111 kg
▸ Water pipe connections: 1” AG BSP
▸ Safety valve response pressure: 0.3 MPa
▸ Total water volume: 2.0 L

▸ Operating temperature range:
▸ Cooling: -5 to 43°C
▸ Heating: -25 to 35°C
▸ DHW: -25 to 43°C

▸ LWT area:
▸ Cooling: 5 to 25
▸ Heating: 25 to 60
▸ DHW: 40 to 60

▸ Refrigerant
▸ Type: R32
▸ Loaded volume: 2.0 kg

▸ Throttle valve type: Electronic expansion valve
▸ Additional electric heating: Optional ✓: 3.0 kW

1. Relevant EU standards and legislation: EN14511: 2016; EN14825: 2016;
EN50564: 2011; EN12102:2017; (EU) N° 811/2013; (EU) N° 813/2013;
OJ 2014/C 207/02; OJ 2017/C 229/01.
2. Outdoor temperature 7°C DB, 85% RH; EWT 30°C, LWT 35°C.
3. Outdoor temperature 7°C DB, 85% RH; EWT 47°C, LWT 55°C.
4. Outside temperature 35°C DB; EWT 23°C, LWT 18°C.
5. Outside temperature 35°C DB; EWT 12°C, LWT 7°C.
6. Energy efficiency class of seasonal space heating, tested under
average climatic conditions
7. Sound power level tested under average climatic conditions:
- heating: outside temperature 7°C DB, 6°C WB; EWT 30°C, LWT 35°C;
- heating: outside temperature 7°C DB, 6°C WB; EWT 47°C, LWT 55°C;
- cooling: outside temperature 35°C DB, 24°C WB; EWT 12°C, LWT 7°C.

Technical data heat pump 12 kW
▸ Power supply: V/Ph/Hz: 220-240/1/50

▸ Heating² :
▸ Capacity: 12.30 kW
▸ Nominal input power: 2.56 kW
▸ COP: 4.81

▸ Heating³:
▸ Capacity: 11.90 kW
▸ Nominal input power: 4.28 kW
▸ COP: 2.78

▸ Cooling⁴
▸ Capacity: 12.20 kW
▸ Nominal input power: 2.55 kW
▸ EER: 4.78

▸ Cooling⁵
▸ Capacity: 10.90 kW
▸ Nominal input power: 3.74 kW
▸ EER: 2.92

▸ Seasonal room heating Energy efficiency class⁶: LWT at 35 °C: A++
▸ SCOP6: LWT at 35 °C: 4.29
▸ SEER6:
▸ LWT at 7 °C: 4.85
▸ LWT at 18 °C: 7.50

▸ Sound level⁷: 68 dB(A)
▸ Outdoor fan: air flow 6150 m3/h
▸ Net dimensions (WxHxD): 1404×1414×405 mm
▸ Dimensions with packaging (WxHxD): 1475×1580×440
▸ Net/gross weight: 158/178 kg
▸ Water pipe connections: 1 - 1/4” AG BSP
▸ Safety valve response pressure: 0.3 MPa
▸ Total water volume: 5.5 L

▸ Operating temperature range:
▸ Cooling: -5 to 46°C
▸ Heating: -25 to 35°C
▸ DHW: -25 to 43°C

▸ LWT area:
▸ Cooling: 5 to 25
▸ Heating: 25 to 60
▸ DHW: 40 to 60

▸ Refrigerant
▸ Type: R32
▸ Loaded volume: 2.0 kg

▸ Throttle valve type: Electronic expansion valve
▸ Additional electric heating: Optional ✓: 3.0 kW

1. Relevant EU standards and legislation: EN14511: 2016; EN14825: 2016;
EN50564: 2011; EN12102:2017; (EU) N° 811/2013; (EU) N° 813/2013;
OJ 2014/C 207/02; OJ 2017/C 229/01.
2. Outdoor temperature 7°C DB, 85% RH; EWT 30°C, LWT 35°C.
3. Outdoor temperature 7°C DB, 85% RH; EWT 47°C, LWT 55°C.
4. Outside temperature 35°C DB; EWT 23°C, LWT 18°C.
5. Outside temperature 35°C DB; EWT 12°C, LWT 7°C.
6. Energy efficiency class of seasonal space heating, tested under
average climatic conditions
7. Sound power level tested under average climatic conditions:
- heating: outside temperature 7°C DB, 6°C WB; EWT 30°C, LWT 35°C;
- heating: outside temperature 7°C DB, 6°C WB; EWT 47°C, LWT 55°C;
- cooling: outside temperature 35°C DB, 24°C WB; EWT 12°C, LWT 7°C

Technical data heat pump 14 kW
▸ Power supply: V/Ph/Hz 380-415/3/50

heating²
▸ Capacity kW: 14.10
▸ Nominal power input kW: 3.05
▸ COP: 4.63

heating³
▸ Capacity kW: 14.20
▸ Nominal power input kW: 5.10
▸ COP: 2.79

cooling⁴
▸ Capacity kW: 14.00
▸ Nominal power input kW: 3.11
▸ EER: 4.50

cooling⁵
▸ Capacity kW: 12.90
▸ Nominal power input kW: 4.62
▸ EER: 2.80

Seasonal space heating
▸ Energy efficiency class⁶
▸ LWT at 35 °C A++
▸ LWT at 55 °C A++
▸ SCOP6 LWT at 35 °C 4.27
▸ LWT at 55 °C 3.26
▸ SEER6 LWT at 7 °C 4.73
▸ LWT at 18 °C 7.16
▸ Sound level⁷ dB(A) 71

▸ Outdoor fan air flow: m3 /h 6150
▸ Net dimensions (WxHxD) mm: 1404×1414×405
▸ Dimensions with packaging (WxHxD): mm 1475×1580×440
▸ Net/gross weight kg: 172/193
▸ Water pipe connections: mm 1-1/4” Male BSP
▸ Safety valve response pressure: MPa 0.3
▸ Total water quantity: L 5.5

operating temperature range
▸ Cooling: °C -5 to 46
▸ Heating: °C -25 to 35
▸ DHW: °C -25 to 43

LWT area
▸ Cooling: °C 5 to 25
▸ Heating: °C 25 to 60
▸ DHW °C: 40 to 60

▸ Refrigerant type: R32
▸ Loaded volume kg: 2.8
▸ Throttle valve type Electronic expansion valve

1. Relevant EU standards and legislation: EN14511: 2016; EN14825: 2016;
EN50564: 2011; EN12102:2017; (EU) N° 811/2013; (EU) N° 813/2013;
OJ 2014/C 207/02; OJ 2017/C 229/01.
2. Outdoor temperature 7°C DB, 85% RH; EWT 30°C, LWT 35°C.
3. Outdoor temperature 7°C DB, 85% RH; EWT 47°C, LWT 55°C.
4. Outside temperature 35°C DB; EWT 23°C, LWT 18°C.
5. Outside temperature 35°C DB; EWT 12°C, LWT 7°C.
6. Energy efficiency class of seasonal space heating, tested under
average climatic conditions
7. Sound power level tested under average climatic conditions:
- heating: outside temperature 7°C DB, 6°C WB; EWT 30°C, LWT 35°C;
- heating: outside temperature 7°C DB, 6°C WB; EWT 47°C, LWT 55°C;
- cooling: outside temperature 35°C DB, 24°C WB; EWT 12°C, LWT 7°C.
Electric auxiliary heating Optional kW 3.0

Technical data heat pump 16 kW
▸ Power supply V/Ph/Hz 380-415/3/50

heating²
▸ Capacity kW: 16.30
▸ Rated input power kW: 3.63
▸ COP: 4.49

heating³
▸ Capacity kW: 16.10
▸ Nominal power input kW: 5.83
▸ COP: 2.76

cooling⁴
▸ Capacity kW: 15.50
▸ Rated input power kW: 3.63
▸ EER: 4.27

cooling⁵
▸ Capacity kW: 13.80
▸ Nominal power input kW: 5.19
▸ EER: 2.66

Seasonal space heating
▸ Energy efficiency class⁶
▸ LWT at 35 °C A++
▸ LWT at 55 °C A++
▸ SCOP6 LWT at 35 °C 4.30
▸ LWT at 55 °C 3.27
▸ SEER6 LWT at 7 °C 4.54
▸ LWT at 18 °C 6.78
▸ Sound level⁷ dB(A): 71
▸ Outdoor fan air flow: m3 /h 6150

▸ Net dimensions (WxHxD): mm 1404×1414×405
▸ Dimensions with packaging (WxHxD): mm 1475×1580×440
▸ Net/gross weight kg: 172/193
▸ Water pipe connections: mm 1-1/4” Male BSP
▸ Safety valve response pressure: MPa 0.3
▸ Total water quantity: L 5.5

operating temperature range
▸ Cooling °C -5 to 46
▸ Heating °C -25 to 35
▸ DHW °C -25 to 43
▸ LWT area
▸ Cooling °C 5 to 25
▸ Heating °C 25 to 60
▸ DHW °C 40 to 60
▸ Refrigerant type R32
▸ Loaded volume kg 2.8
▸ Throttle valve type Electronic expansion valve
▸ Electric auxiliary heating Optional kW 3.0

1. Relevant EU standards and legislation: EN14511: 2016; EN14825: 2016;
EN50564: 2011; EN12102:2017; (EU) N° 811/2013; (EU) N° 813/2013;
OJ 2014/C 207/02; OJ 2017/C 229/01.
2. Outdoor temperature 7°C DB, 85% RH; EWT 30°C, LWT 35°C.
3. Outdoor temperature 7°C DB, 85% RH; EWT 47°C, LWT 55°C.
4. Outside temperature 35°C DB; EWT 23°C, LWT 18°C.
5. Outside temperature 35°C DB; EWT 12°C, LWT 7°C.
6. Energy efficiency class of seasonal space heating, tested under
average climatic conditions
7. Sound power level tested under average climatic conditions:
- heating: outside temperature 7°C DB, 6°C WB; EWT 30°C, LWT 35°C;
- heating: outside temperature 7°C DB, 6°C WB; EWT 47°C, LWT 55°C;
- cooling: outside temperature 35°C DB, 24°C WB; EWT 12°C, LWT 7°C.

Manufacturer information:

ENVIRON Energie- und Umwelttechnik GmbH & Co. KG

Robert-Bosch-Straße 9

78048 Villingen-Schwenningen

Phone: +49 7705 977 5803

E- Mail: info@environgroup.de
Website: https://environ-solutions.de/

Holistic Energy Concepts GmbH & Co. KG

Überaucher Straße 9/1

78052 Villingen-Schwenningen

Germany

Phone: +49 7705 9769690

Email: info@ganzheitliche-energiekonzepte.de

Website: www.mitsuiheatpumps.com

Downloads

ENVIRON

4 reviews

4,5 (4)

A+++ Mitsui heat pump with 550 liters of hygienic storage for domestic water and heating

Item No.: 0746052539227

Energie sparen: Aus 1 kWh Strom wird ein Vielfaches an Wärme dank Panasonic DC-Inverter
Zuverlässig im Winter: EVI-Einspritztechnik liefert Heizleistung bis in tiefe Minusgrade
Hoher Hygienestandard: Frischwasser im Durchlaufprinzip mit Legionellenschutz
Passgenau dimensioniert: Vier Leistungsstufen von 6 bis 24 kW wählbar

Energieeffizienz A+++

Power level: 5kW

Variant

Price:

6.554,99€

Tax included Shipping calculated at checkout

6.554,99€

inkl. MwSt. · zzgl. Versand

Wieder lieferbar ab dem 30.09.2026

Pickup available in Villingen-Schwenningen

Pick up your product directly from us - no shipping time.

Select “Pick up” at checkout.

Matching this product

Set of 2 damping bases / floor consoles 600mm for heat pumps / air conditioning systems Anti Vibration feet

69,99€ 49,99€

Frostschutzventil 2er-Set 1" AG – DN25 Wärmepumpe Vor- und Rücklauf

99,98€

Thermokom Plus 50 micro-throttle tank / defrost compensator / micro tank

962,75€ 299,99€

Sold out

Stainless steel heating rod 1 1/2" 3 kW, 6 kW, 9 kW & 12 kW

59,99€

Raumthermostat ENRTH3 Unterputz & Aufputz 230V – digital mit WLAN, App-Steuerung, Heizen & Kühlen

79,99€ 59,99€

Magnet-Kugelhahn 1 1/4" DN32 – mit Filter & Magnet

59,99€

Complete Your Set

The pre-selected products are perfectly tailored to your product.

Your set benefits at a glance:

Perfekt aufeinander abgestimmte Komponenten
Alles in einer Lieferung, sofort startklar
Von Profis zusammengestellt

A+++ Mitsui heat pump with 550 liters of hygienic storage for domestic water and heating Power level 6.554,99€

Set of 2 damping bases / floor consoles 600mm for heat pumps / air conditioning systems Anti Vibration feet ~~69,99€~~ 49,99€

Frostschutzventil 2er-Set 1" AG – DN25 Wärmepumpe Vor- und Rücklauf 99,98€

Thermokom Plus 50 micro-throttle tank / defrost compensator / micro tank ~~962,75€~~ 299,99€

Stainless steel heating rod 1 1/2" 3 kW, 6 kW, 9 kW & 12 kW Performance 59,99€

Raumthermostat ENRTH3 Unterputz & Aufputz 230V – digital mit WLAN, App-Steuerung, Heizen & Kühlen ~~79,99€~~ 59,99€

Magnet-Kugelhahn 1 1/4" DN32 – mit Filter & Magnet 59,99€

Reviews

5 stars: 2 (50%)
4 stars: 2 (50%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Rundum stimmig!

Hab den Artikel eingebaut und bin zufriden. Die Lösung rund um Leistungsdaten ist angenehm unkompliziert.

Passt gut.

kann man kurz machen: Aufbau stimmt, Lautstärke stimmt, Gesamteindruck stimmt.

Gute Qualität!

EcoHeat Wärmepumpe Set mit 550 Liter Hygienespeicher eingebaut, kurz geprüft, alles pasend. Besonders der Punkt Anschlussmöglichkeiten wirkt gut gelöst.

Gute Ausführung!

Aufbau: gut. Leistungsdaten: ebenfalls gut. Gesamt: sehr stimmig.

ENVIRON

Premium-Systemtechnik für Heizung und Klima

Wärmepumpen, Pumpengruppen, Verteilersysteme und Regelungstechnik aus eigener Fertigung innerhalb der environ Group. Individuelle Anlagenkonfigurationen, SG-Ready-fähige Wärmepumpen und integrierter Energiemanager stehen für ein durchgängig aufeinander abgestimmtes Premium-Sortiment.

Alle Produkte von ENVIRON

Product Highlights

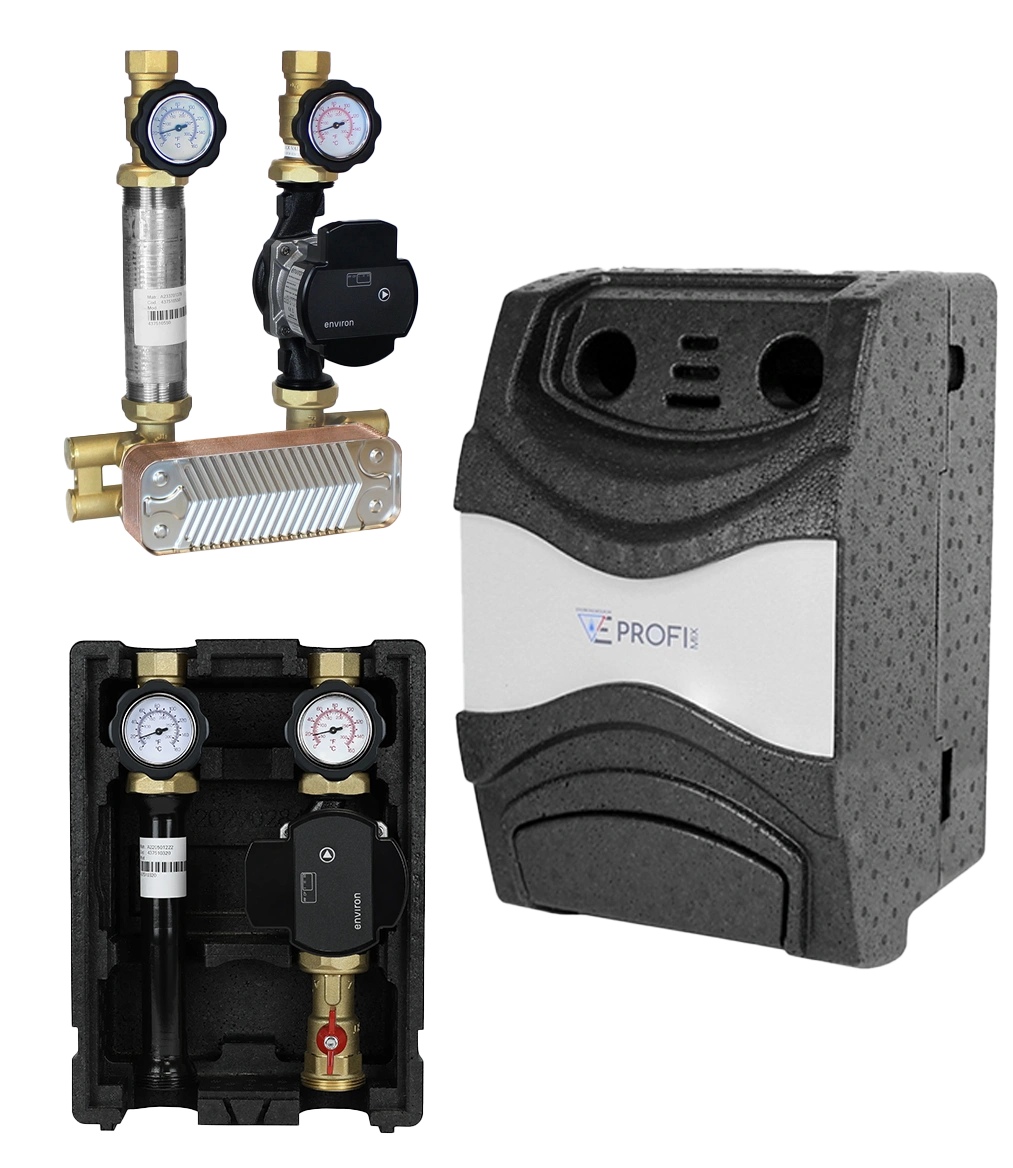

Komplettset – Wärmepumpe, 550-l-Hygienespeicher und Pumpengruppen abgestimmt
Energieeffizienzklasse A+++ mit hohem SCOP
Förderfähig über die BEG (KfW) – Energieberatung auf Wunsch vermittelbar
3 in 1 – Heizen, Kühlen und Warmwasser
WLAN-Modul serienmäßig – Steuerung per Smart-Life-App

Hochklassige Energieeffizienzklasse

Förderfähig (BEG/KfW)

Legionellenfreie Warmwasserbereitung

ganz24depot.com - More Than Just an Online Store

With us, you’ll find not only a diverse selection of top-quality products, but also personalized, comprehensive advice and support with planning, commissioning, applying for grants, and more - everything you need to find the perfect solution for your needs.
