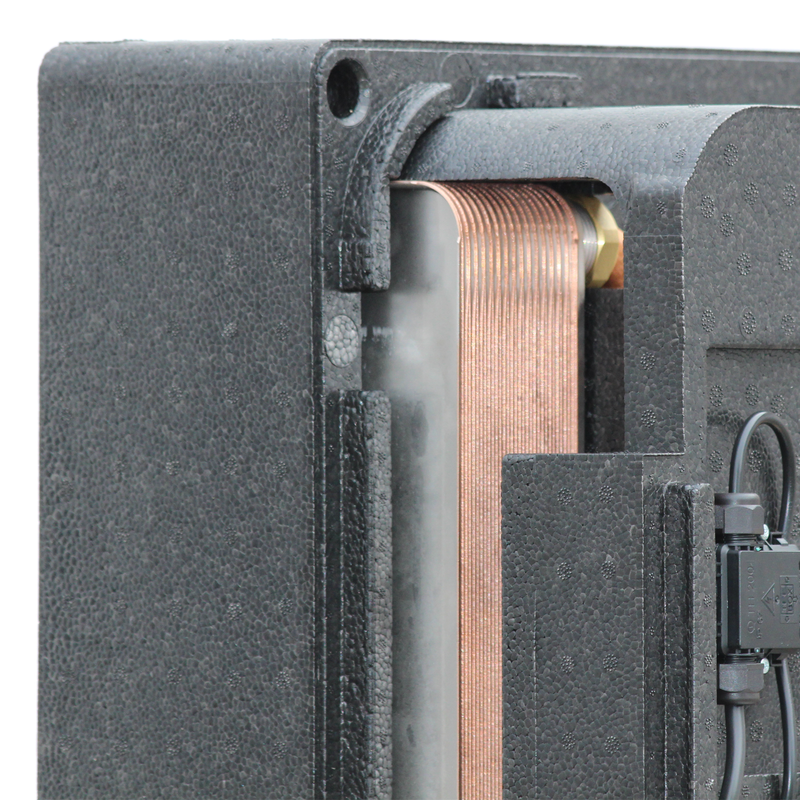

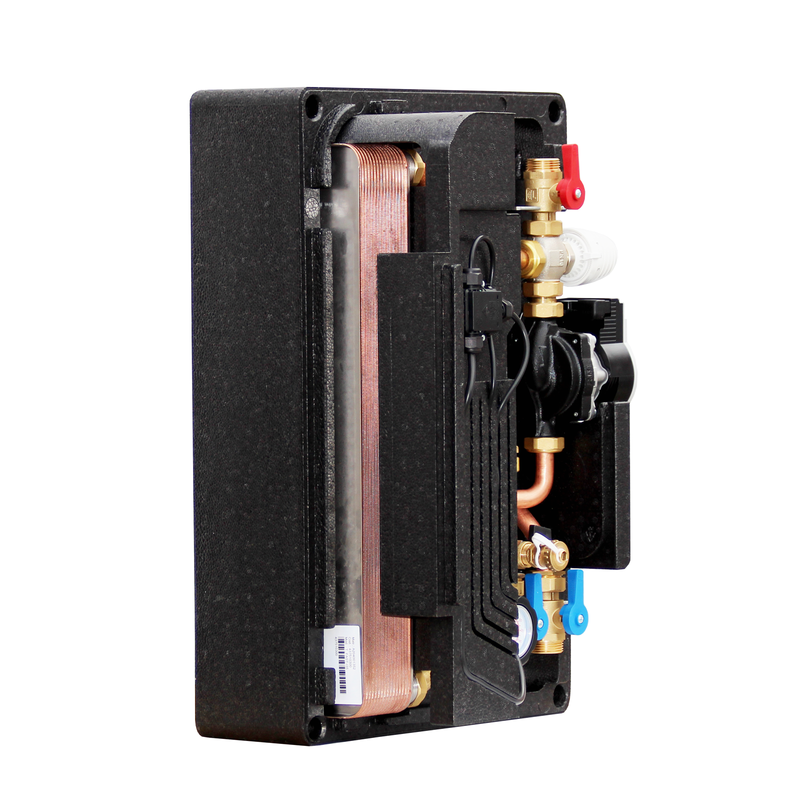

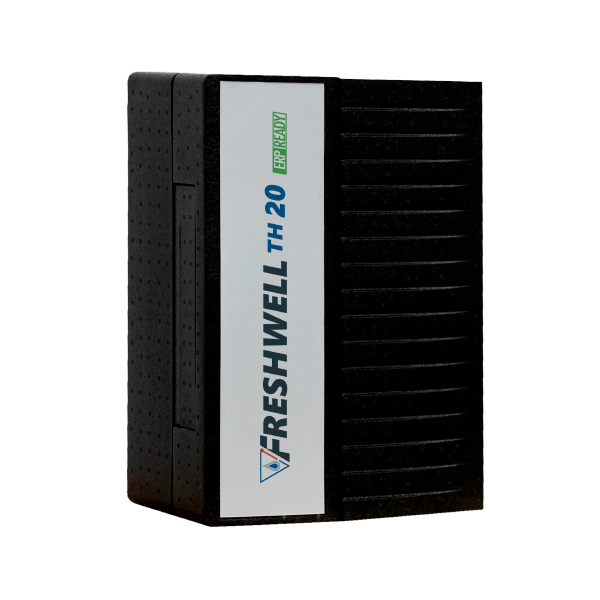

Environ Freshwell fresh water station TH20 is a station for immediate fresh water production, which works according to the copper-brazed plate heat exchanger principle and is widely used in conjunction with buffer storage tanks.

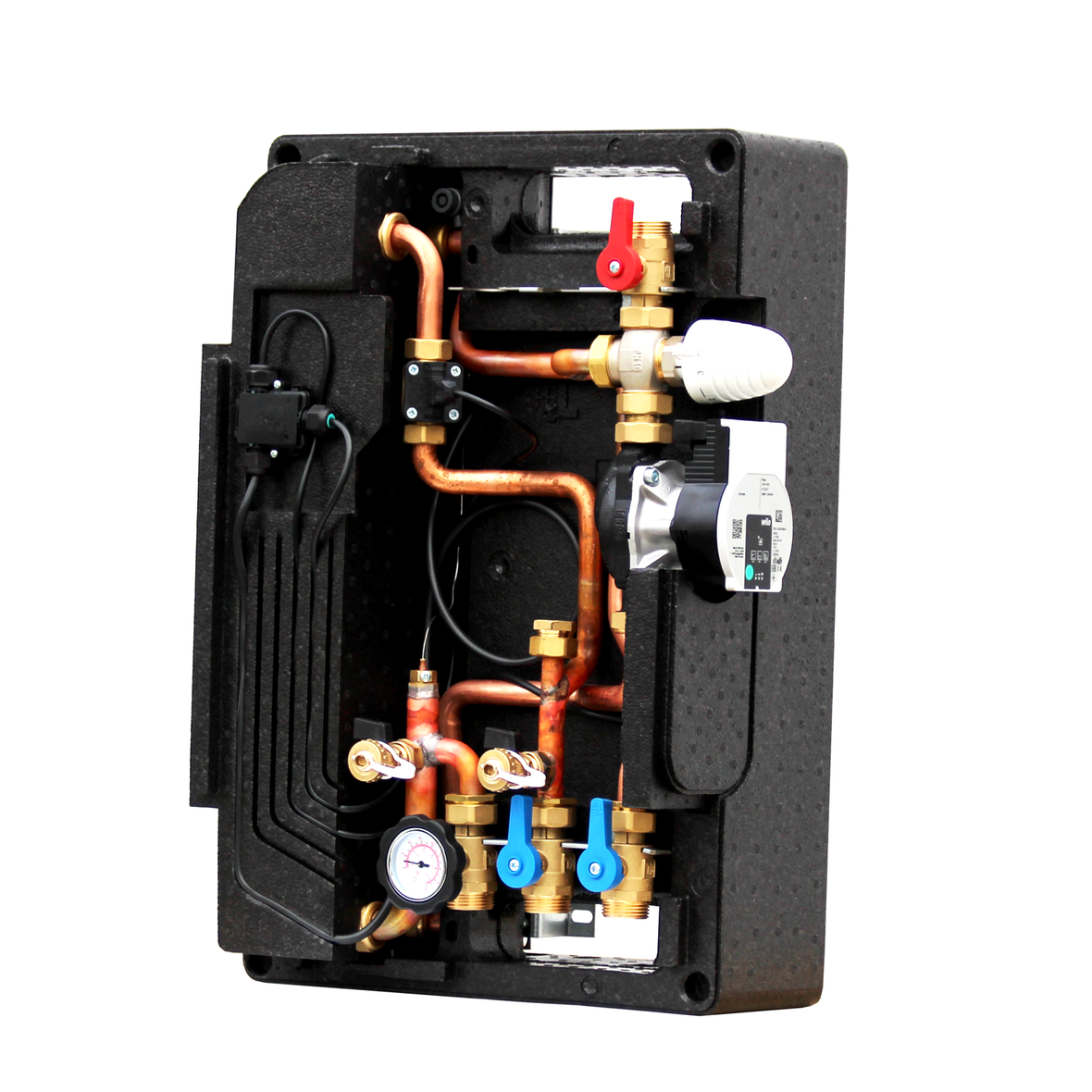

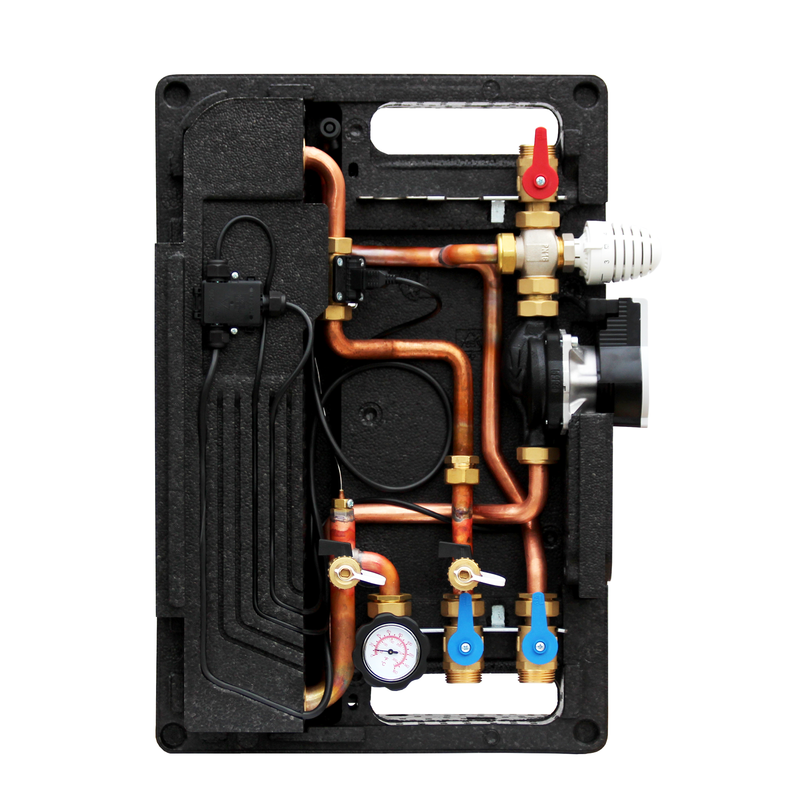

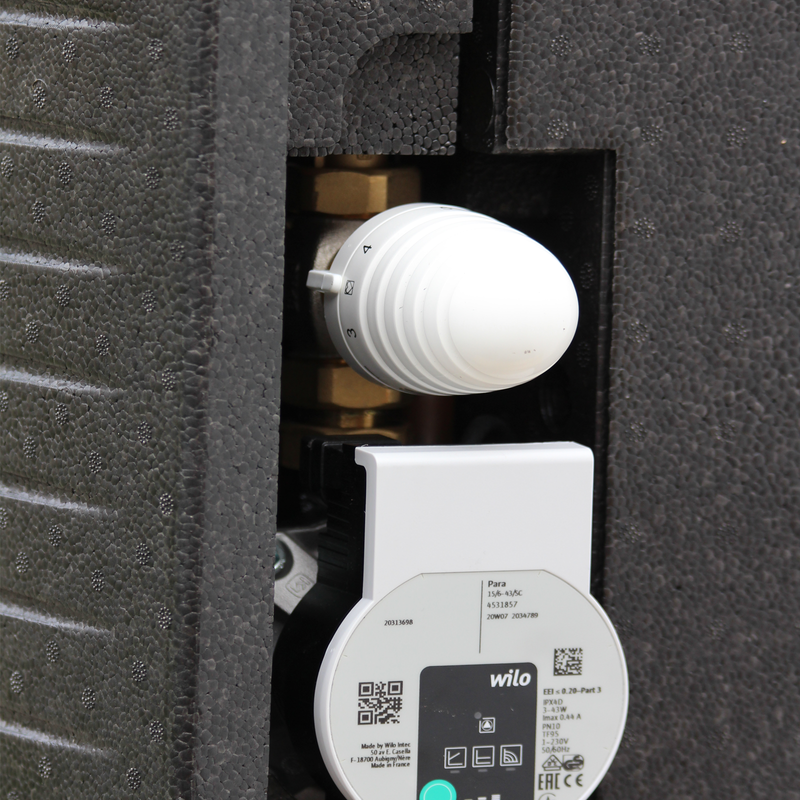

The hot water temperature is adjusted by means of the thermostatic mixing of the heating medium in the primary circuit. The circulation pump of the primary circuit is controlled by a switch.
Technical data:
▸ Max. primary flow rate: 1,200 l/h
▸ Max. output secondary: 30 l/min
▸ Fresh water setting range: 40-55°C
▸ Max. working pressure: 6 bar
▸ Electrical supply: 230 V AC, 50/60 Hz - 45 W
▸ Min power hot water production: 2.5 ± 0.3 l/min

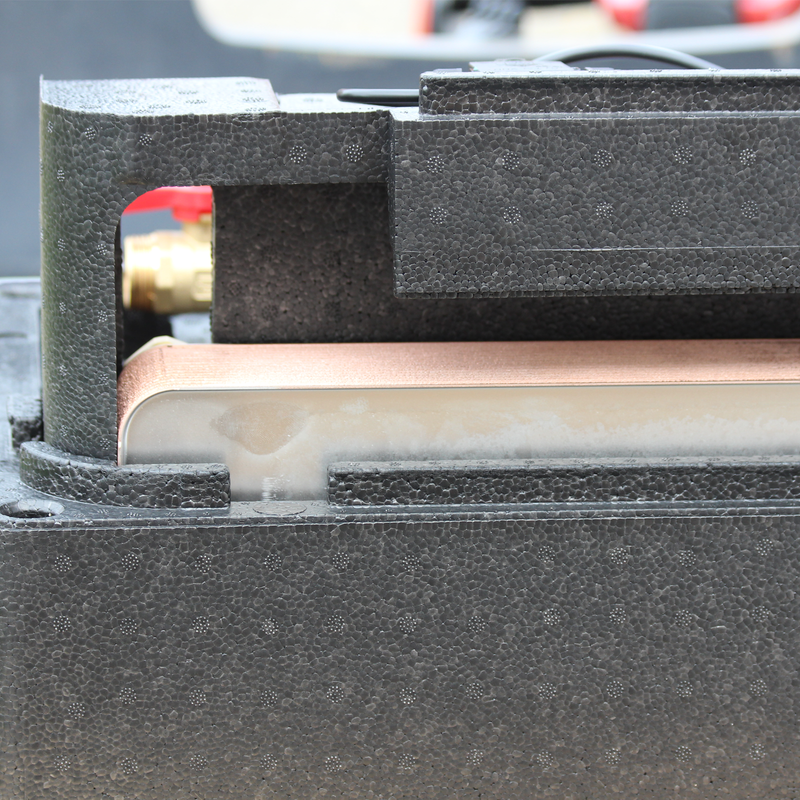

▸ Exchange area of the plate heat exchanger: 0.882 m2
▸ Dimensions: 400x600x250 mm
Advantages of the Environ Freshwell TH20:
✓ Hot water on request without storage in large buffer tank
✓ Nominal hot water supply 20 l/min
✓ High hot water output thanks to the enlarged steel heat exchanger
✓ Maximum reduction of water stagnation and legionella risk

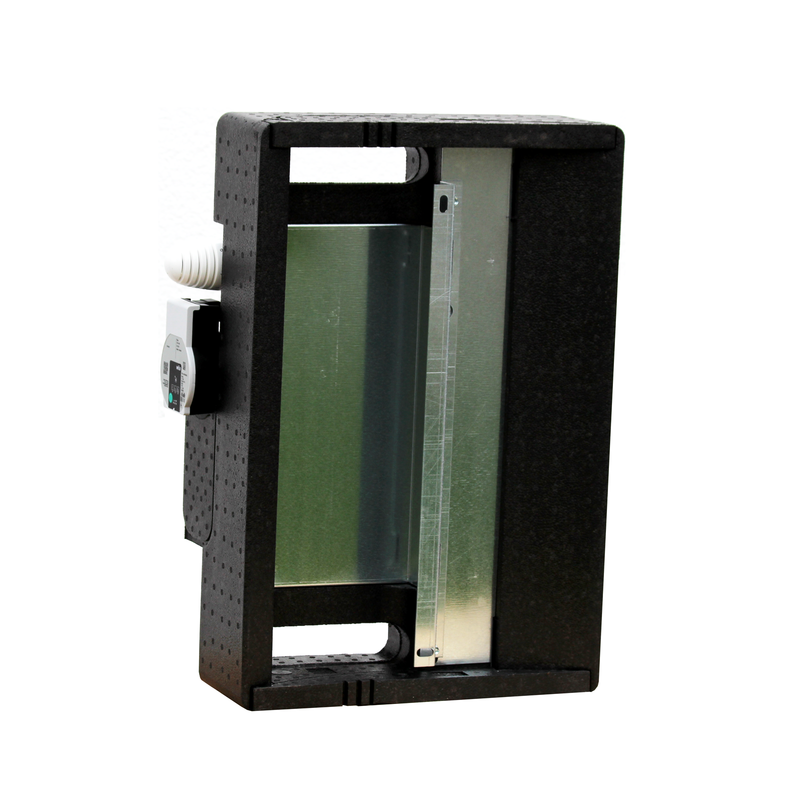

✓ Installation both on the wall and buffer tank
✓ Quick installation and easy maintenance
✓ Can be combined with any type of heat generator

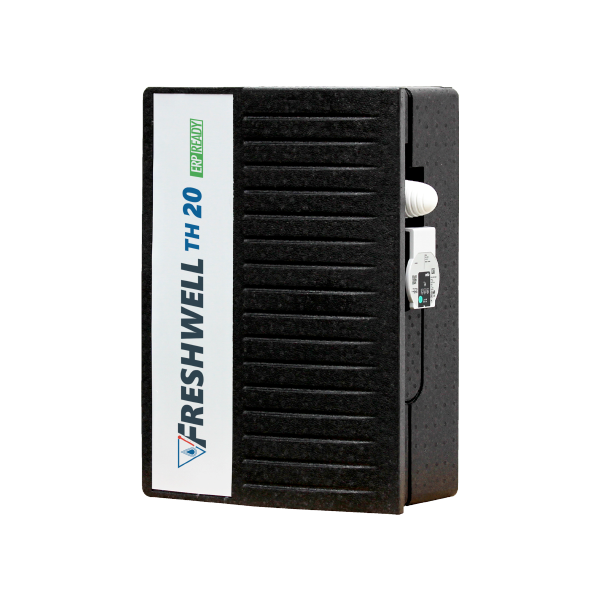

✓ Complete with thermal insulation
Manufacturer information:
ENVIRON Energie- und Umwelttechnik GmbH & Co. KG
Robert-Bosch-Straße 9
78048 Villingen-Schwenningen
Phone: +49 7705 977 5803
E- Mail: info@environgroup.de
Website: https://environ-solutions.de/
