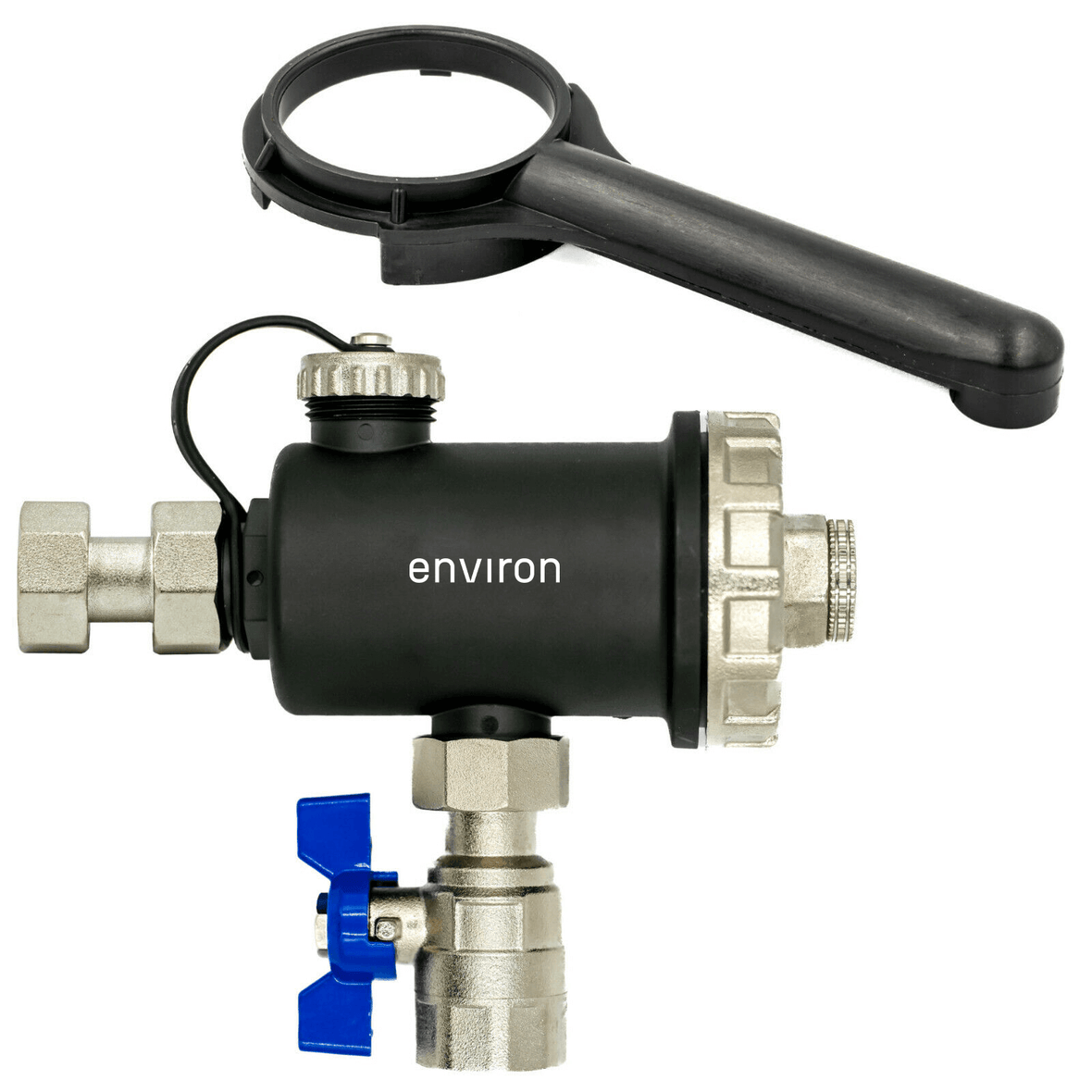

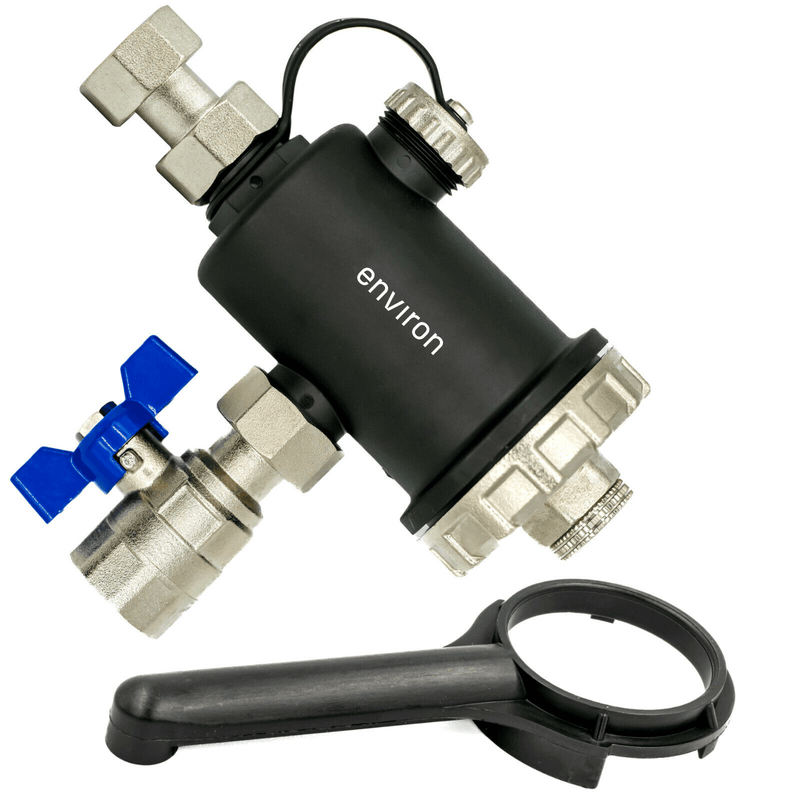

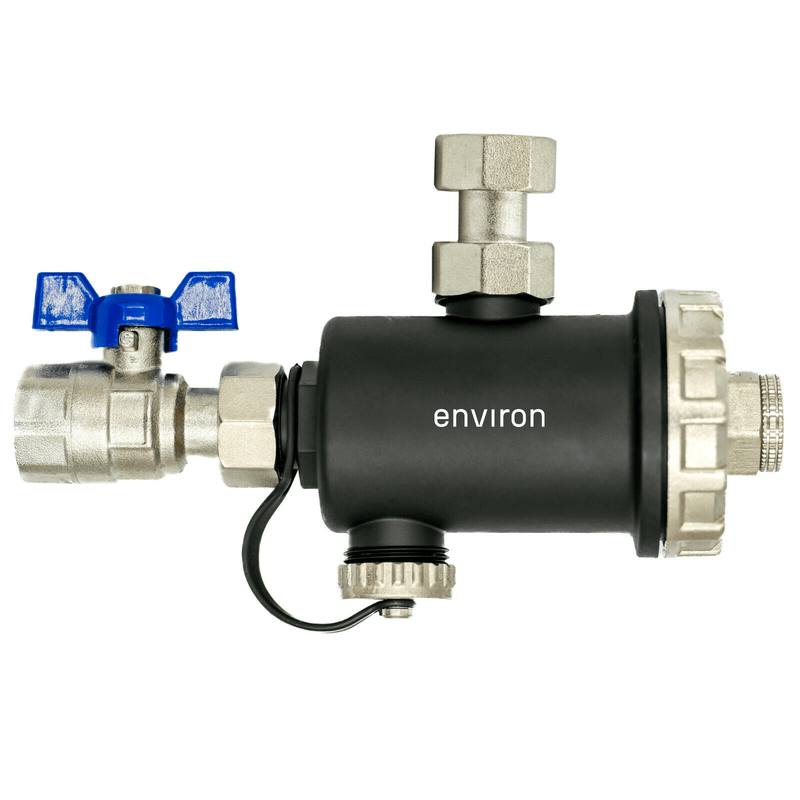

Compact sludge separator with magnet 3/4" including drain tap and cleaning key

The Environ compact dirt separator with magnet 3/4" is the perfect solution to effectively combat contamination in central heating systems. Modern heating systems, especially those with highly efficient boiler-operated systems, are prone to failures and loss of performance due to contamination with iron oxides - the main component of rust. These are caused by corrosion and settle as sediments in the system. The iron oxide particles circulate throughout the heating circuit, collect at critical points in the installation and can lead to failures of pumps, valves or heat exchangers. This not only reduces the efficiency of the boiler, but also significantly increases heating costs.

Advantages of the Environ Compact Sludge Separator

The Environ compact dirt separator allows you to protect the entire heating system by effectively removing the majority of solid contaminants, including suspended iron and iron oxides. This filter is ideal for systems in which there is constant circulation of the heating medium. The heating medium can consist of water and glycol solutions, with the glycol content not exceeding 50%. The filter is also suitable for use in solar and cooling systems and can also retain contaminants such as sand.

Areas of application and advantages at a glance

- Central heating systems and solar systems: Universally applicable in various systems.
- Double filtration: maximum efficiency in dirt removal.
- Easy removal of dirt: Practical and user-friendly.
- High magnetic force: Strong magnetic power for effective filtration.
- High-quality materials: durable and robust.

Technical data

- Max. operating pressure: 6 bar / 0.6 MPa
- Max. liquid temperature: 90°C
- Filtration: ≥500μm
- Max. flow rate: 30 l/min
- Magnetic force: 9000 Gauss
- Connection: 3⁄4”
- Material: PA66 + glass fiber / copper, stainless steel
- Weight: approx. 750 g
- Dimensions (L x W): approx. 11.4 cm x 19 cm

scope of delivery

- Environ compact sludge separator with magnet 3/4"
- drain tap
- cleaning key

The Environ compact sludge separator with magnet 3/4" including drain tap and cleaning key is the ideal solution to ensure the efficiency and longevity of your heating system. Invest in the protection of your system and benefit from higher heating output at lower costs.
