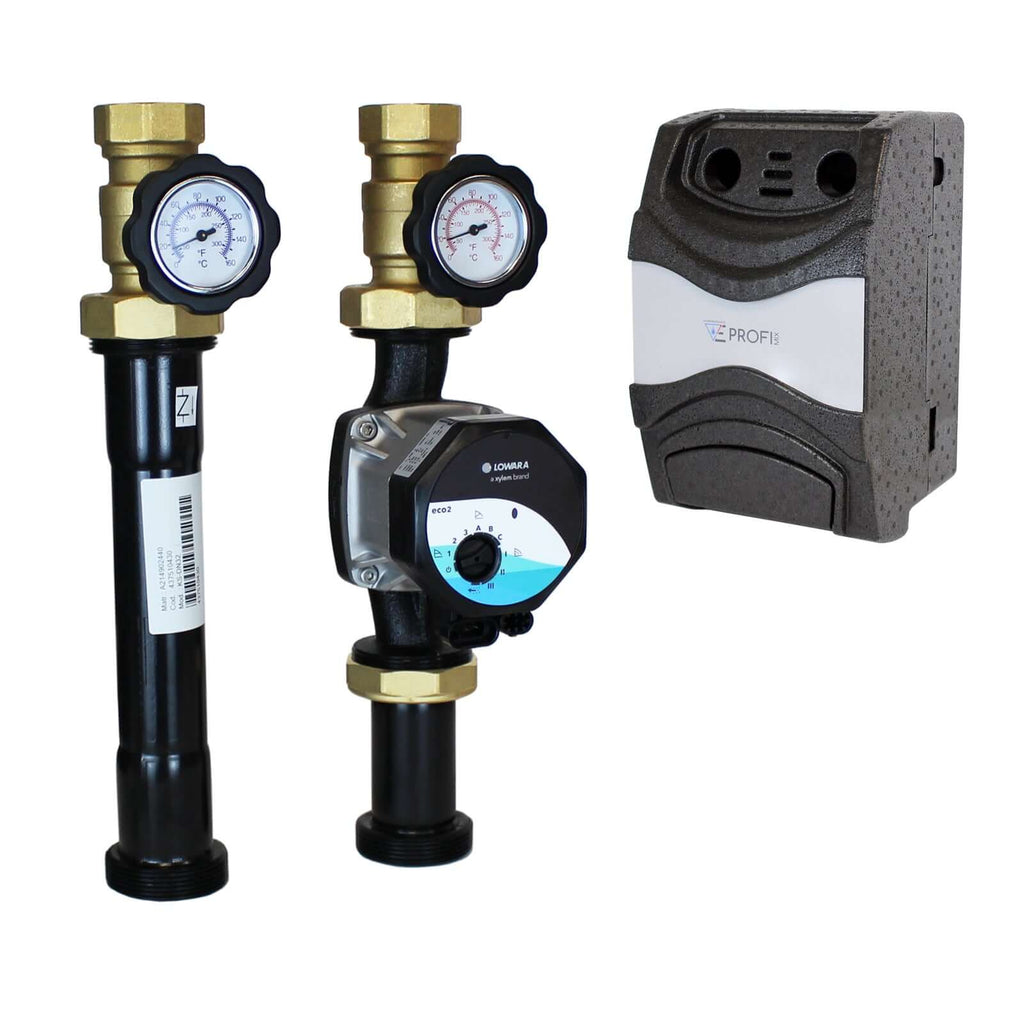

ProfiMix EN003 DN32 direct heating circuit pump group and Lowara eco2 32-8/180 high efficiency pump

The ProfiMix EN003 pump group is a ready-to-install, professional pump group for heating circuits such as underfloor heating, wall heating, radiators, etc. with a built-in shut-off ball valve. The flow and return flow can easily be reversed from right to left. In the upper part of the pump group there are flat-sealing shut-off valves (1 1/4" IG) with built-in thermometers (0-160°C) and an integrated gravity brake.

If the pump group is installed individually, a wall bracket can be screwed onto the shut-off valves (not included). Maintenance or replacement of the circulation pump is very easy without having to drain the system.

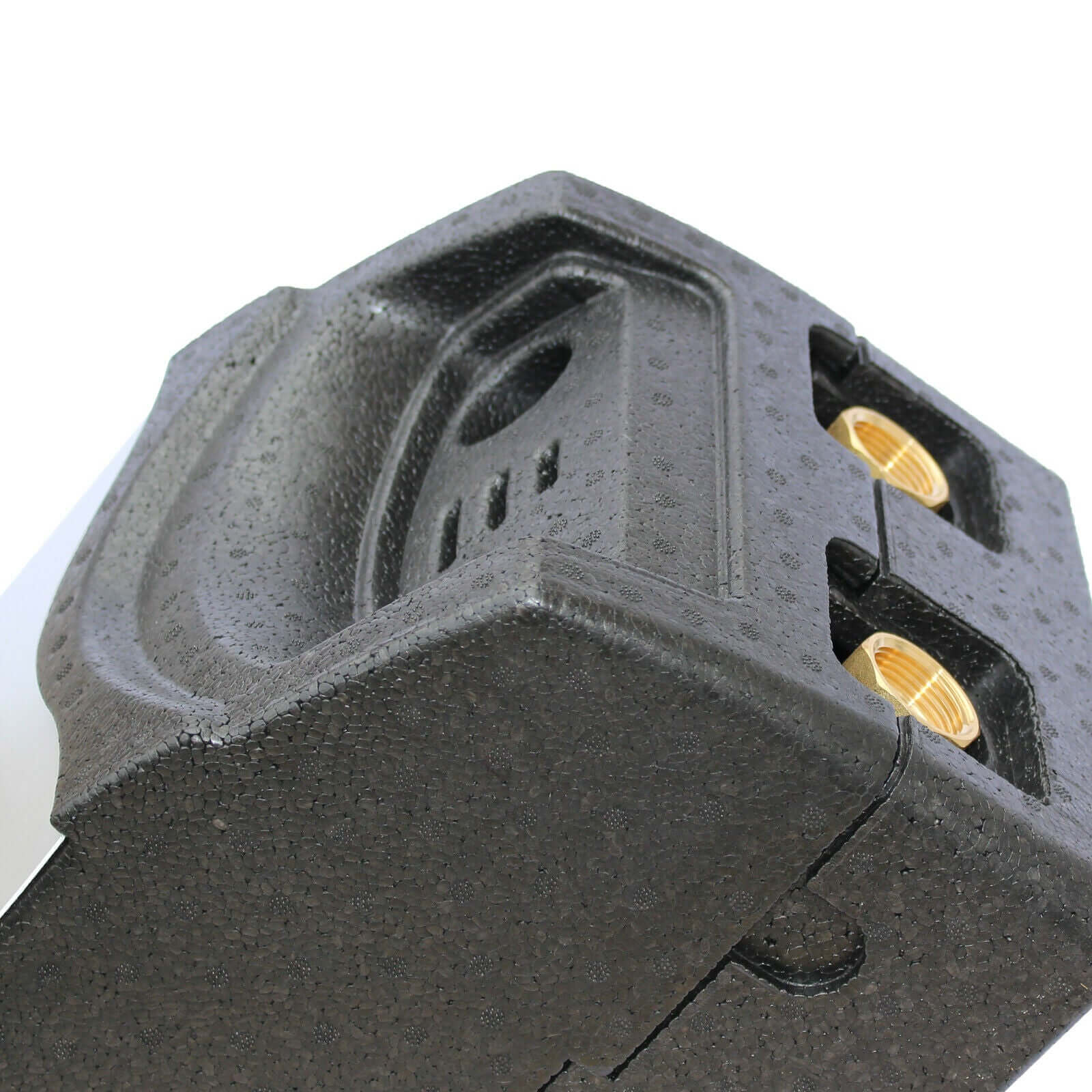

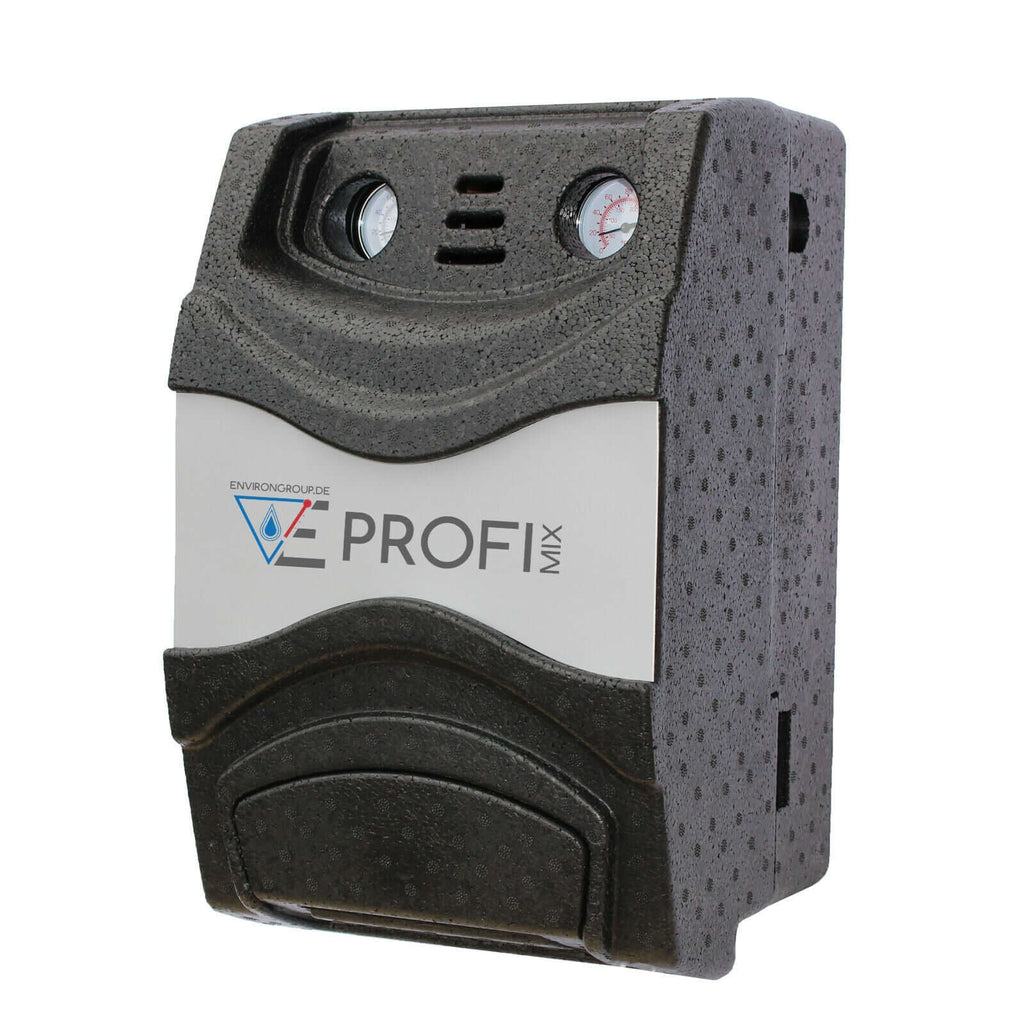

The center distance is 125mm and the dimensions of the lower connections are 2" AG for possible direct installation on a conventional distribution beam. The sophisticated thermal insulation made of EPP, with a vapor barrier system, ensures an optimal climate inside the insulation so that no heat build-up occurs.

With a simple movement of the hand it is possible to switch from heating mode to cooling mode. If several pump groups from the ProfiMix series are used, the individual insulation elements together with the distributor bar form an elegant, perfect unit.

Technical Details
▸ Max. temperature: 110°C
▸ Min. temperature: 10°C

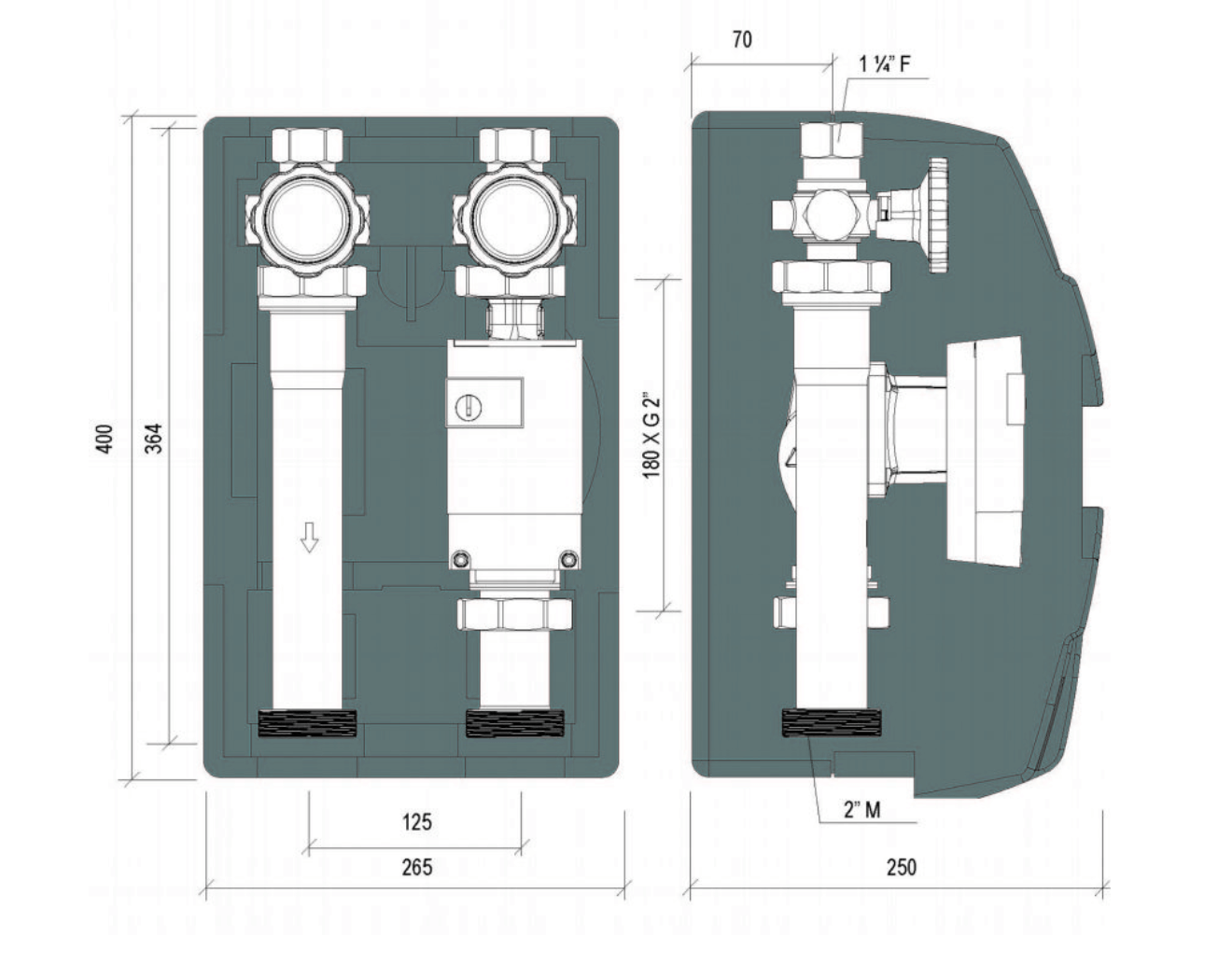

▸ Dimensions: 400 x 265 x 250 mm
▸ Axle distance: 125mm
▸ Nominal size: DN 32 - 2”
▸ Consumer connections: 1 1/4" IG
▸ System connections: 2" AG
▸ Max pressure: 6 bar
▸ Medium: Usable liquids: water, glucol solutions (glucol max 50%)
▸ Pump mounting length: 180mm
▸ Pump type: Lowara eco2 32-8/180 high-efficiency pump
▸ Power supply: 230V
▸ Insulation material: EPP
▸ Thermometer scale: 0-160°C
▸ Max temperature: 120°C
▸ built-in check valve
▸ Insulation material: EPP 40 g/l
▸ Sealing set: EPDM
▸ Body material of the heating circuit station: brass

✓ ProfiMix EN003 DN32 direct heating circuit pump group and Lowara eco2 32-8/180 high-efficiency pump

Manufacturer information:

ENVIRON Energie- und Umwelttechnik GmbH & Co. KG

Robert-Bosch-Straße 9

78048 Villingen-Schwenningen

Phone: +49 7705 977 5803

E- Mail: info@environgroup.de
Website: https://environ-solutions.de/
