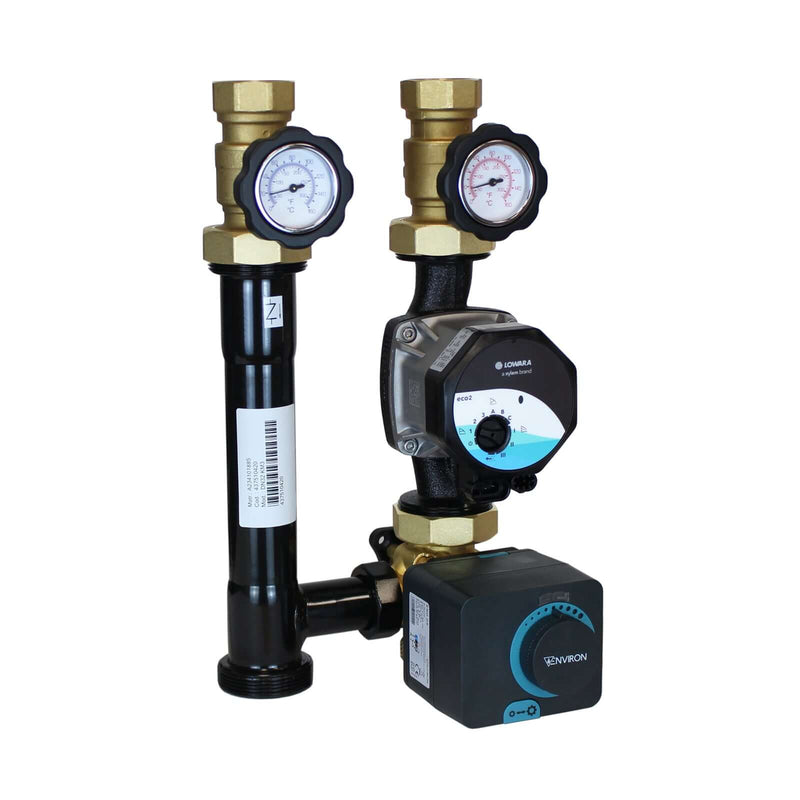

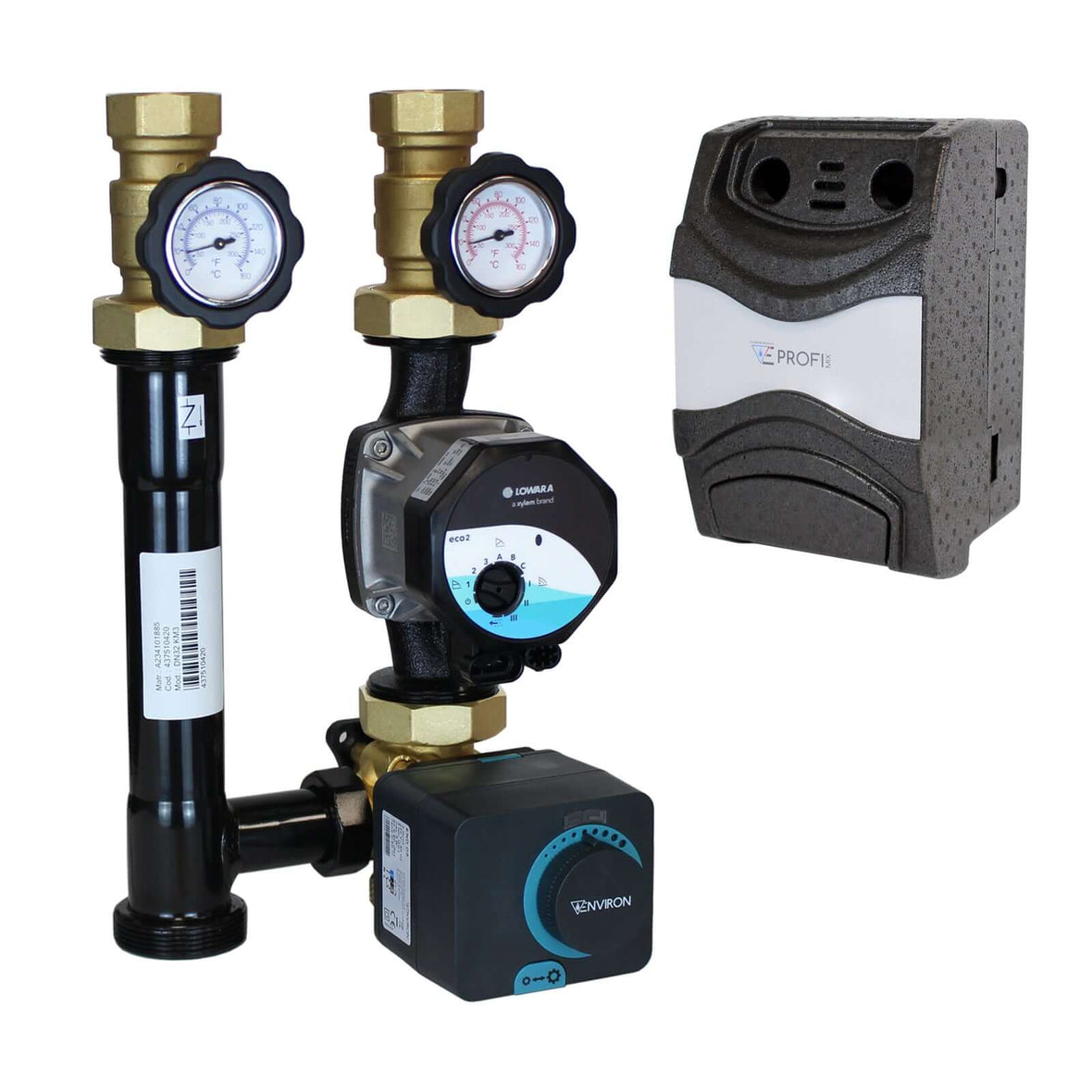

The PROFI MIX EN001 pump group is a ready-to-install, professional pump group for heating circuits such as underfloor heating, wall heating, radiators, etc. with a built-in three-way mixer made of brass and an Environ electric actuator.

No pump is installed in this display. In the upper part of the pump group there are flat-sealing shut-off valves (1''1/4 IG) with built-in thermometers (0-160°C) and an integrated gravity brake in the flow line. If the pump group is installed individually, a wall bracket can be screwed onto the shut-off valves (not included in delivery). Maintenance or replacement of the circulation pump is very simple, without having to drain the system.

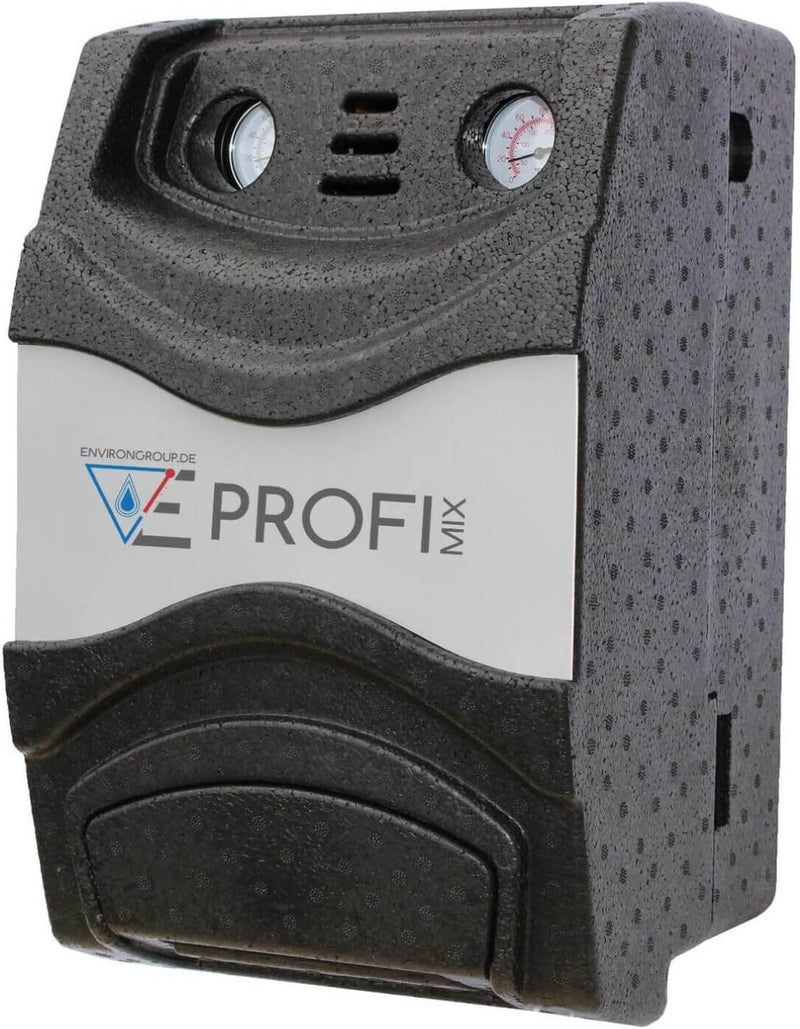

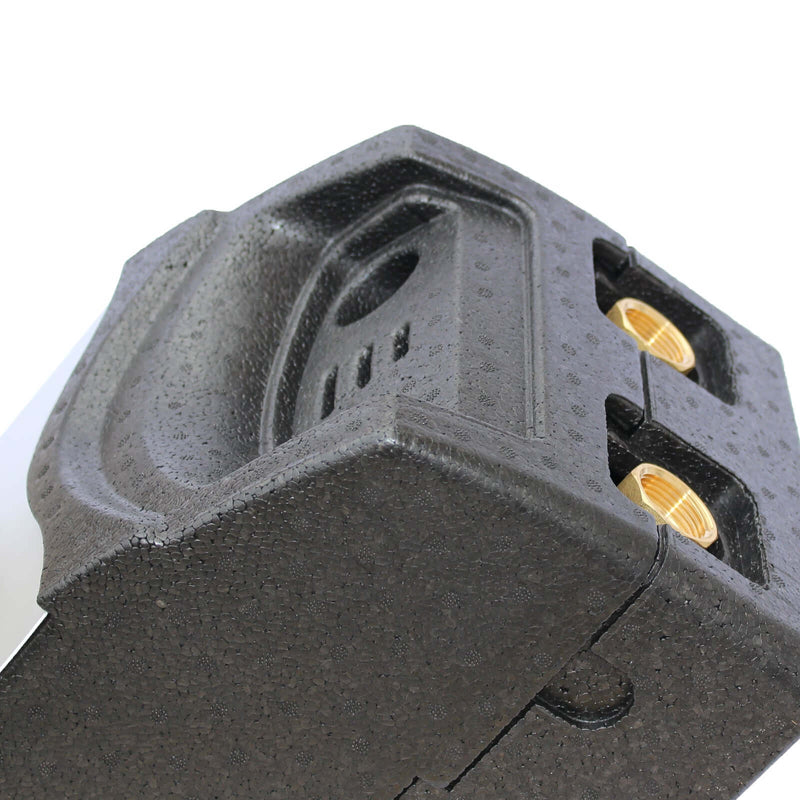

The center distance is 125mm and the dimensions of the lower connections are 2'' AG for possible direct installation on a conventional distribution bar. The sophisticated thermal insulation made of EPP, with a vapor barrier system, ensures an optimal climate inside the insulation so that no heat build-up occurs. With a simple movement of the hand, it is possible to switch from heating mode to cooling mode. If several pump groups from the PROFI MIX series are used, the individual insulation elements together with the distribution bar create an elegant, perfect unit.

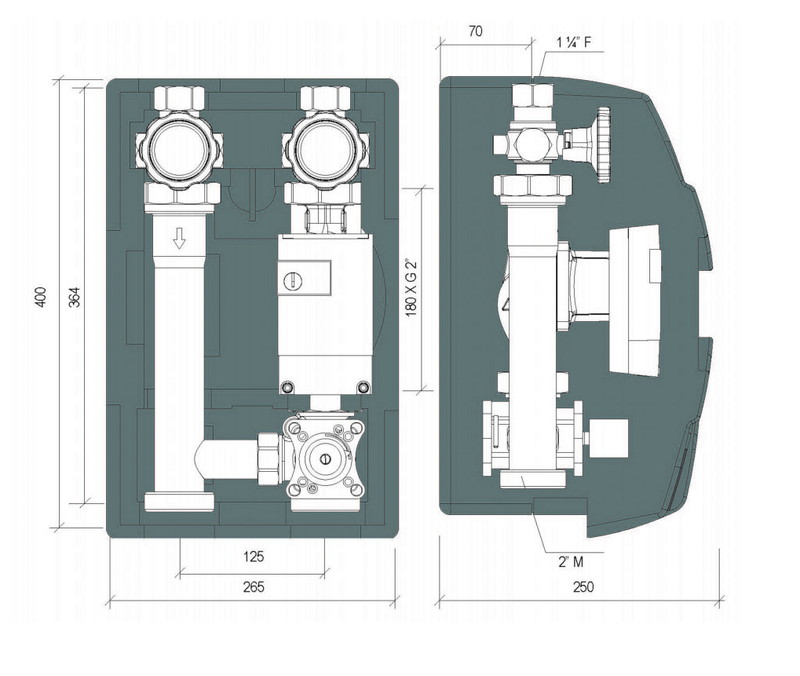

▸ Dimensions: 295 x 280 x 450 mm
▸ Axle distance: 125mm
▸ Nominal size: DN 32
▸ Connections: 1''1/4 IG x 2'' AG
▸ Power: 55.8 kW
▸ Nominal flow rate: 2400 l/h
▸ Max pressure: 6 bar
▸ Medium: Usable liquids: water, glucol solutions (glucol max 50%)
▸ Pumps with a DN32 thread (2") and an overall length of 180mm can be installed
▸ Insulation material: EPP
▸ Thermometer scale: 0-160°C
▸ Max temperature: 95°C
▸ built-in check valve ✓
▸ Insulation material: EPP 40 g/l
▸ Sealing set: EPDM
▸ Body material of the heating circuit station: Brass / cataphoresis coated steel


Technical data Lowara eco2 32-8/180 high efficiency pump:

▸ Max. system pressure 10 bar
▸ Electrical connection 200 – 240 Volt, 50 / 60 Hertz
▸ Permissible pumped media: Heating water VDI 2035
▸ Water/glycol mixtures*
▸ Permissible temperature range -10 °C** to +110° C
▸ Power consumption: 13.2 – 60 watts
▸ Motor protection class IP 44
▸ Insulation class F
