The ProfiMix EN002 pump group is a ready-to-install, professional pump group made in Germany for heating circuits such as underfloor heating, wall heating, radiators, etc. with a thermostatic mixer from Herz. In the upper part of the pump group there are flat-sealing shut-off valves (1" IG) with built-in thermometers (0-160°C) and an integrated gravity brake in the flow line.

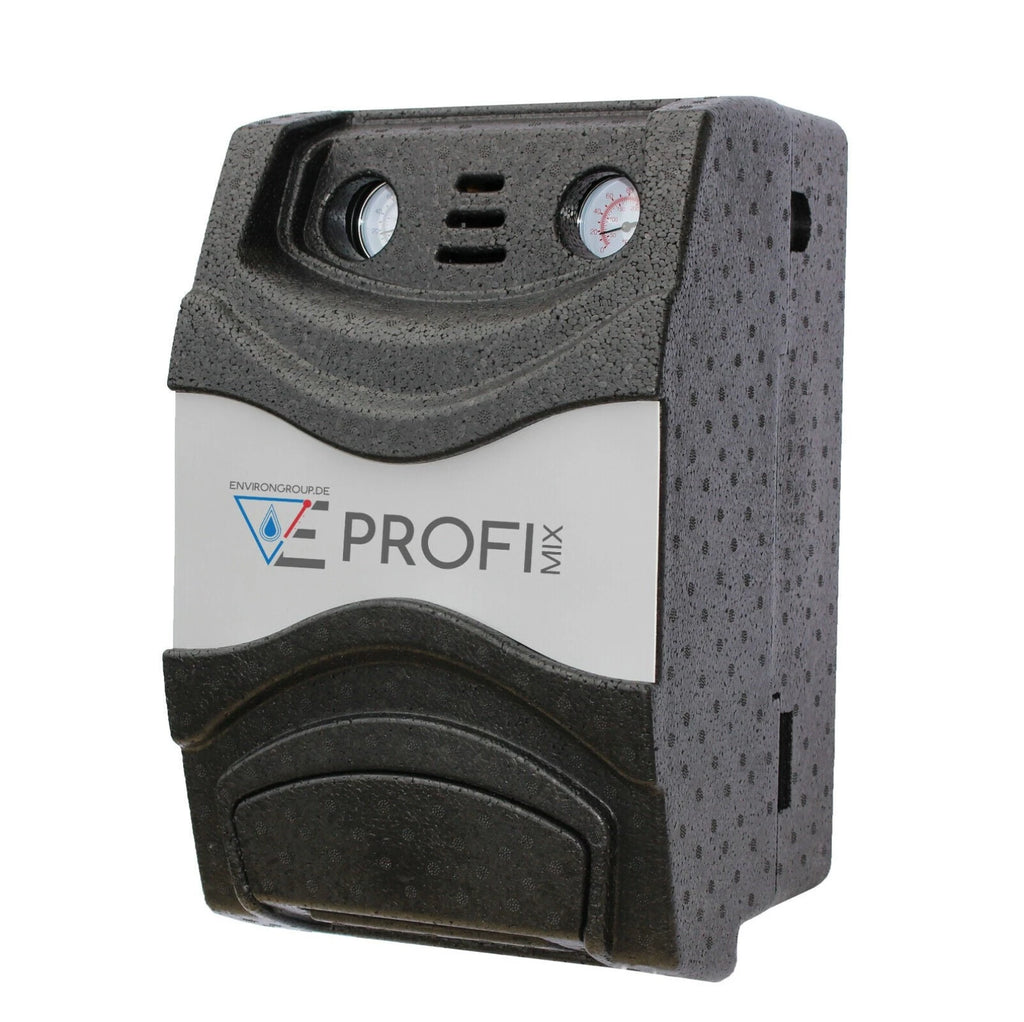

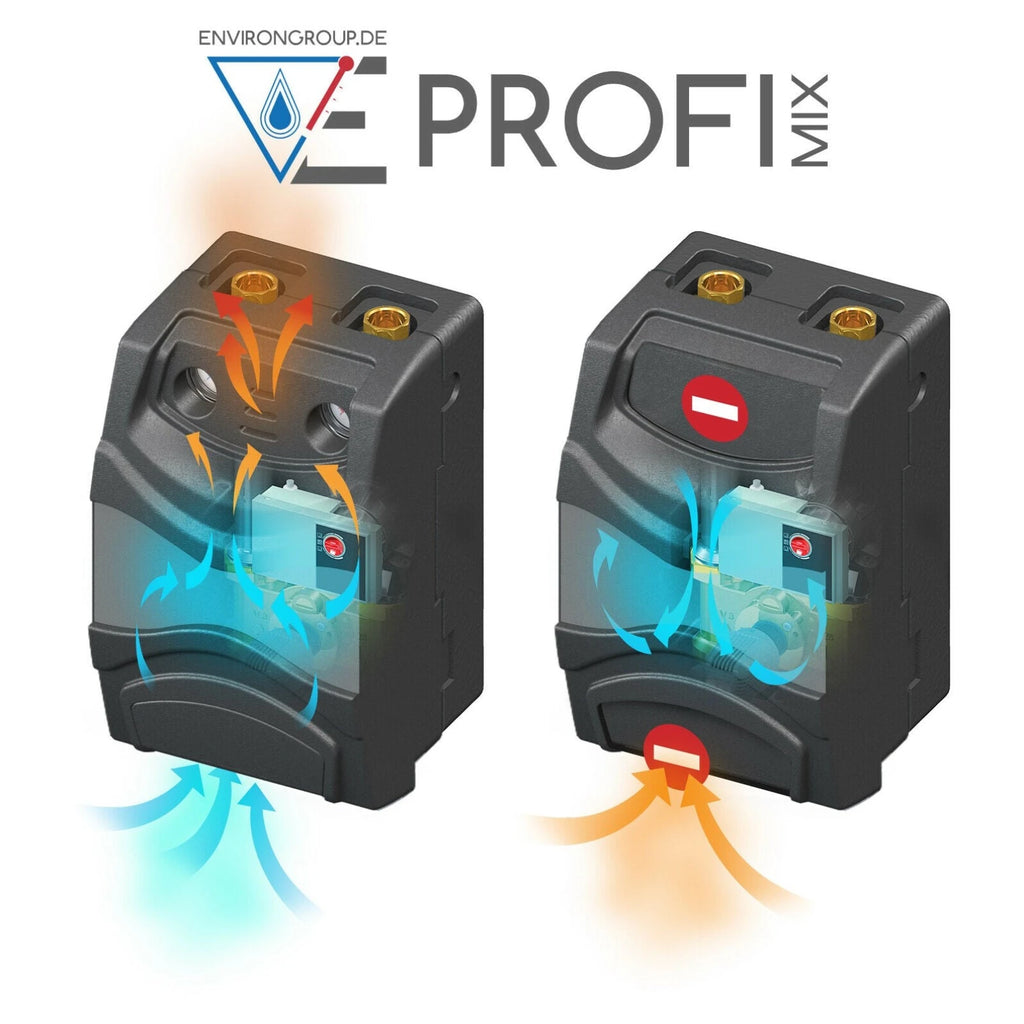

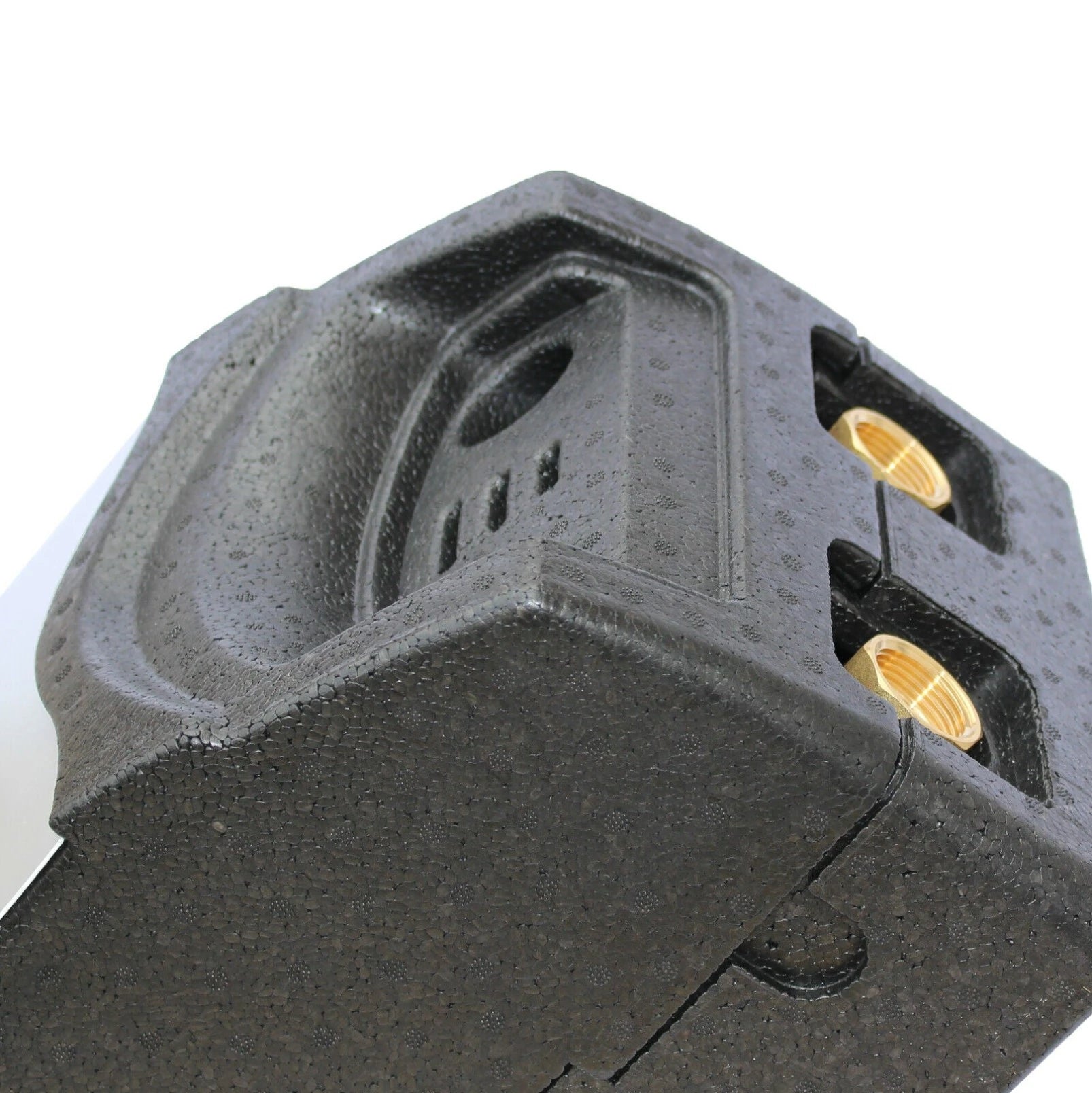

The center distance is 125mm and the dimensions of the lower connections are 1½" AG for possible direct installation on a conventional distribution beam. The sophisticated thermal insulation made of EPP, with a vapor barrier system, ensures an optimal climate inside the insulation so that no heat build-up occurs.
With a simple movement of the hand it is possible to switch from heating mode to cooling mode. If several pump groups from the ProfiMix series are used, the individual insulation elements together with the distributor bar form an elegant, perfect unit.
Technical Details
▸ Flow rate: 1,600 L/H
▸ Max. temperature: 110°C
▸ Min. temperature: 10°C
▸ Kvs: 8.3
▸ Dimensions: 400 x 250 x 240 mm
▸ Axle distance: 125mm
▸ Nominal size: DN 25 - 1”
▸ Thermostat range: 20-50°C
▸ Consumer connections: 1" IG
▸ System connections: 1 1/2" AG
▸ Max pressure: 6 bar
▸ Medium: Usable liquids: water, glucol solutions (glucol max 50%)
▸ Pump mounting length: 180mm
▸ Pump type: Environ EcoStar 25/6 180mm high efficiency pump
▸ Power supply: 230V
▸ Insulation material: EPP
▸ Thermometer scale: 0-160°C
▸ Max temperature: 120°C
▸ built-in check valve ✓
▸ Insulation material: EPP 40 g/l
▸ Sealing set: EPDM
▸ Body material of the heating circuit station: brass / refined quality steel
Technical data Environ EcoStar 25/6 high-efficiency pump:
▸ Max. delivery height: 6m
▸ Max flow rate: 3.6m³/h
▸ Temperature range: -20°C to +110°C
▸ Power consumption: 3W-43W
▸ Operating pressure: max. 10 bar
▸ Electrical connection: 230V/50HZ
▸ Supply voltage: 220~240V, 50/60Hz
▸ Protection level: IP44
▸ Insulation class: H
▸ EMC standard: EN61000-6-1 and EN61000-6-3
scope of delivery

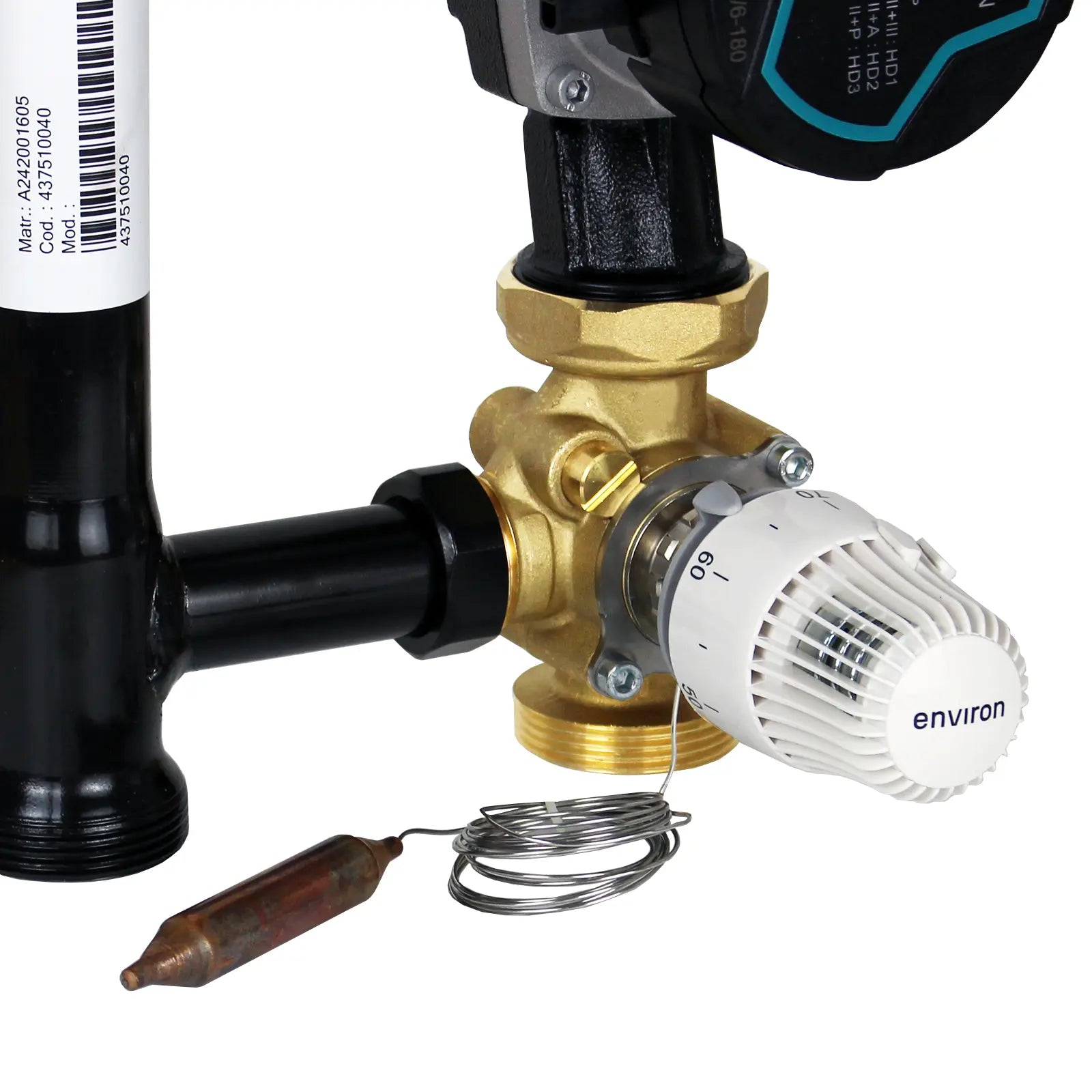

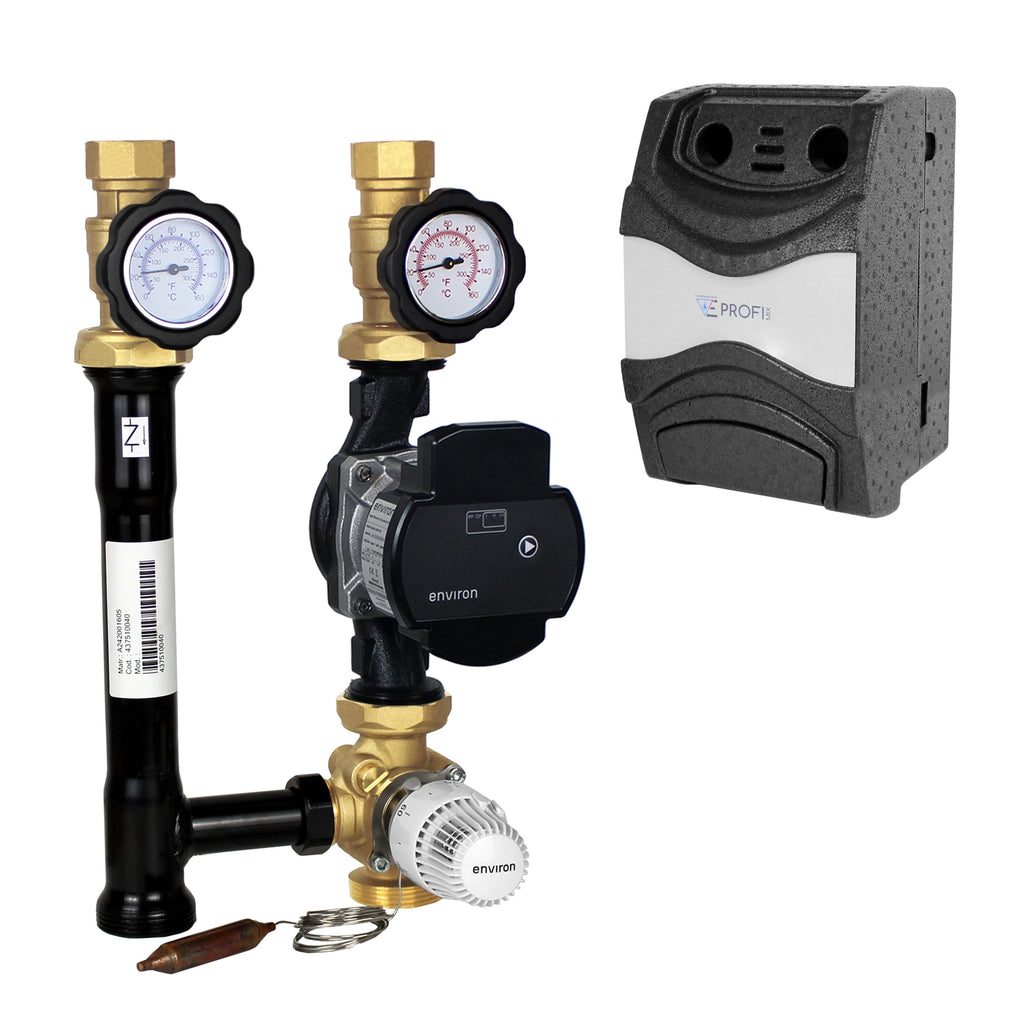

✓ Ready-to-install ProfiMix heating circuit pump group with three-way mixer, capillary thermostat head 20-70°C and Environ Ecostar high-efficiency pump
Manufacturer information:
ENVIRON Energie- und Umwelttechnik GmbH & Co. KG
Robert-Bosch-Straße 9
78048 Villingen-Schwenningen
Phone: +49 7705 977 5803
E- Mail: info@environgroup.de
Website: https://environ-solutions.de/
