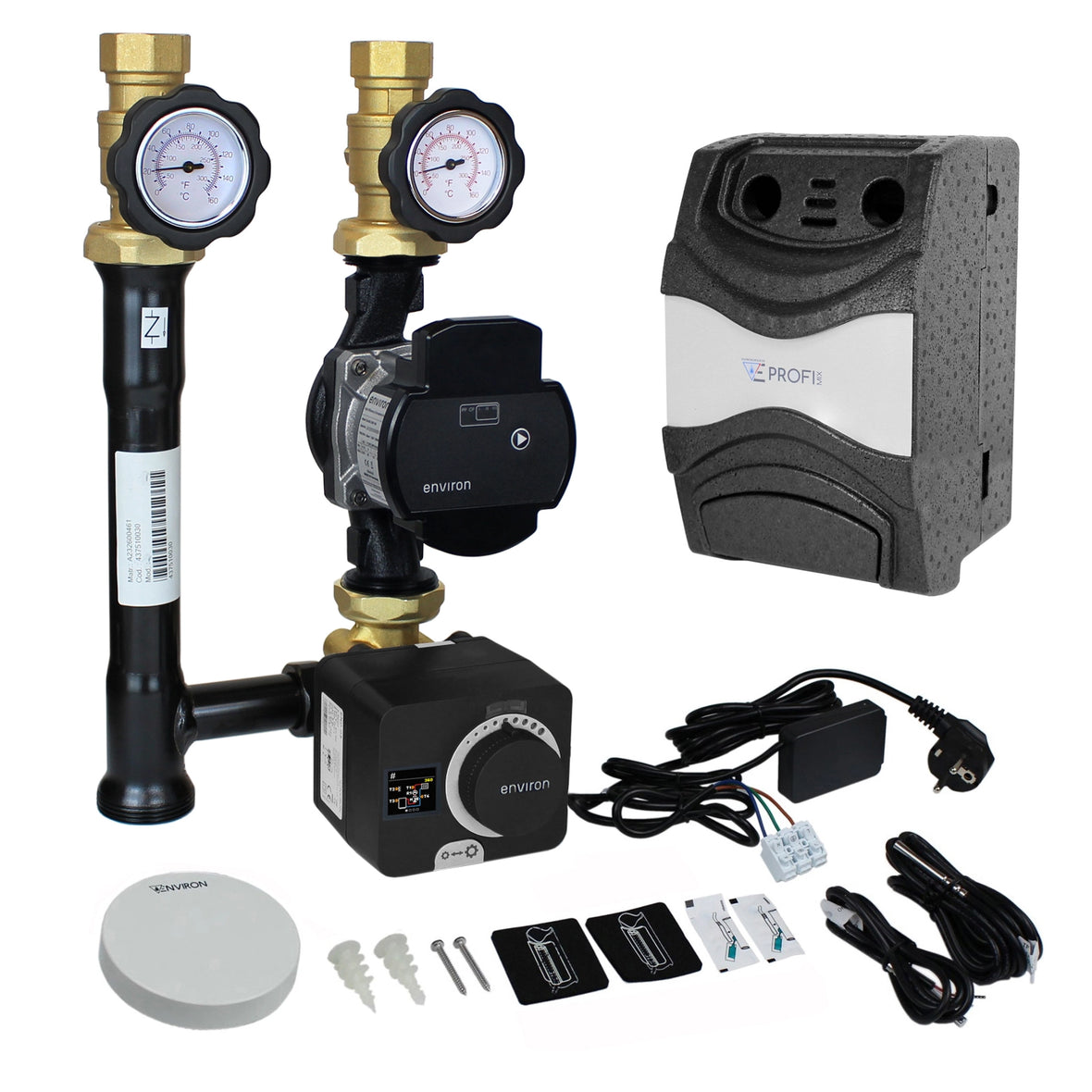

The PROFI MIX EN001 pump group is a ready-to-install, professional pump group for heating circuits such as underfloor heating, wall heating, radiators, etc. with a built-in three-way mixer made of brass and an Environ Clima20+ electric actuator.

In the upper part of the pump group there are flat-sealing shut-off valves (1" IG) with built-in thermometers (0-160°C) and an integrated gravity brake in the flow line. If the pump group is installed individually, a wall bracket can be screwed onto the shut-off valves (not included in delivery). Maintenance or replacement of the circulation pump is very simple without having to empty the system. The center distance is 125mm and the dimensions of the lower connections are 1½" AG for possible direct installation on a conventional distributor bar.

The sophisticated thermal insulation made of EPP, with a vapor barrier system, ensures an optimal climate inside the insulation so that no heat build-up occurs. With a simple movement of the hand, it is possible to switch from heating mode to cooling mode. If several pump groups from the PROFI MIX series are used, the individual insulation elements together with the distributor bar create an elegant, perfect unit.

▸ Flow rate: 1,600 L/H
▸ Max. temperature: 110°C
▸ Min. temperature: 10°C
▸ Kvs: 8.3
▸ Dimensions: 400 x 250 x 240 mm
▸ Axle distance: 125mm
▸ Nominal size: DN 25 - 1”
▸ Consumer connections: 1" IG
▸ System connections: 1 1/2" AG
▸ Max pressure: 6 bar
▸ Medium: Usable liquids: water, glucol solutions (glucol max 50%)
▸ Pump type: high-efficiency pump
▸ Pump mounting length: 180mm
▸ Power supply: 230V
▸ Insulation material: EPP
▸ Thermometer scale: 0-160°C
▸ Max temperature: 120°C
▸ built-in check valve ✓
▸ Insulation material: EPP 40 g/l
▸ Sealing set: EPDM
▸ Body material of the heating circuit station: brass / refined quality steel

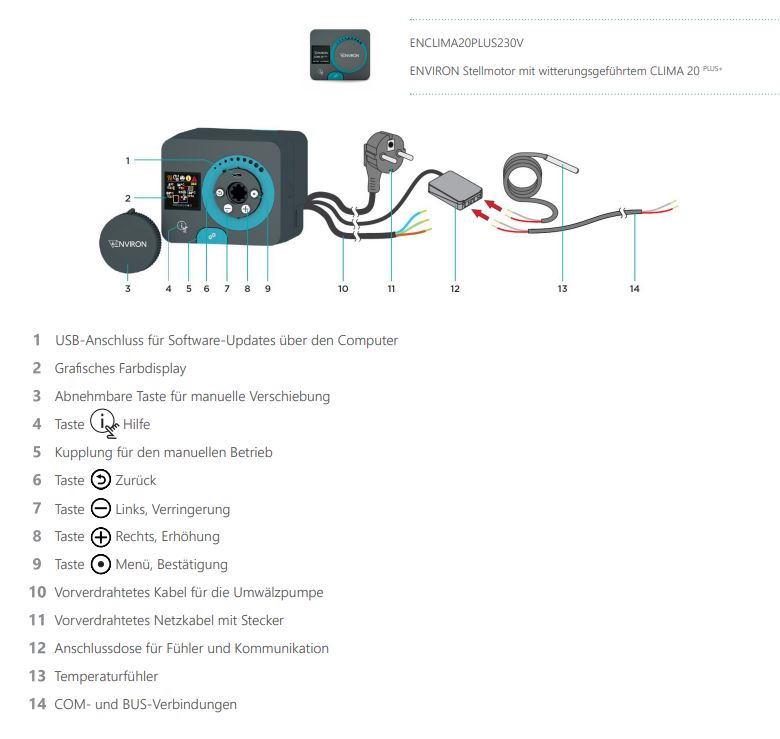

The ENVIRON actuator with weather-controlled CLIMA 20 PLUS+ is a compact actuator with integrated,
weather-controlled heating control.

The values ​​to be set can be programmed easily and intuitively using a keypad located under the rotary knob. The color display shows you which settings you are making and guides you step by step through the necessary settings. It also shows you all the current actions and the set temperatures.

It is compatible with mixers from more than 20 different manufacturers.

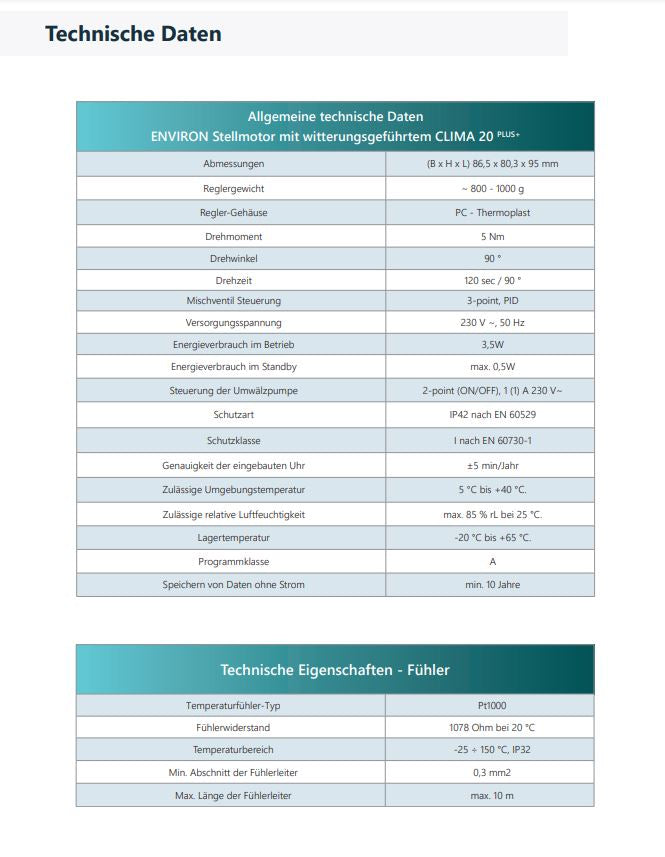

Technical data mixer motor:

▸ Dimensions: (W x H x L) 86.5 x 80.3 x 95 mm
▸ Controller housing: PC - Thermoplastic
▸ Torque: 5 Nm
▸ Angle of rotation: 90 °
▸ Rotation time: 120 sec / 90 °
▸ Mixing valve control: 3-point, PID
▸ Supply voltage: 230 V ~, 50 Hz
▸ Energy consumption during operation: 3.5W
▸ Power consumption in standby: max. 0.5W
▸Control of the circulation pump: 2-point (ON/OFF), 1 (1) A 230 V~
▸ Protection class: IP42 according to EN 60529
▸ Protection class: I according to EN 60730-1
▸ Permissible ambient temperature: 5 °C to +40 °C
▸ Program class: A
▸ Data storage without power: min. 10 years

Technical data Environ EcoStar 25/6 high-efficiency pump:

▸ Max. delivery height: 6m
▸ Max flow rate: 3.6m³/h
▸ Temperature range: -20°C to +110°C
▸ Power consumption: 3W-43W
▸ Operating pressure: max. 10 bar
▸ Electrical connection: 230V/50HZ
▸ Supply voltage: 220~240V, 50/60Hz
▸ Protection level: IP44
▸ Insulation class: H
▸ EMC standard: EN61000-6-1 and EN61000-6-3

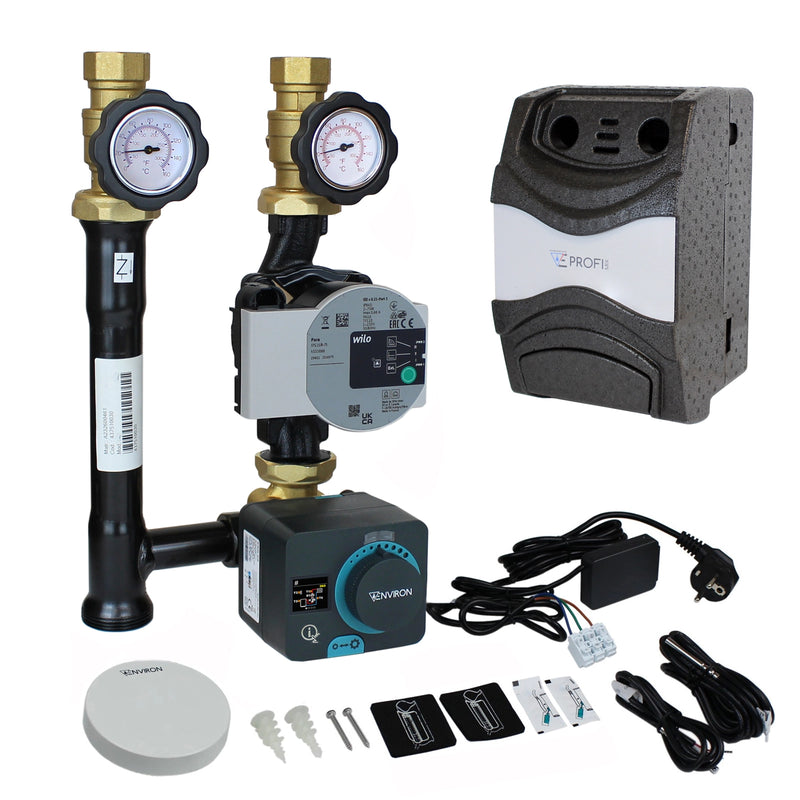

Technical data Wilo Para 25/6:

▸ Max. delivery height: 6m
▸ Max flow rate: 3.6m³/h
▸ Temperature range: -20°C to +110°C
▸ Power consumption: 3W-43W
▸ Operating pressure: max. 10 bar
▸ Installation length: 130 mm
▸ Electrical connection: 230V/50HZ

Technical data Wilo Para STG 25/8.75 130mm:

▸ Max. delivery height: 8.4m
▸ Flow rate max: 4m³/h
▸ Temperature range: -20°C to +110°C
▸ Power consumption: 10W-75W
▸ Operating pressure: max. 10 bar
▸ Pipe connection: DN 25 -> 1" or approx. 33mm
▸ Union: G 1 1/2" (spanner size approx. 53mm)
▸ Pump thread: 1 1/2" or approx. 48mm
▸ Installation length: 180 mm
▸ Electrical connection: 230V/50HZ

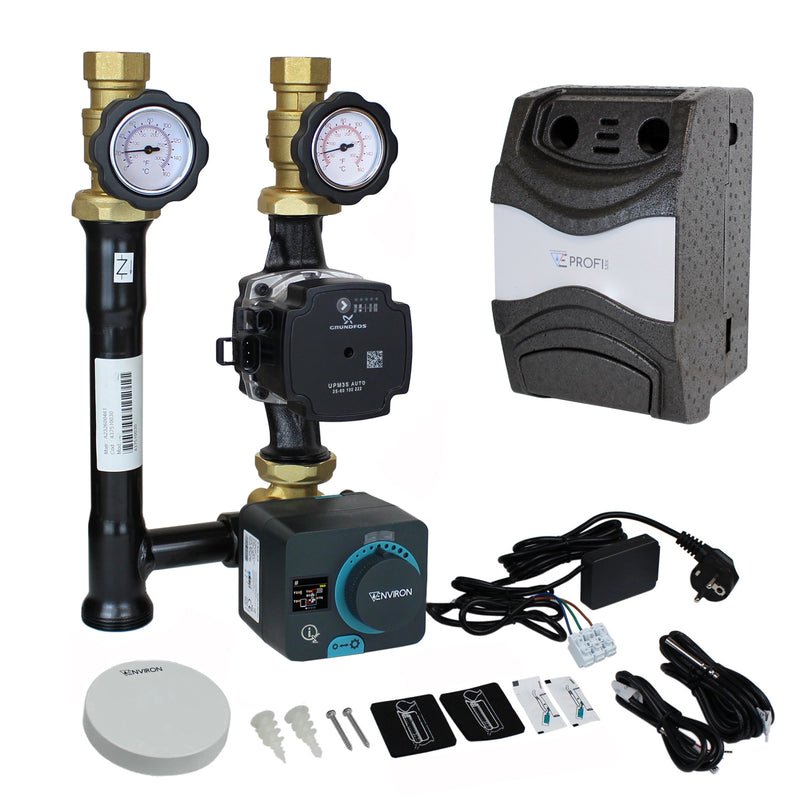

Technical data Grundfos UPM3 Hybrid 25/7 130mm:

▸ Max. discharge head: 7.2m
▸ Max. flow rate: 3.8m³/h
▸ Medium temperature: max. 110°C
▸ Ambient temperature: 0°C...55°C
▸ Operating pressure: max.10 bar
▸ Installation length: 130 mm
▸ Power: 2W-52W
▸ Gear stages: regulated
▸ Electrical connection: 230V/50HZ
▸ Insulation class: F

✓ Ready-to-install ProfiMix heating circuit pump group with three-way mixer, Clima 20+ Plus weather-controlled servomotor and high-efficiency pump
