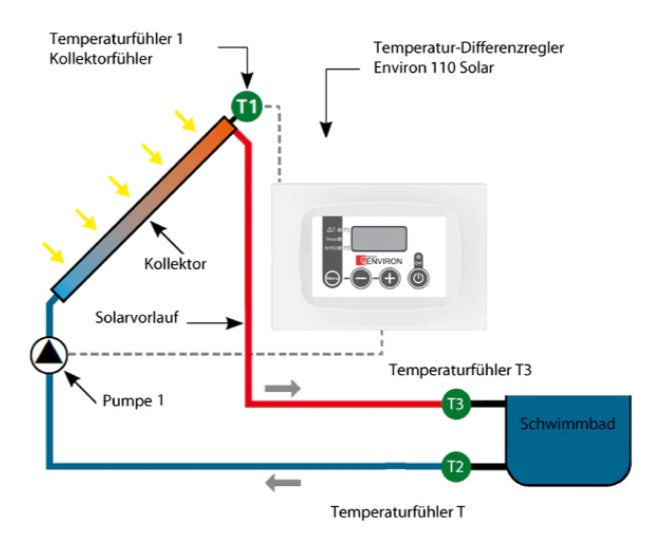

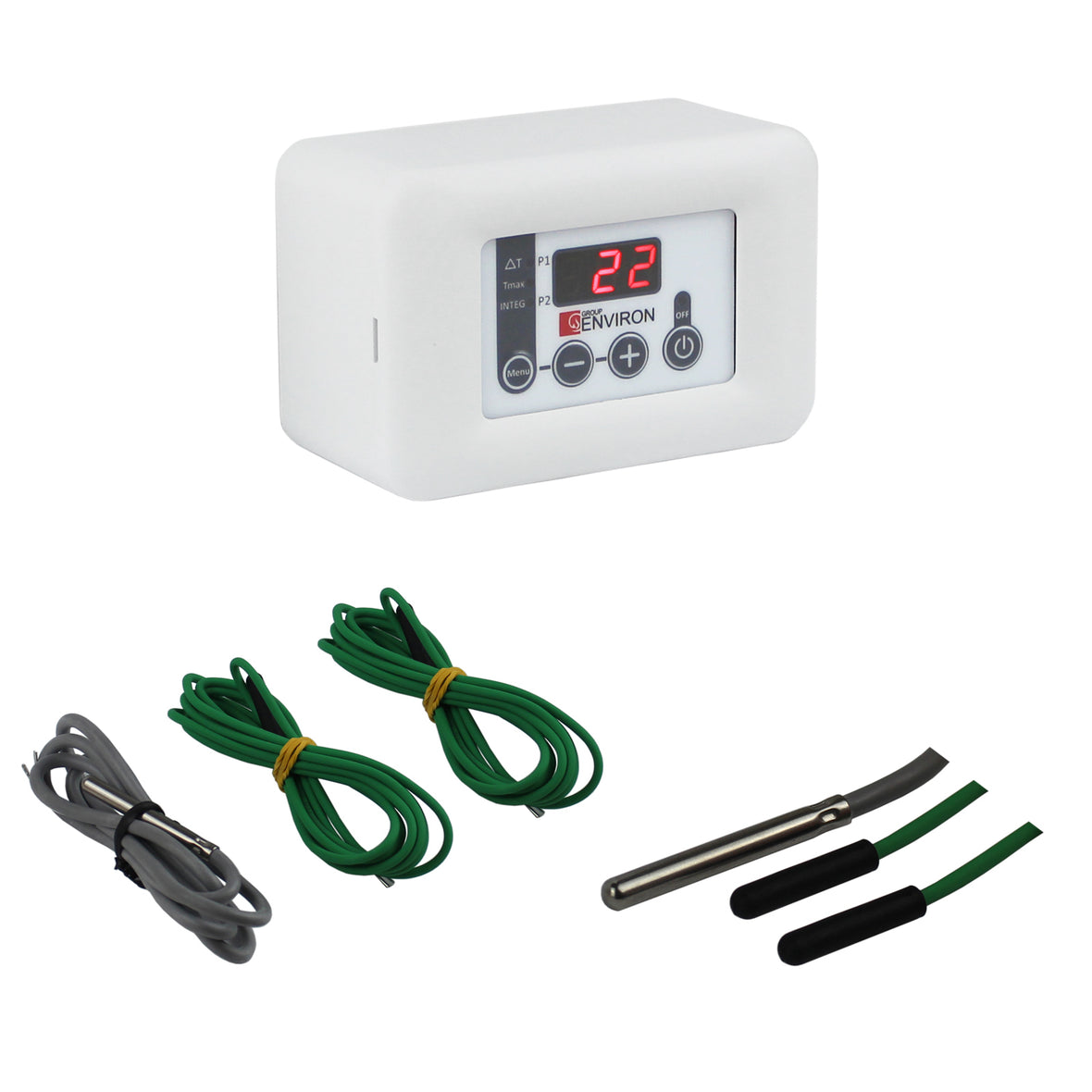

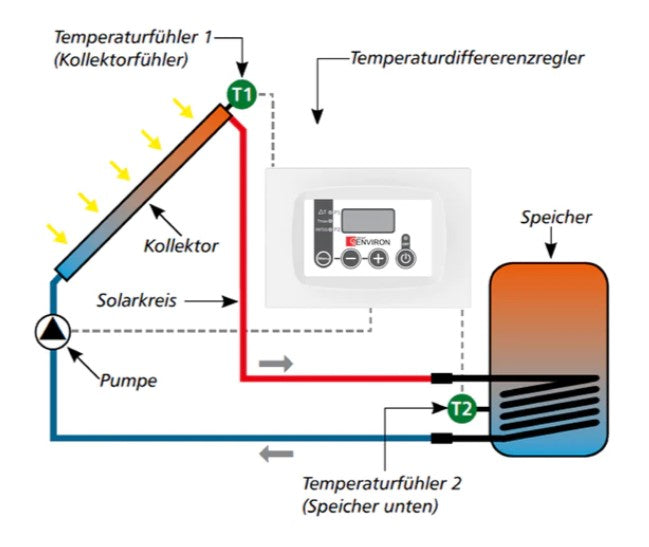

The solar thermal controller Environ TC110 Solar offers everything your thermal solar system needs for safe and long-term system operation. ENVIRON TC110 Solar monitors and controls thermal solar systems with a storage unit. In addition to controlling the solar system, the controller also performs important system monitoring and safety functions. System parameters and measured values ​​can be viewed and changed via the LCD display.

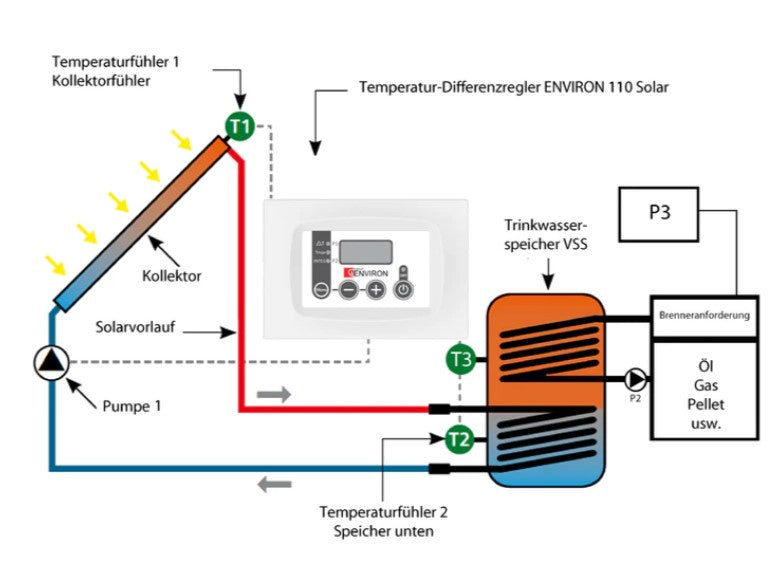

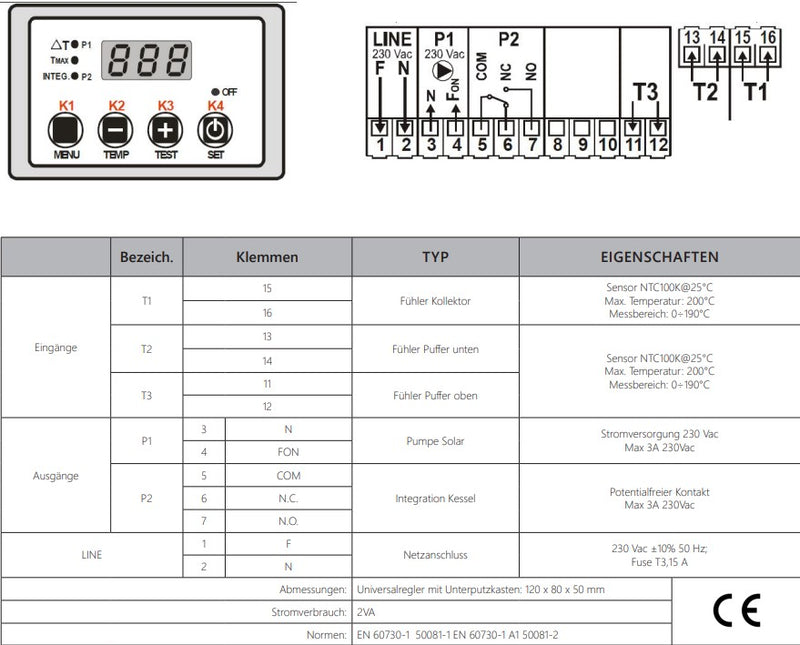

The controller has three inputs for temperature measurement and two outputs for controlling the solar circuit pump and for requesting a second heat generator. The E nviron TC110 Solar's features are complemented by numerous additional functions, such as the maximum storage temperature and frost protection function.
The operational reliability of the system is supported by a well-thought-out error diagnosis. The LCD display ensures that any errors that have occurred are quickly and reliably located and helps to quickly eliminate faults.

Technical characteristics
✓ Clear display
✓ Status display for immediate detection of exceptional conditions
✓ Pump blockage due to collector overtemperature
✓ Frost protection function
✓ incl. 3 temperature sensors
✓ incl. surface-mounted box
✓ Easy installation and operation

• Operating voltage: 230/115 V AC 50/60 Hz
• Fuse: T 3.15 A
• 3 temperature sensors -40 120 /180 °C
• AUX Chrono On/Off inputs
• Outputs 2 max. On/Off 3A 250 V AC

scope of delivery
1x TC110 Solar Controller

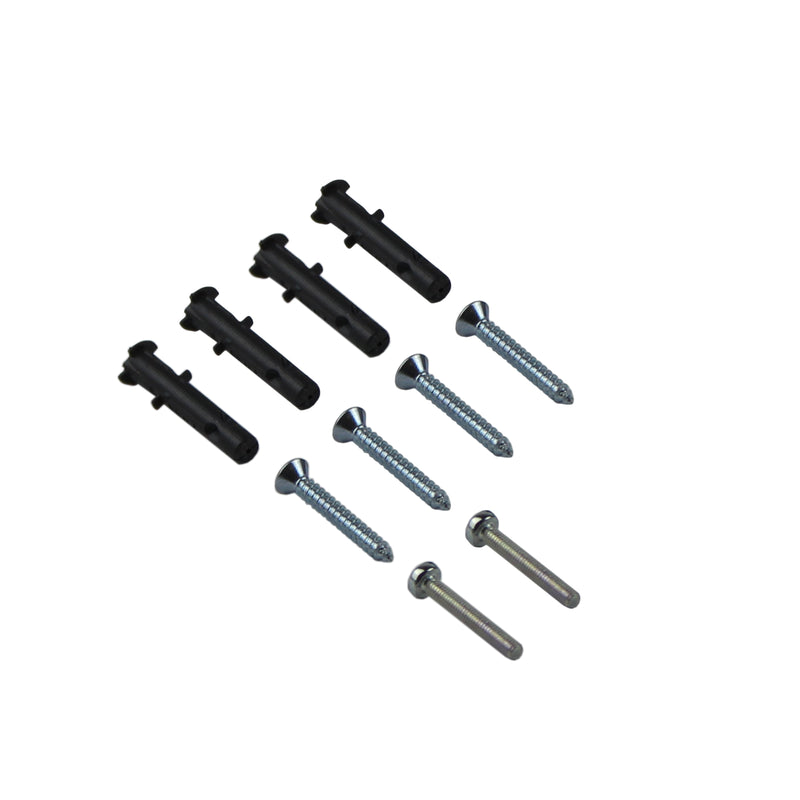

2x mounting screws control

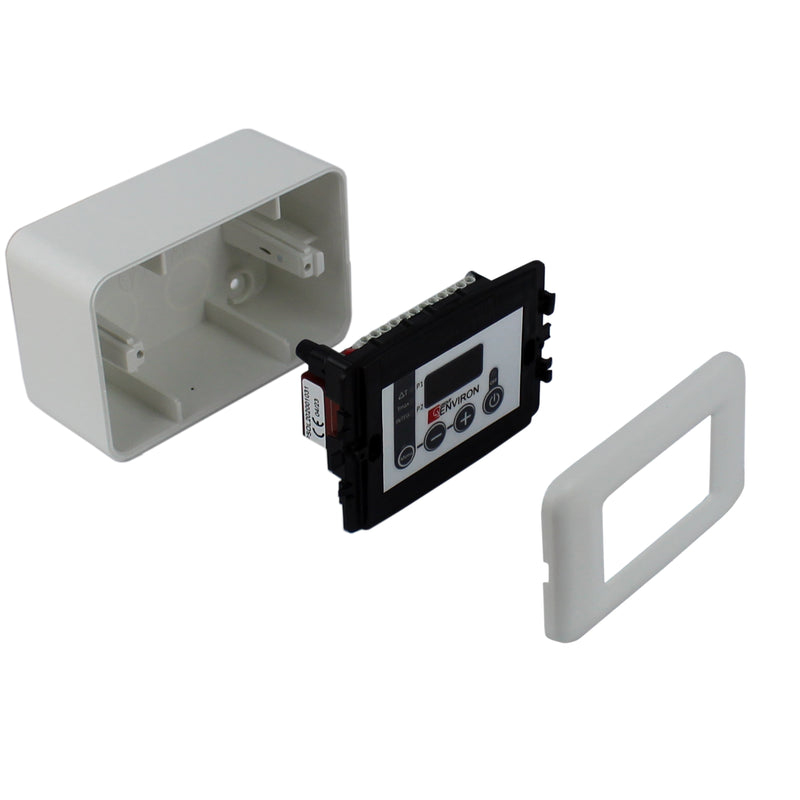

1x flush-mounted box
1x aperture
1x assembly and operating instructions

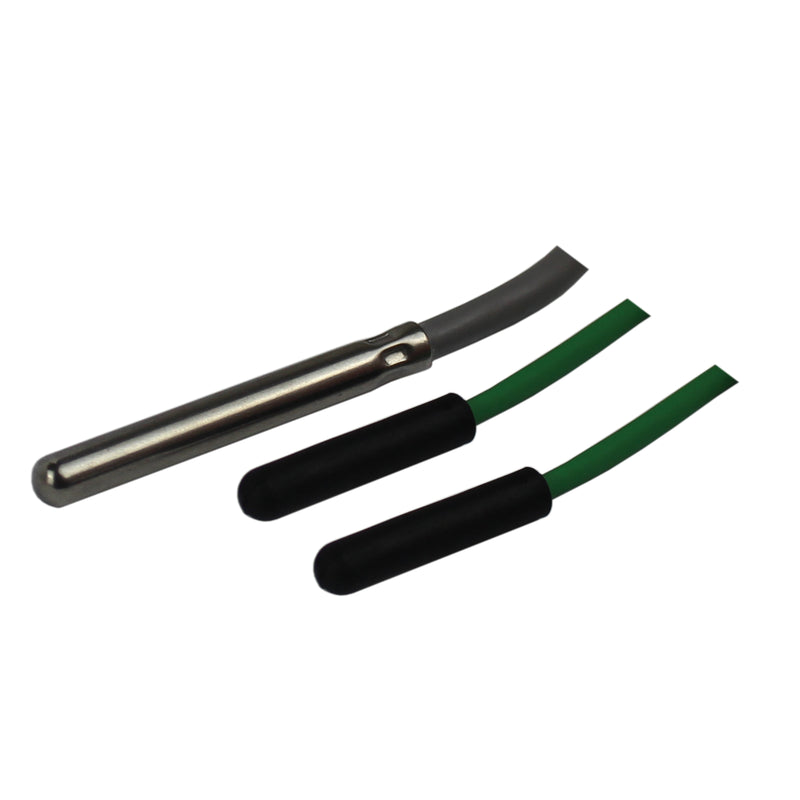

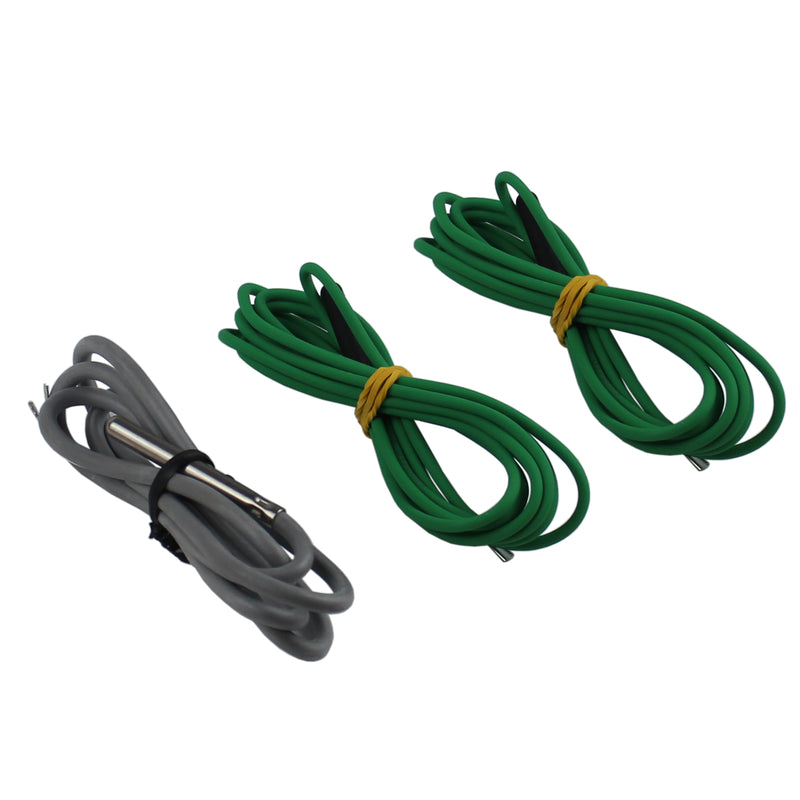

3x sensors NTC10K

Operating instructions: https://environworld.environgroup.de/wp-content/uploads/2022/06/TC-110-SOLAR-Montage-und-Betriebsanleitung.pdf

Manufacturer information:

ENVIRON Energie- und Umwelttechnik GmbH & Co. KG

Robert-Bosch-Straße 9

78048 Villingen-Schwenningen

Phone: +49 7705 977 5803

E- Mail: info@environgroup.de
Website: https://environ-solutions.de/
